Yamaha FZ-16 2015 User Manual

5-19
V
Á
LVULAS Y RESORTES DE V
Á
L VULAS


























2.

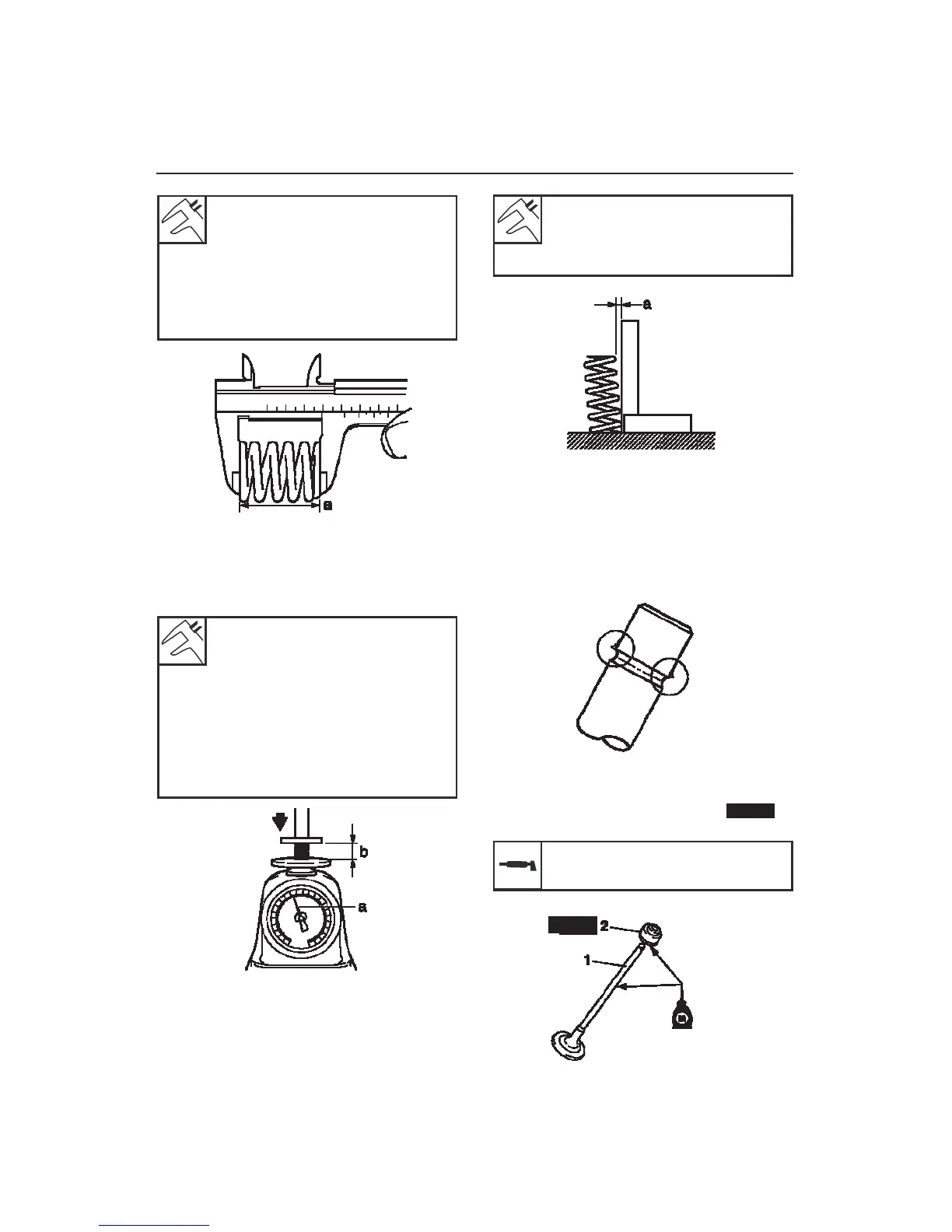

Measure:

Free length (Admission)
39.40 mm
Limit
37.40 mm
Free length (Escape)
39.40 mm
Limit
37.40 mm
Tilting the compression
spring (Admission)
2.5 ° / 1.7 mm
Tilting the compression
spring (Escape)
2.5 ° / 1.7 mm


VALVE ASSEMBLY
The following procedure applies to all
valves and related components.
1. Remove burrs:
•
Compression force of the spring installed in
valve ""
OOS
Replace יו the
valve spring.
•
End of the valve stem
(With an oil stone)

Force compression spring installed
(Admission)
160-184
Force compression spring installed
(Escape)
160-184
Installed length (Admission)
34.50 mm
Installed length (Escape)
34.50 mm

b. Installed length

3. Measure:
•
Tilt the valve spring "to" Out of
Specification
Replace יו
the
valve spring.










2. Lubricate:
•
Valve stem "1"
•Seal valve stem "2"
New
(With the recommended lubricant)

With the recommended lubricant
Molybdenum disulfide oil


New









3. Install:
•
Lower spring seat valve
"1"

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
