COMPONENTES EL
É
CTRICOS




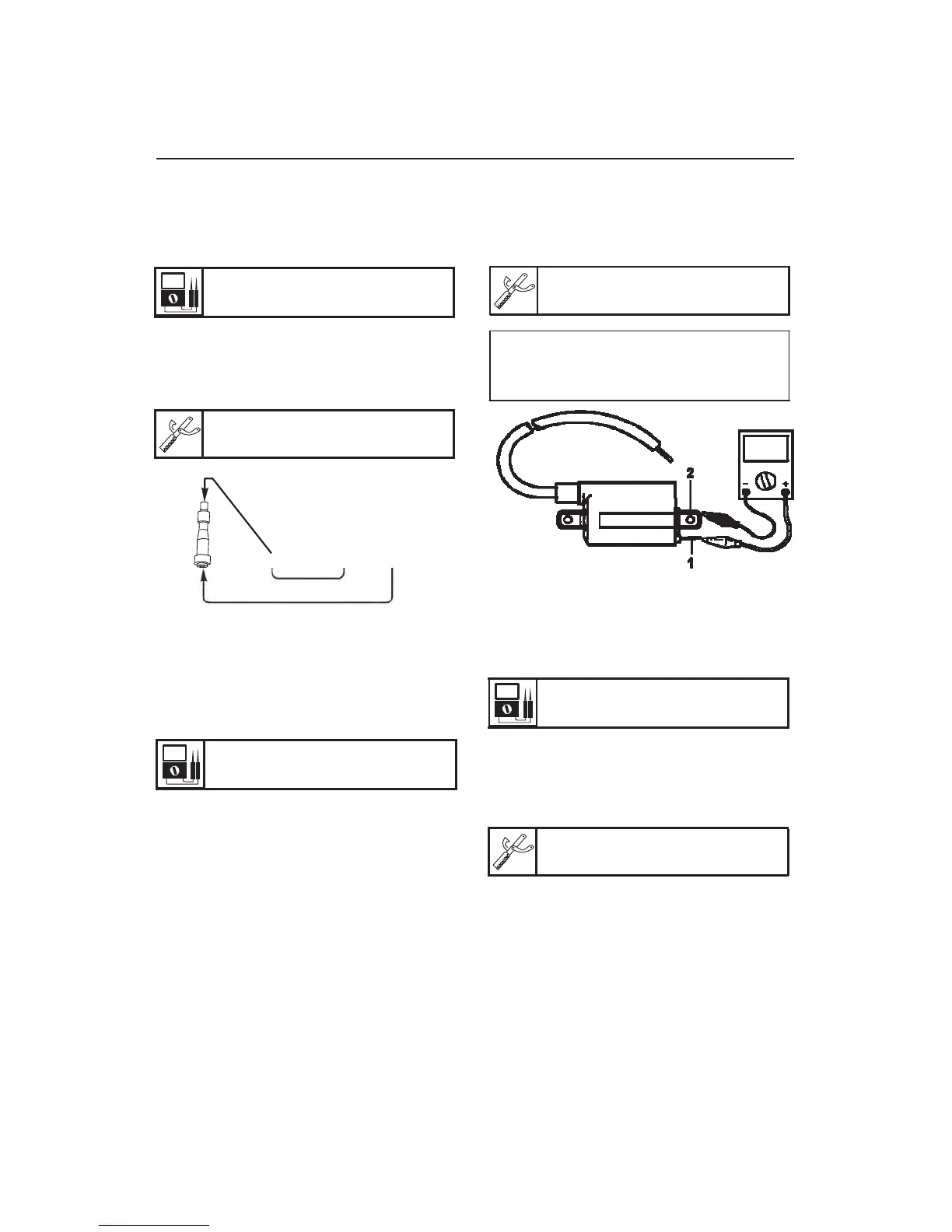

VERIFICATION plug cap

1.Check:
• plug cap resistance
OOS
Replace יו.

Resistance of the plug cap
5.0 kU at 20 ° C (68 ° F)


a. Remove the spark plug cap from the spark
plug wire.
b. Connect the multimeter (Ù × 1k) to the spark
plug cap as shown.

Multimeter













c. Measure the resistance of the spark plug cap.


CHECKING THE IGNITION COIL
1.Check:
• Primary coil resistance
OOS
Replace יו.

Primary coil resistance
Ù 0.32 to 0.48 at 20 ° C (68 ° F)

a. Disconnect connectors of the ignition coil, the
terminals of the ignition coil.
b. Connect the multimeter (Ù × 1) to the ignition
coil, as shown.

Multimeter


• Positive tester probe יו
orange "1"
• Negative tester probe יו
land "2"

c.
Measure the secondary coil resistance.

2.Check:
• secondary coil resistance
OOS
Replace יו.


Secondary coil resistance
KU 5.68-8.52 at 20 ° C (68 ° F)


a. Disconnect the spark plug cap from the
ignition coil.
b. Connect the multimeter (Ù × 1k) to the ignition
coil, as shown.


Multimeter

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
