LVULAS Y RESORTES DE V
Á
L VULAS



2. Delete:
•
Carbon deposits
(From the valve face and valve seat)
3. Check:
•
Valve face
Pitting / wear
Rectify יו
face
valve.
•
End of the valve stem
Mushroom or a larger diameter than the valve
stem to the valve Replace יו.

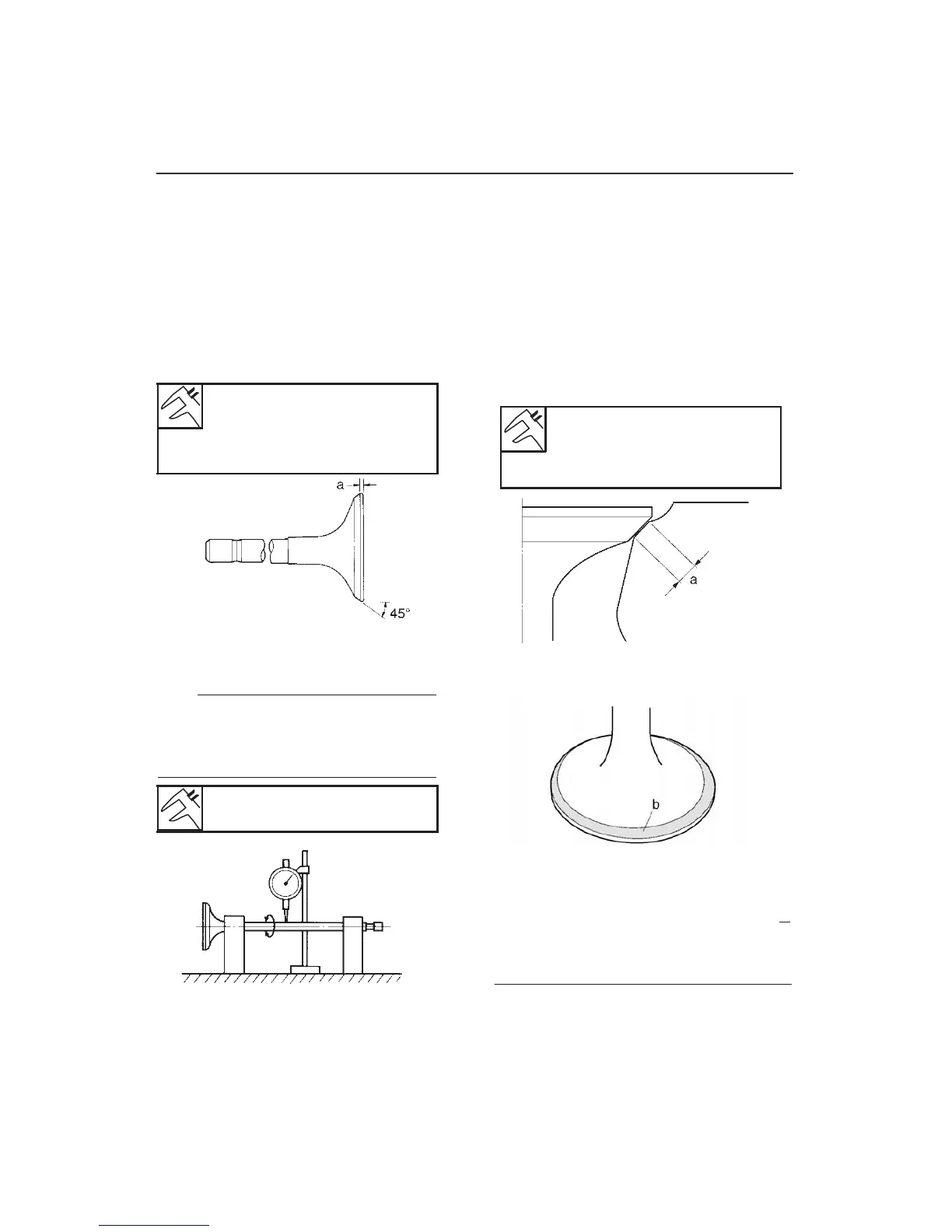

4. Measure:
•
Thickness D of the valve margin "a"
OOS
Replace יו
valve.

Thickness of the valve margin
D (Admission)
From 0.50 to 0.90 mm
Thickness of the valve margin
D (Escape)
From 0.50 to 0.90 mm)










5. Measure:
•
Deformation of the valve stem
OOS
Replace יו
the
valve.
NOTE:
•When installing a new valve, always replace
the valve guide.
•If the valve is removed or replaced, always
replace the stem seal
the valve.

Limit deformation of the
valve stem
0,010 mm

CHECKING THE VALVE SEATS
The following procedure applies to all valves
and valve seats.
1. Delete:
•
Carbon deposits
(From the valve face and valve seat)
2. Check:
•
Valve Seat
Pitting / wear
Replace יו
the butt.
3. Measure:
•
Width of the valve seat C "to" Out of
specification
Replace יו
the
butt.

Width of the valve seat
C
(Admission)
0.90-1.10 mm
Width of the valve seat
C
(Escape)
0.90-1.10 mm)


a.Instale valve in the cylinder head.



b. Pressing the valve through the valve guide and
the valve seat to make a clear print.
c. Measure the width of the valve seat.
NOTE:
When the valve seat and the face of the
valve have been in contact with each other, the
blue dye has been removed.
