Yamaha FZ-16 2015 User Manual

1-2
CARACTER
Í
STICAS




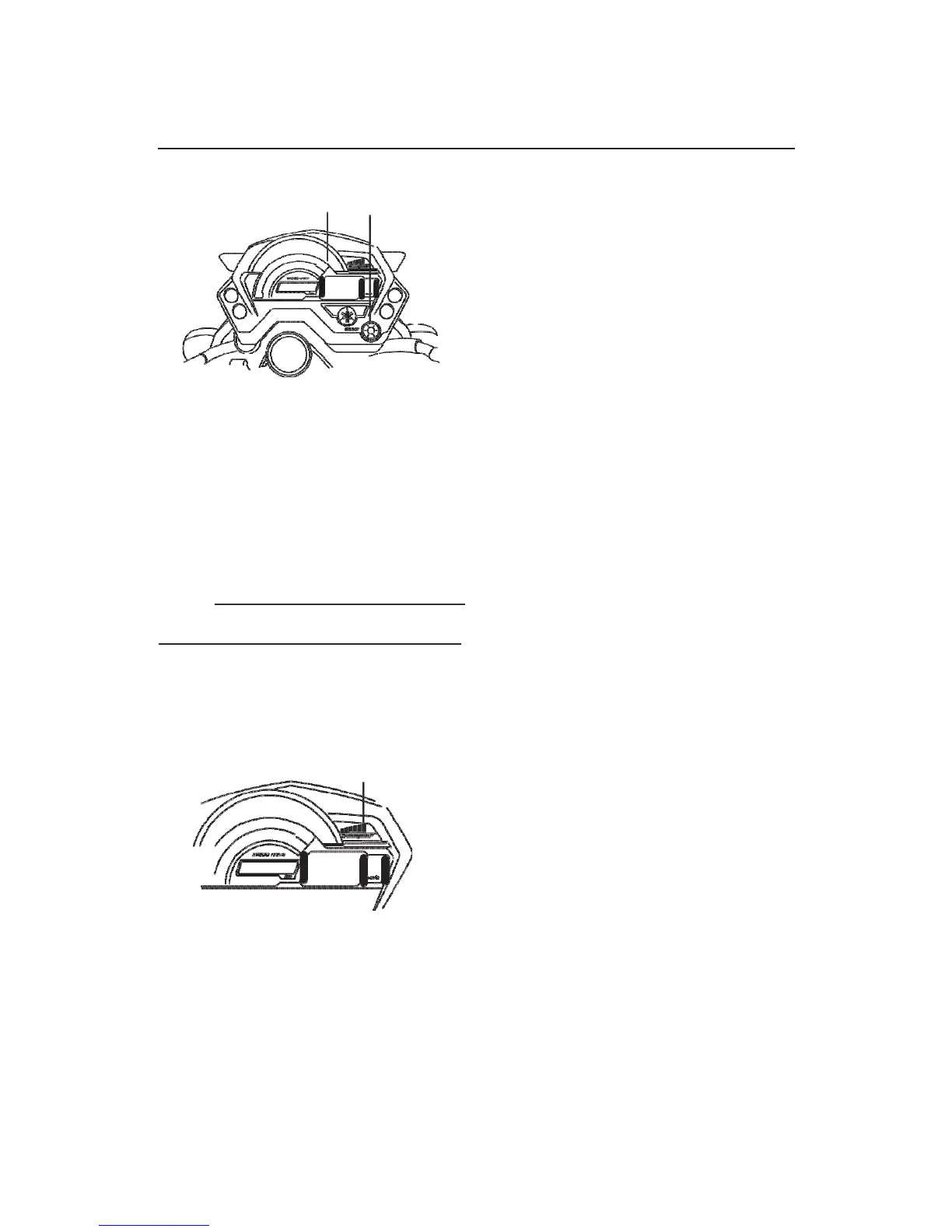

Multi-function display

1 2








SELECT




1. Multi-function
display
2. "Select" button (select)

The Multi-function display is
equipped with the following:
• A speedometer (which shows the speed)
• An odometer (which shows the total distance
traveled)
• An odometer (which shows the distance
traveled since it was last reset in)
• A fuel gauge (which indicates the level of fuel
available in the fuel anque)
NOTE
Be sure to turn the key to "ON" before using
the "SELECT" button.

MODE odometer and tripmeter.
A light pulse (less than one second) in the
"SELECT" button switches the display between
odometer and tripmeter.

Fuel meter
1








1. Fuel meter
The fuel gauge indicates the amount of fuel in the
fuel tank. The sec com ments fuel meter
disappear towards "E" (Empty) as the fuel level
decreases. When the last segment fuel gauge
starts flashing, refuel as soon as possible.

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
