Yamaha FZ-16 2015 User Manual

4-38

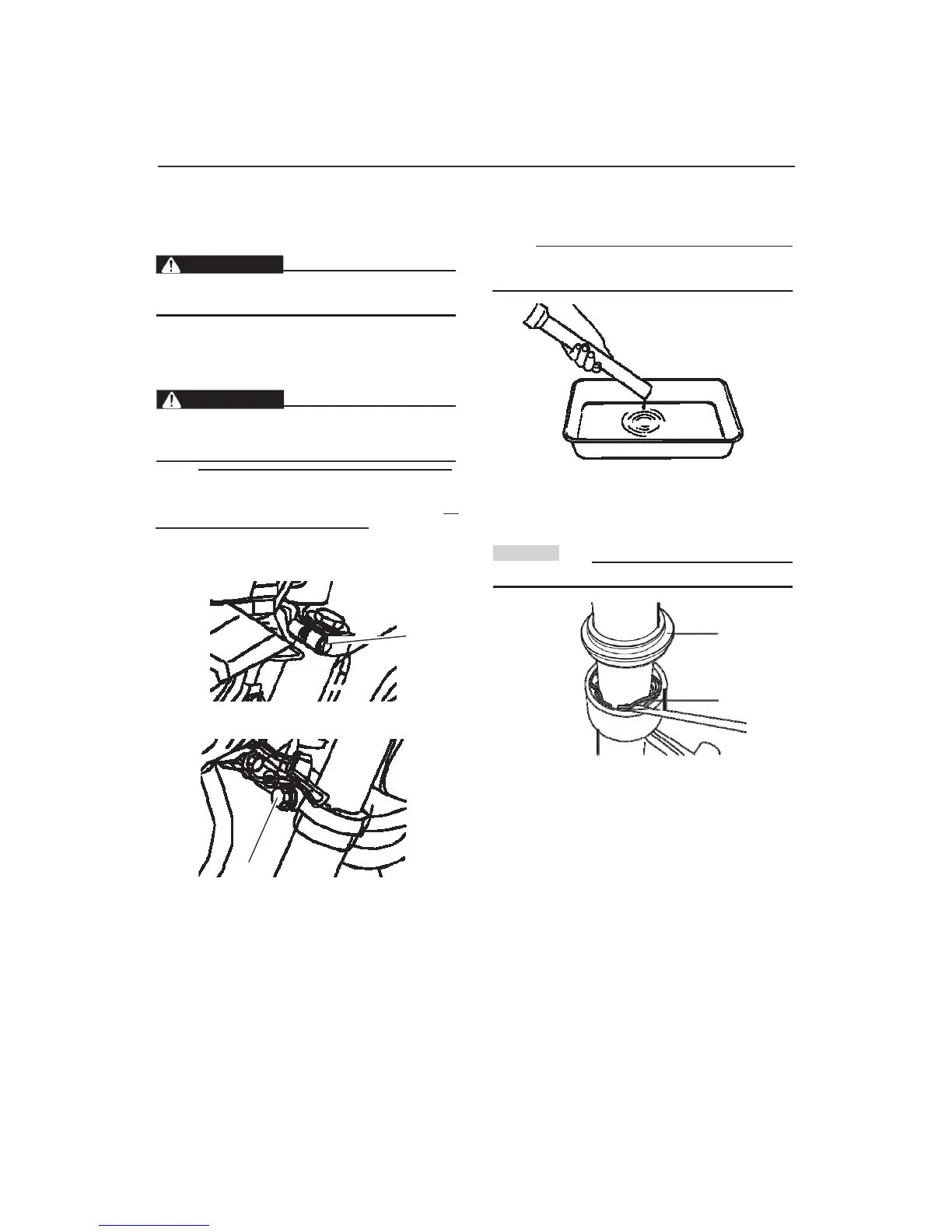

HORQUILLA DELANTERA



Strip the FRONT FORK
The following procedure applies to both front fork
legs
1. Place the vehicle on a flat surface

WARNING
Securely support the vehicle so there is no risk
of falling.

2.
Loosen:
•Top bracket screw "1"
•Lower bracket screw "2"
WARNING

Before loosening the screws on the top and
bottom support, hold the front fork legs.

NOTE:
To facilitate removal of the stop screws, first loosen
the top bracket, then loosen the cap slightly without
loosening the bottom bracket while the front fork
is
installed in the vehicle.


2.
Drain:
•
Fork Oil
NOTE:
Press the outer tube several times while leaving
the fork oil

3.
Remove:
•
Dust "1"
•
Oil Seal Clip "2"
(With a flathead screwdriver)

CAUTION
Do not scratch the inner tube.



1
1



2




4.
Remove:
•Screw the damper rod "1"
•
Damper rod



2
3. Remove:
•Front fork legs
REMOVAL OF FRONT FORK BARS
The following procedure applies to both front fork
legs
1. Remove:
•Rubber cover
•Clip "1"
•Front fork cover "2" (with O-ring)
•Fork spring.

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
