Yamaha FZ-16 2015 User Manual

5-14
INSPECCI
Ó
N DEL
Á
RBOL DE LE V
A
S



2. Check:
•
Rocker Shaft
Blue discoloration / pitting excessive wear /
scratches
Replace יו
to verify
lubrication system.

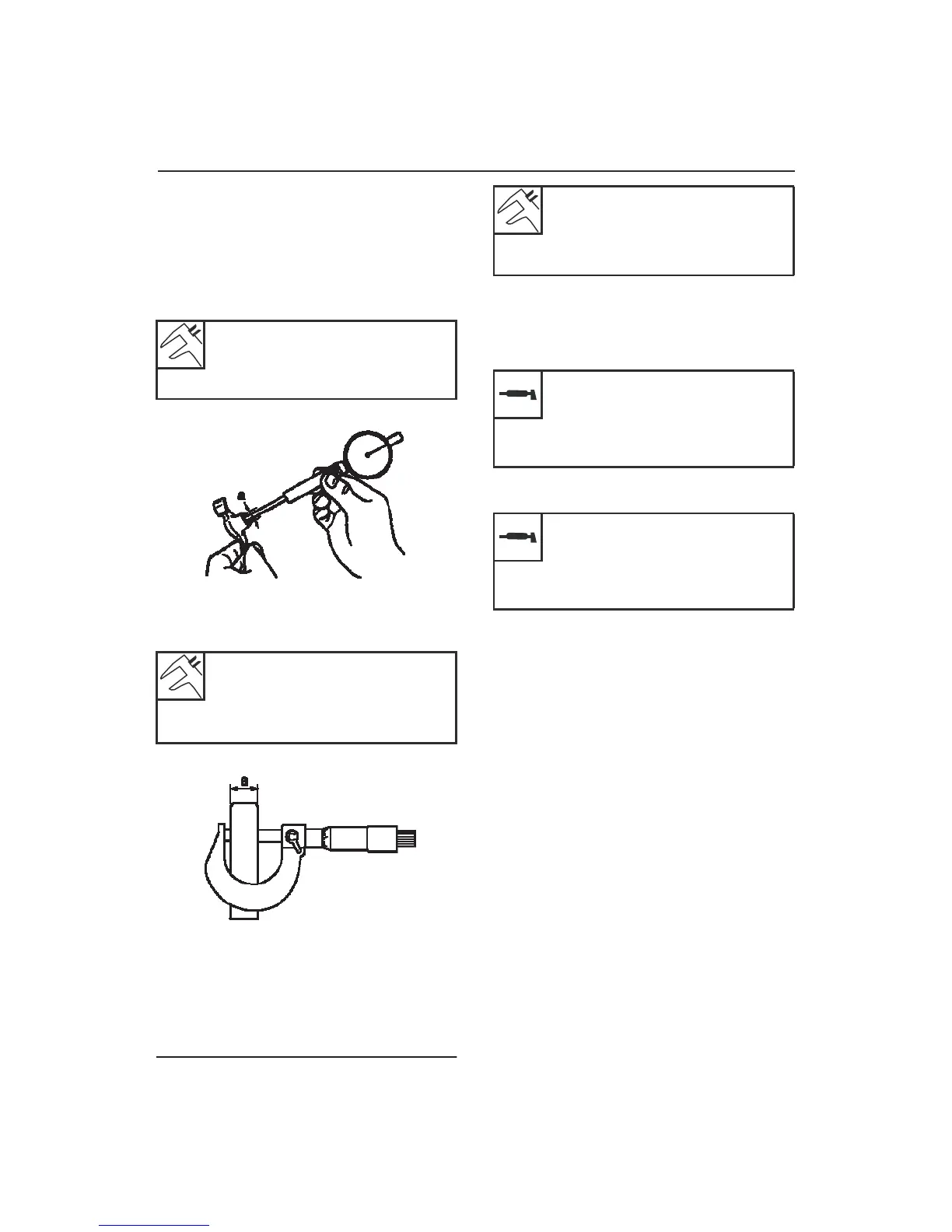

3. Measure:
•
Bore rocker "A"
OOS
Replace יו.

Bore rocker
9985-10000 mm
Limit
10,030 mm



4. Measure:
•
Outside diameter of rocker "A"
OOS
Replace יו.

Outside diameter of rocker
9966-9976 mm
Limit
9950 mm


Clearance between the rocker
arm and rocker aje
0009-0034 mm
Limit
0.08 mm


ASSEMBLY CAMSHAFT AND ROCKER
1. Lubricate:
• Rocker
•
Rocker shafts

Recommended lubricant
Inner surface of the rocker
molybdenum disulfide oil to the
rocker shaft
Motor oil

2.
Lubricate:
•
Camshaft

Recommended lubricant
Camshaft
Oil molybdenum disulfide camshaft
bearings Motor Oil

3.
Install:
•
Intake and exhaust rocker arms
•
Rocker Shaft




5. Calculate:
•
Clearance between the rocker arm and rocker
NOTE:
Calculated by subtracting the outside diameter
clearance rocker shaft bore
rocker.
OOS
Replace יו
defective parts.

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
