Yamaha FZ-16 2015 User Manual

5-64
TRANSMISI
Ó
N


l


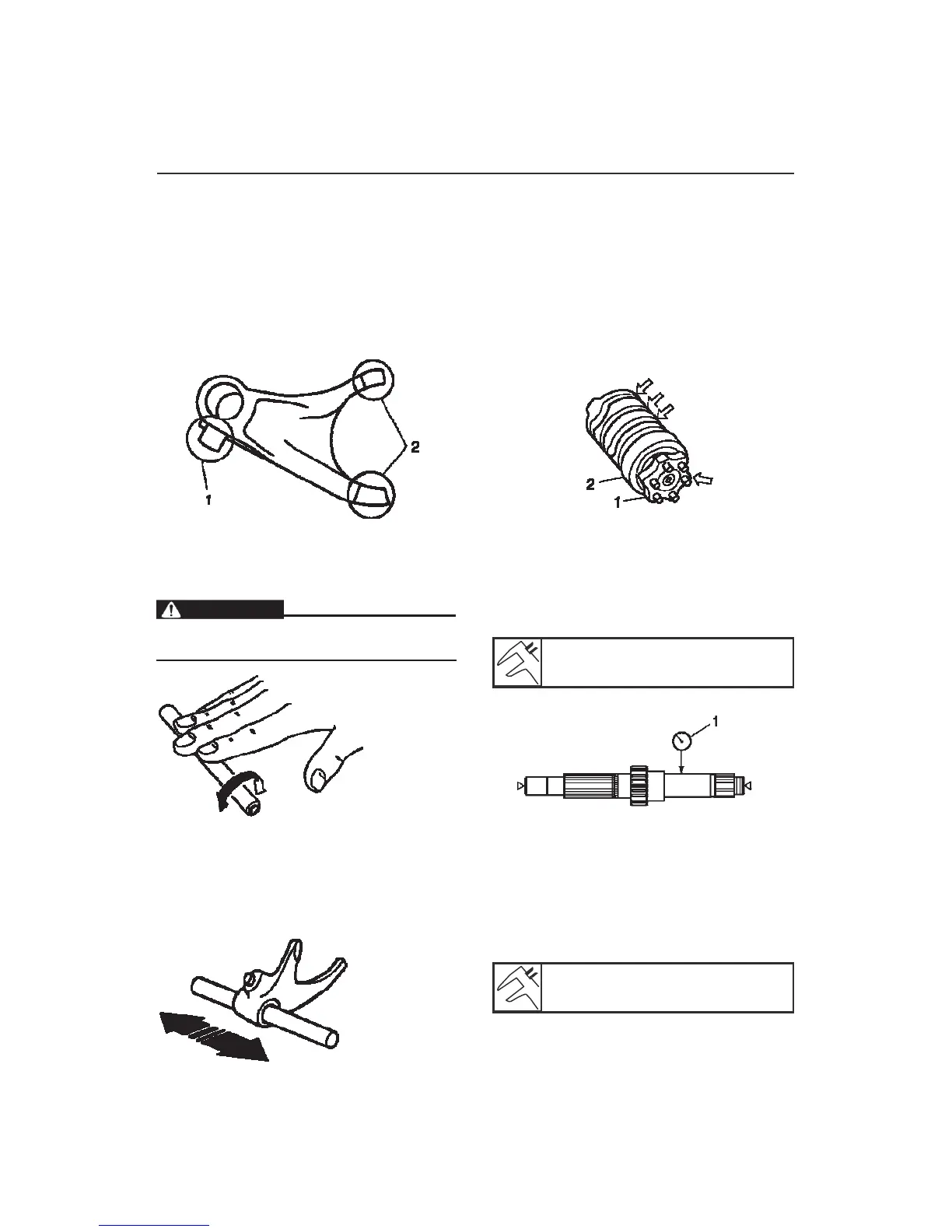

CHECKING THE SHIFT FORKS
DRUM INSPECTION OF CHANGES
1. Check:
The following procedure applies to all changes
forks.
1. Check:
l
Cam pin fork changes "1" Clips shift fork "2"
Curves / damage / stretch marks / wear
Replace יו
changes fork.
l
Grooves changes in the drum
Damage / scratches / wear
Replace יו
the drum changes.
l
The drum segment changes "1" Damage / wear
Replace יו
the drum
changes.
l
Bearing changes drum "2" Damage / pitting
Replace יו
the drum
changes.









2. Check:
l
Bar fork guide changes
Roll the guide bar shift fork on a flat surface.
Curves
Replace יו.

WARNING
Do not attempt to straighten a guide bar bent
shift fork.

Transmission Inspection
1. Measure:
l
Shaft Deformation main
(With a centering device and dial indicator "1")
OOS
Replace יו shaft
principal.

Shaft limit deformation main
0.03 mm










3.
Check:
l
Movement of the shift fork (Displacement
along the guide bar shift fork)
Rough movement
Replace יו Fork
changes and fork guide bar changes as a
whole.


2.
Measure:
l
Warp Drive Shaft
(With a centering device and dial indicator "1")
OOS
Replace יו shaft
traction.

Shaft limit tensile deformation
0.03 mm

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
