MOTOR




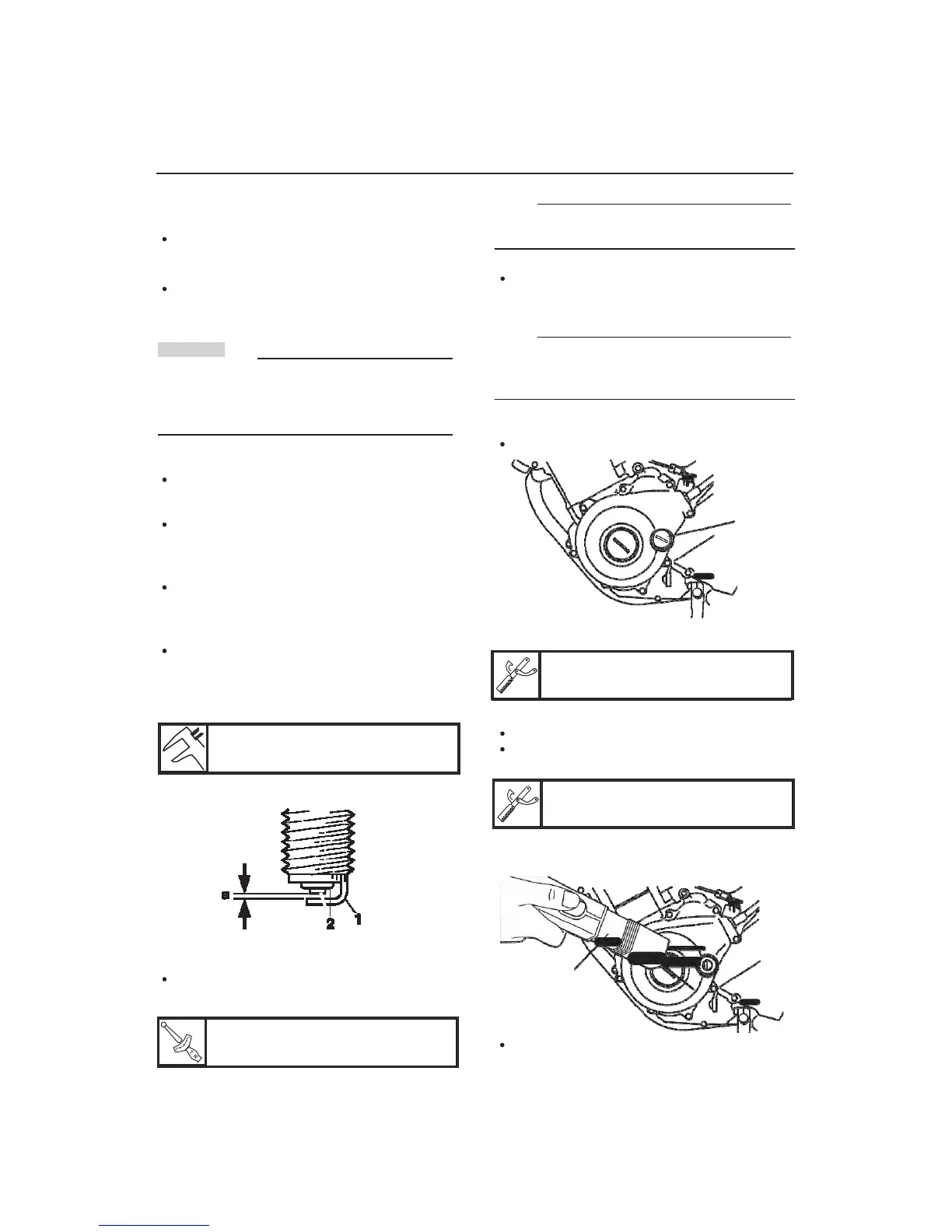

CHECKING THE SPARK

1. Disconnect: Spark
plug

2.
Remov
e:
Spark

CAUTION

Before removing the spark plug, clean with
compressed air dirt that may have accumulated in
the spark plug hole to prevent it from falling into the
cylinder


3. Check:
Type plug (NGK / CPR8EA-9)
Incorrect
Switch.
4. Check:
Electrode "1"
Damage / wear? Replace the spark plug.
Insulation "2"
5. Clean:
Spark
(With a spark plug cleaner or wire brush)
6.
Measure:
Clearance of spark plug electrodes "a"
(With a feeler gauge)
OOS
Adjust.



Distance between the
electrodes of the spark plug
0.8-0.9 mm












7. Install:
Spark



Plug
13 Nm (1.3 m · kg, 9.4

NOTE:
Before installing the spark plug, clean the spark
plug and gasket.

8. Connect:
The spark plug cap

ON INSPECTION TIME
NOTE:
Before checking the ignition timing, check the
connection of all wires around the ignition
system. Cone.xiones sure all are tight and free of

1.
Remove:
Screw access timestamp is "1"

1



Crankshaft key cap
YSST-625

2. Connect:
Strobe "1" Digital Tachometer plug
wire



Lamp flicker











1


3. Check:
Ignition Time

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
