SISTEMA DE
A
RRANQUE EL
É
CTRICO
7-7




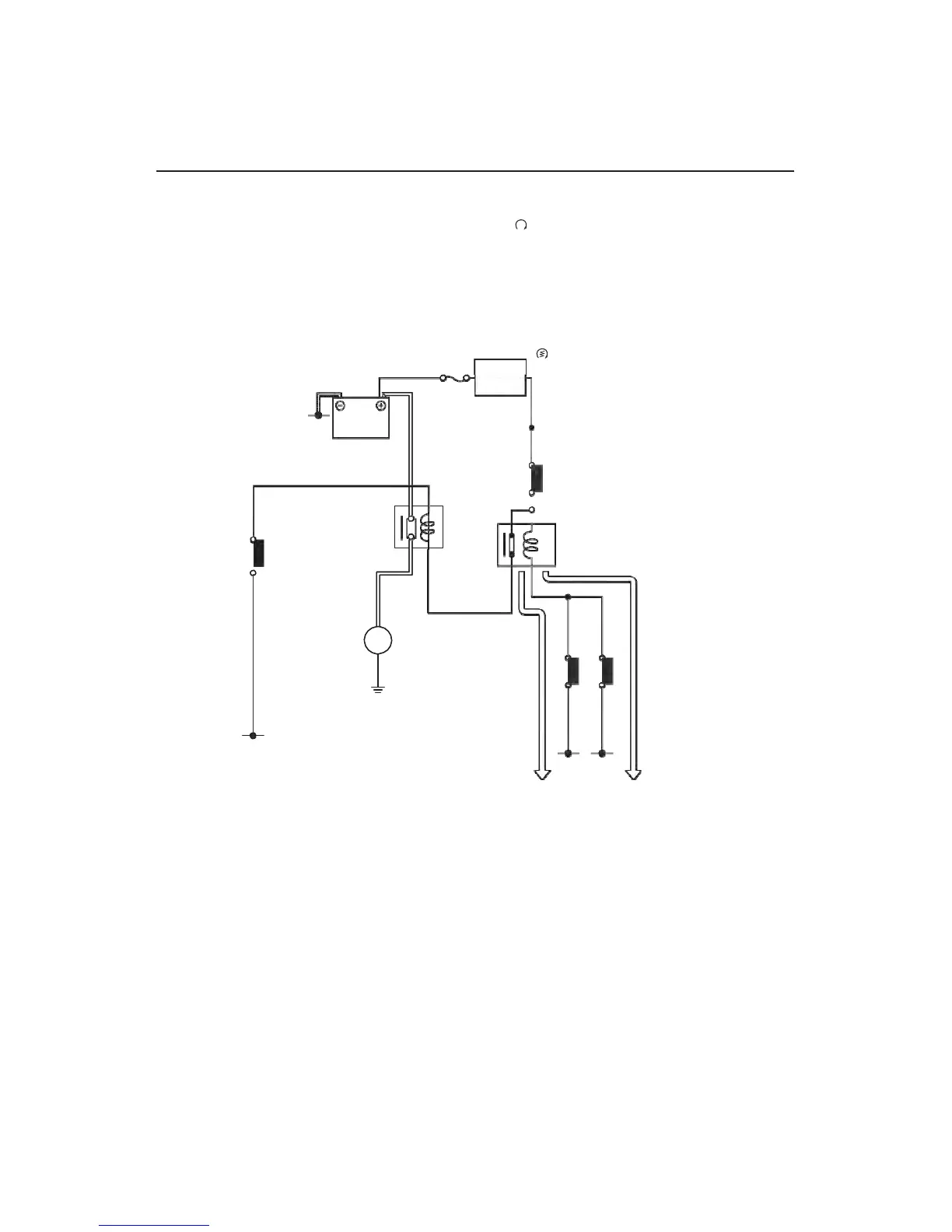

SYSTEM OPERATION START CIRCUIT COURT

If the engine cutoff switch is set to "" and the ignition switch is positioned to "ON" (both switches are
closed), the starter may work if one of the following conditions is served:
•The transmission is in neutral (neutral switch is closed).
•Pull the clutch lever to the handlebar (the clutch switch is closed). Cutting the ignition system prevents the starter
motor when any of the
above conditions are not met. In this case, the starting circuit is open, then the current fails to
reach the starter. When at least one of the above conditions is met, the starting circuit is closed
and you can start the engine by pushing the start switch "".

2
3


1


4


9
5

8



10

7 6







to
b

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
