Yamaha FZ-16 2015 User Manual

5-45
BOMBA DE
A
CEITE



CHECKING THE OIL PUMP
1. Check:
•
Primary drive gear oil pump
•
Primary driven gear oil pump
•
Pump housing oil
Cracks / damage / wear
Replace יו the
defective parts.

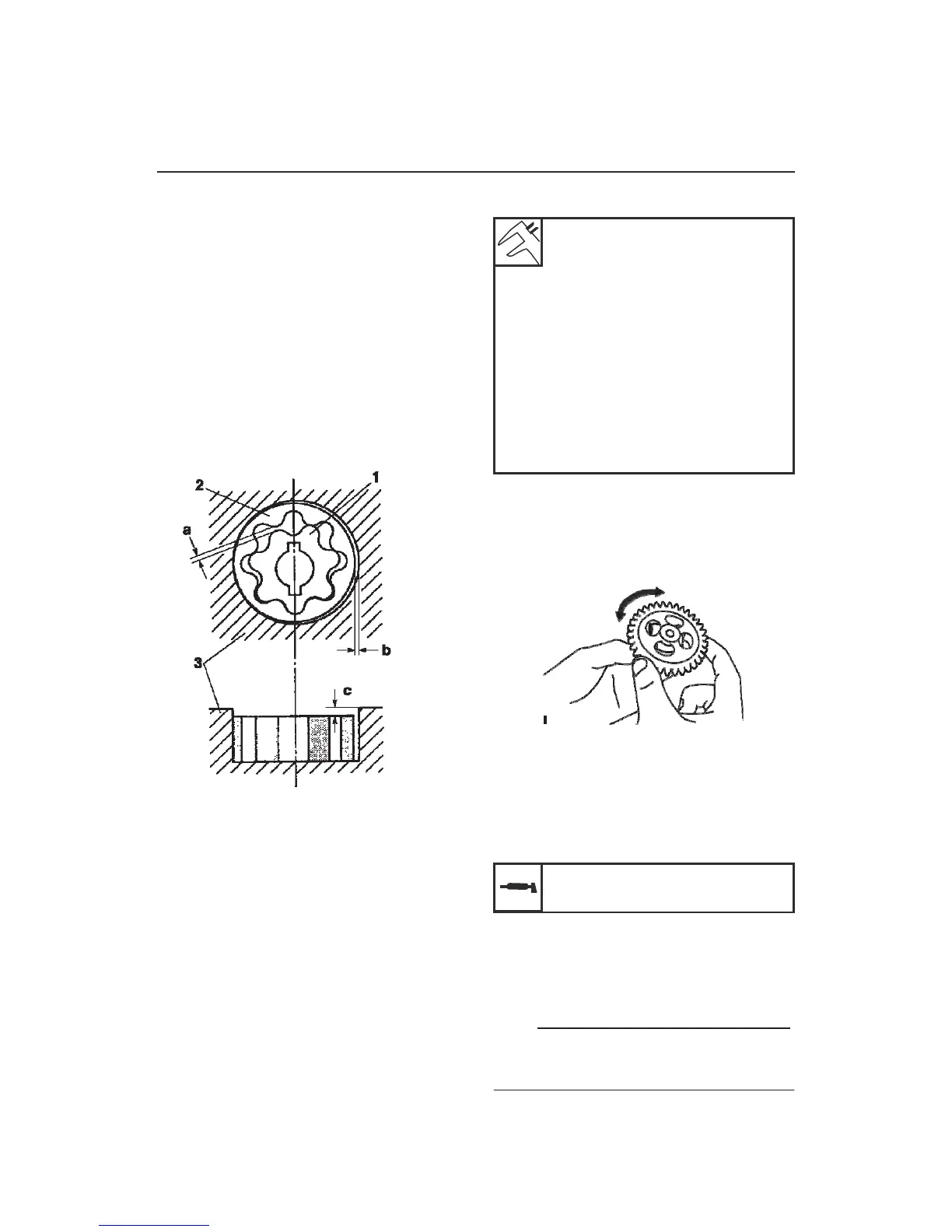

2. Measure:
•
Clearance between the inner rotor and outer rotor
"a"
•
Clearance between the outer rotor and the
casing of the oil pump "b"
•
Clearance between the casing of the oil pump
and the inner and outer rotors "c".
Out of specification Replace pump יו
oil.

Clearance between the inner
rotor and the outer rotor
Less than 0.15 mm
Limit
0.20 mm
Clearance between the outer rotor
and the casing of the oil pump
0.13 to 0.19
mm
Limit
0.15 mm
Clearance between the casing
of the oil pump and the inner
and outer rotors
0.06 to 0.11
mm
Limit
0.15 mm

3. Check:
•
Pump operation
Rough movement
Repeat יו Steps (1)
and
(2) or replace the defective part.













ASSEMBLY OIL PUMP
1. Lubricate:





1. Internal rotor
2. External rotor
3.
Housing oil pump
•
Internal rotor of the oil pump
•
External rotor of the oil pump
•
Primary driven gear oil pump (With the
recommended lubricant)

Recommended lubricant
Engine Oil

2.
Install:
•
Internal rotor of the oil pump
•
External rotor of the oil pump "1"
•
Primary driven gear oil pump
•
Pin "2"

NOTE:
When installing the inner rotor, align the pin "2"
on the shaft of the oil pump slot with "a" in the
inner rotor "1."

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
