1-7
HERRAMIEN
T
A
S
ESPECIALES




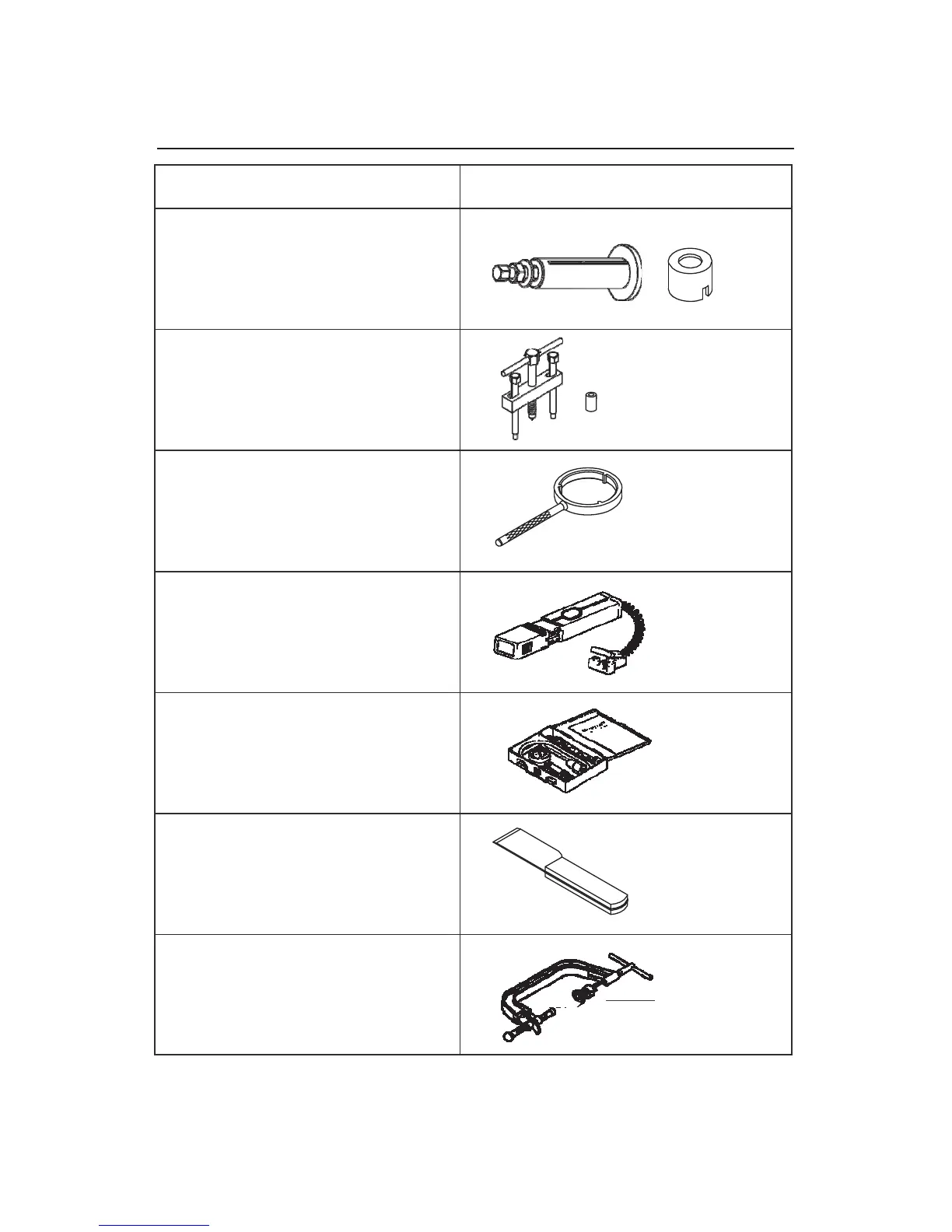

Tool name / nr Tool
Illustration
Tool to install the crankshaft spacer.
(A) YSST-
266 (b)
YSST-267



These tools are using to install the crankshaft.
(A)
(B)
Tool for removing the crankshaft. YSST-
265



This tool is used to remove the crankshaft from the
crankcase
Clutch Hub Fixer
YSST-733



This tool is used to lock the clutch hub while installing or
removing the locking nut of the clutch hub.

Lamp flicker





This instrument is used to check the ignition timing.
Manometer





This instrument is used to measure the compression of
the engine

Scraper
YSST-612




This tool is used to scrape the tip seal crankcase mating
surface.

Compressor valve spring
YSST-603



This tool is used to remove and install the valve and valve
spring.

