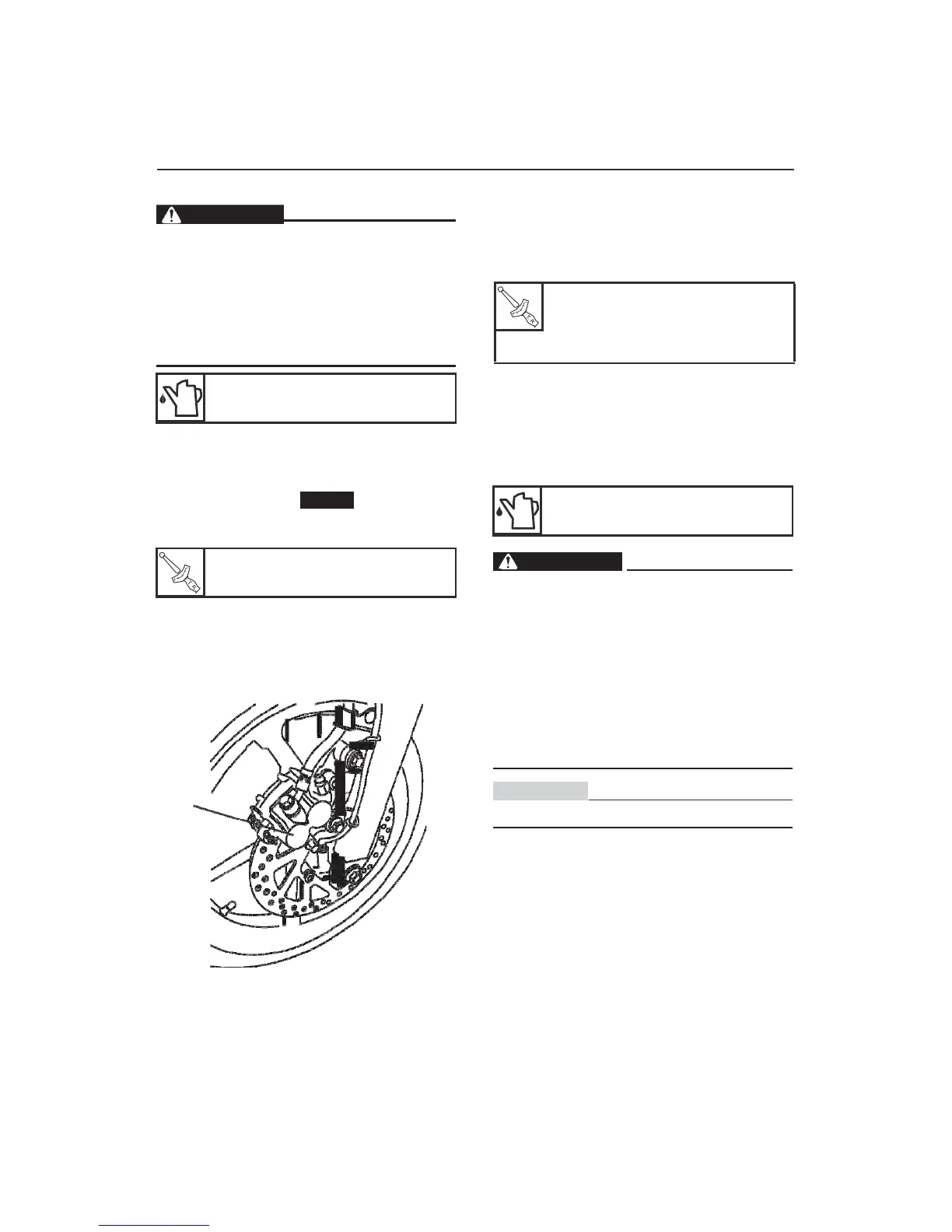

4-22
FRENO
DELANTERO



ASSEMBLY FRONT BRAKE CALIPER
WARNING
Before installation, all internal brake
components should be cleaned and lubricated
with a liquid cleaner or brake again.
Never use solvents on internal brake
components, as it will cause the piston seals
and dust seals to swell and deform.
Whenever you remove the brake caliper,
REPLACE ace piston seals and dust from the
brake caliper.

Recommended liquid
DOT 3 or DOT 4

ASSEMBLY FRONT BRAKE CALIPER
1. Assemble: Caliper
(Temporarily)

Copper Washers
News
Brake Hose
Combination screw brake hose

Combination screw brake hose
26
Nm (2.6 m · kg, 19 ft · lb)


2.
Disassembly:
Caliper "1"










1

3.
Assembly:
Spring brake pads
Brake pads
Caliper
Fastener brake hose

Assembly:
Spring brake pads
Brake pads
Caliper
Fastener brake hose

See "REPLACING THE FRONT BRAKE"
on page 4-20
4.
Fill:
Deposit brake master cylinder (with the
specified amount and recommended brake
fluid)

Recommended liquid
DOT 3 or DOT 4


WARNING

Use only the recommended brake fluid, other brake
fluids may cause damage to the rubber seals,
causing leakage and loss of braking efficiency.
Refill with the same type of brake fluid that is already in
the system, the fluid mixture can cause a harmful
chemical reaction that would cause a malfunction of the
brakes. When refilling, be careful not to get water in the
master cylinder. The water significantly decreases the
boiling point of the fluid and may cause vapor lock.


CAUTION
Brake fluid may damage painted surfaces or
plastic. Immediately clean up any spilled brake
fluid.

5.
Purge:
Brake system
See "bleeding the hydraulic brake system" on
page 3-15.
6.
Check:
Brake fluid level
Below the minimum level mark
"A"
Add יו
Recommended brake fluid
to the proper level.
Refer to "CHECKING THE BRAKE FLUID
LEVEL" on page 3-14
