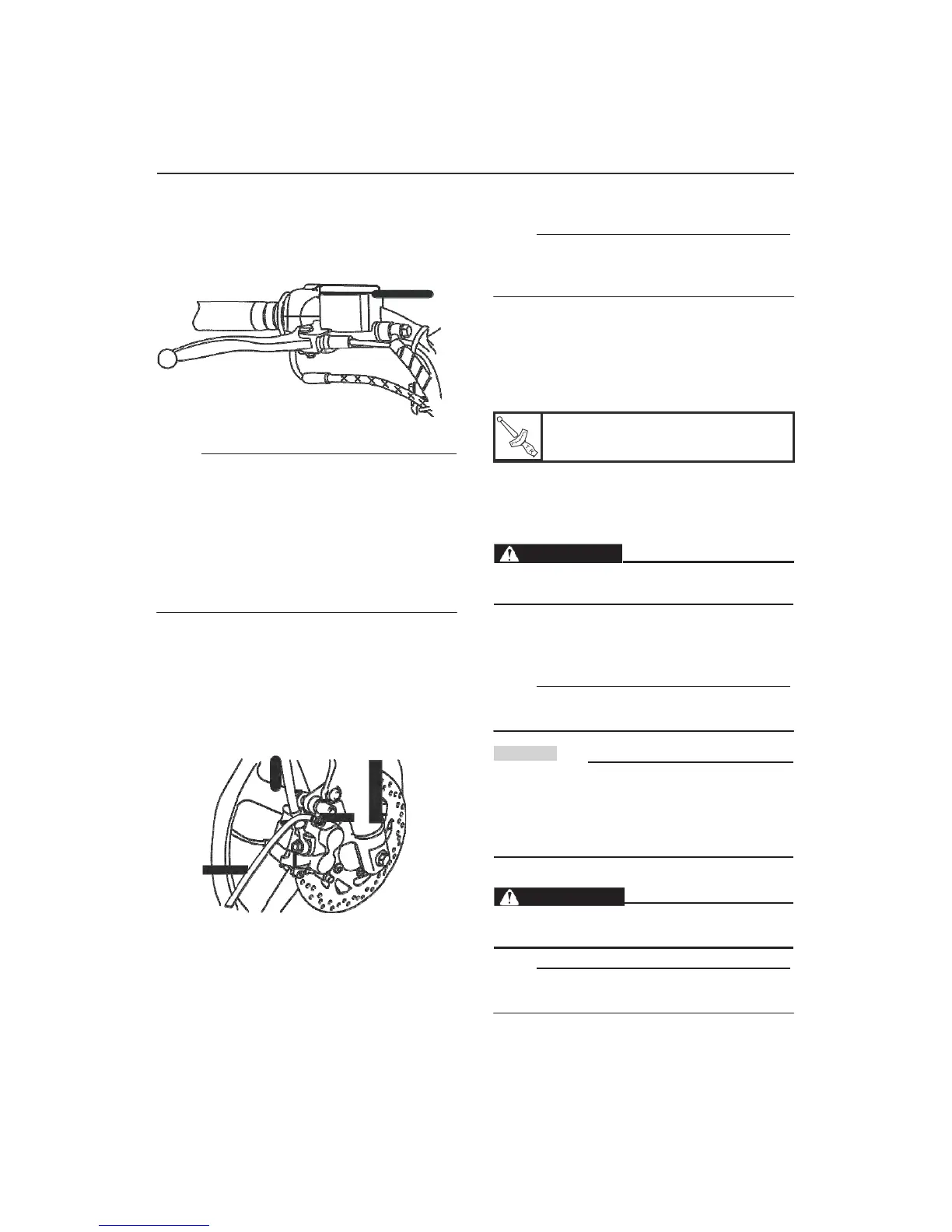

3-16
CHASIS




1.
Remove:
Cover the brake master cylinder "1"




1
g.
Loosen the bleed screw.
NOTE:
When you release the bleed screw, the pressure
will be released and cause contact with the brake
lever the throttle.

h. Tighten the bleed screw and then release the
brake lever
i. Repeat steps "e" to "h" until all air bubbles
have disappeared brake fluid in the plastic
hose.
j. Tighten the drain plug to the specified torque.


NOTE:
Be careful not to spill brake fluid and do not let the master cylinder
reservoir overflow.
When you bleed the brake hydraulic system,
make sure there is always enough brake fluid
before toggling. If this precaution is ignored, may
occur in the air inlet hydraulic brake system,
greatly increasing the purge procedure time.
If bleeding is difficult, it may be necessary to let
the brake fluid settle for a few hours. Repeat
when small air bubbles are gone.

2.
Bleed:
Hydraulic Brake System
a. Fill the brake fluid reservoir to the proper level
with the recommended brake fluid.
b. Assemble reservoir diaphragm brake master
cylinder.
c. Securely attach clear plastic hose "1" in the
bleed screw 2.



2



1



d.
Place the other end of the hose into a
container.
e. Slowly actuate the brake lever several times.
f.
Pull the lever fully without releasing brake
Bleed screw:
6 Nm (0.6 m · kg, 4.3 ft · lb)

k.
Fill the brake fluid reservoir to the proper level
with the recommended brake fluid.
Refer to "CHECKING THE BRAKE FLUID
LEVEL" on page 3-14

WARNING
After making the bleed hydraulic brake system,
check the brake operation.

3.
Assembly:
Cover the brake master cylinder
CLEARANCE ADJUSTING THE DRIVE CHAIN

NOTE:
The slack of the drive chain must be verified at
the point of greatest stress.


CAUTION
A string stretched excessively load the engine
and other vital parts and a loose chain can go out
and damage the swingarm or cause an accident.
Therefore, maintaining the tension of the
transmission chain within specification limits.

1. Place the vehicle on a flat surface

WARNING
Securely support the vehicle so there is no risk of
falling.

NOTE:
Place the vehicle on the main stand, so that the
rear wheel is elevated.
To Next Page
