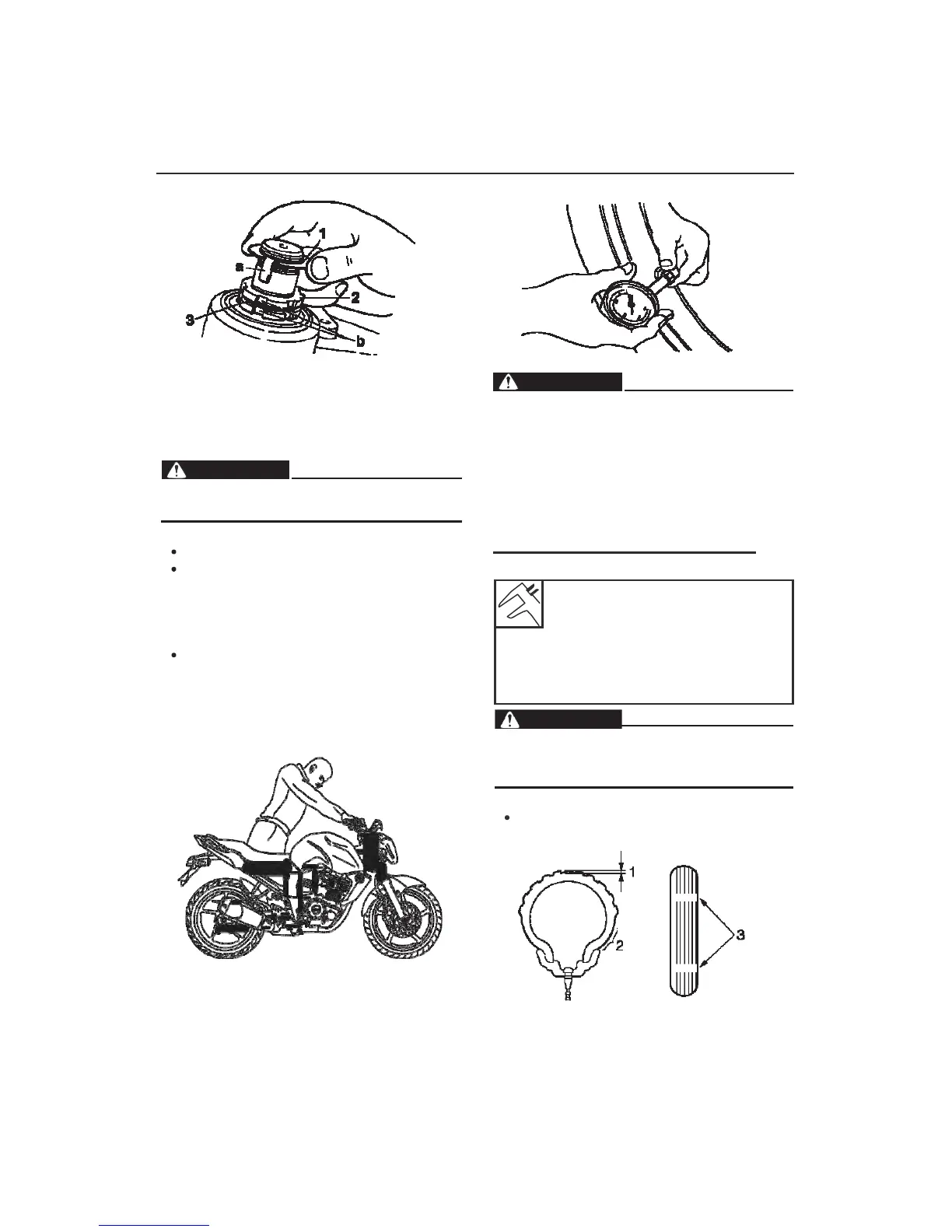

Yamaha FZ-16 2015 User Manual

3-19
CHASIS
















5. Assemble:
upper fork
Refer to "STEERING"
on page 4-43
CHECKING THE FRONT FORK
1. Place the vehicle on a flat surface.

WARNING
Securely support the vehicle so there is no
risk of falling.

2. Verify: inner tubes
Damage / scratches
יו
Replace.
Oil Seals
Oil Leaks
יו
Replace.
3. Keep the vehicle in vertical position and pull
the front brake
4. Check:
Operation of the front fork. Pump the handle
repeatedly check if the front fork gently
cushions.
Irregular Movement
יו
Repair.
Refer to "FRONT FORK"
on page 4-35

TIRE INSPECTION
The following procedure applies to both wheels.
1. Check:
•Tire pressure.
OOS
יו
Adjust.


WARNING
The pressure should be checked and
corrected when the tire temperature is equal to
room temperature.
The pressure should be in accordance with the
total weight (including cargo, rider, passenger
and accessories) and conduction velocity of
the vehicle.
Drive vehicle overload can damage tires, loss
of control or a major accident.
NEVER OVERLOAD THE VEHICLE.


Air pressure of the tires
(measured on cold tires): Front:
200 kPa (28 psi) (2.0 kgf / cm ²)
Rear:
225 kPa (33 psi) (2.25 kgf / cm ²)



WARNING
It's dangerous to drive with a worn tire. When
the tread reaches the wear limit, replace the tire
immediately.

2. Check:
Tire surface
Damage / wear
Replace יו
㻚
rim

1. Depth of the tread
2. Sideband
3. Wear indicator

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
