Yamaha FZ-16 2015 User Manual

4-51
BASCULANTE




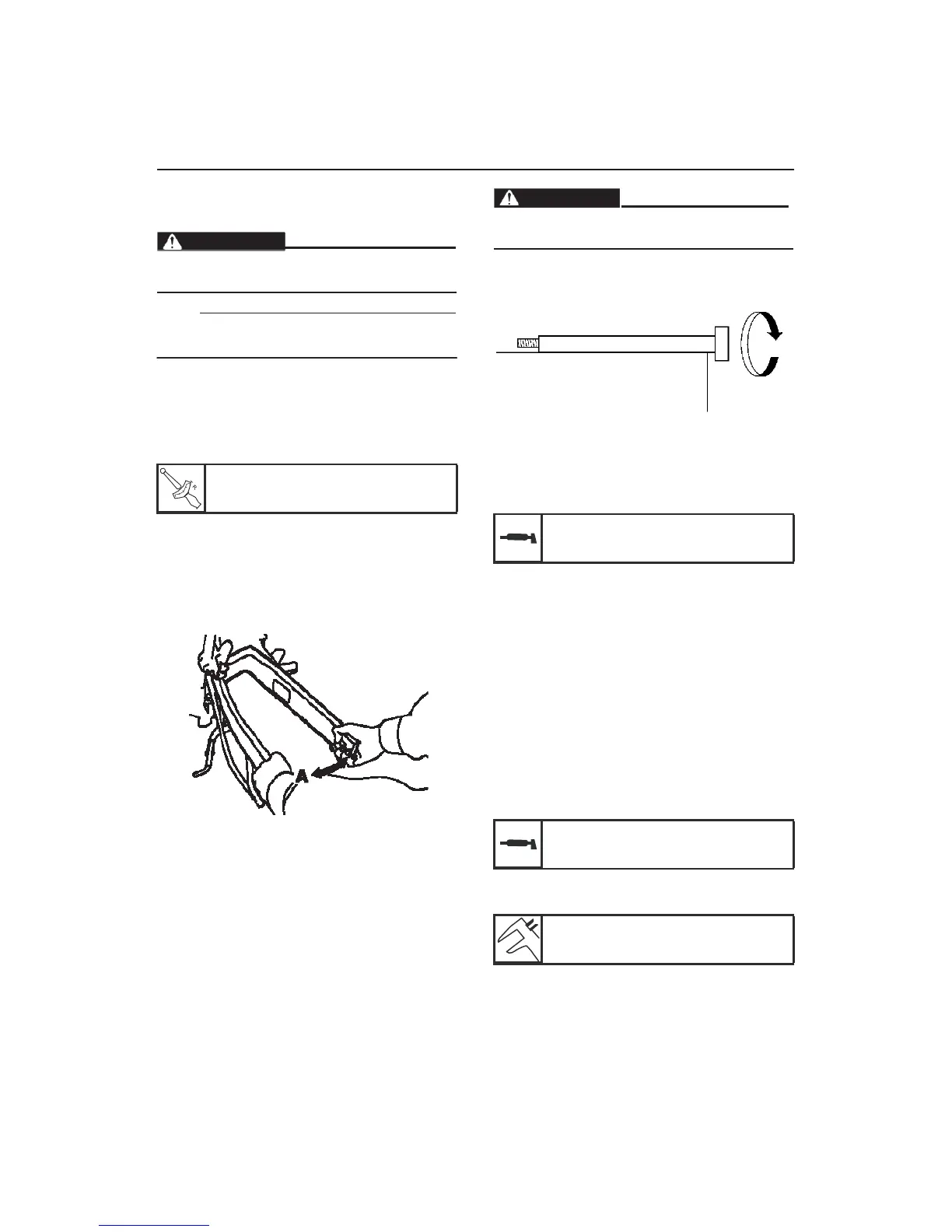

SWINGARM REMOVAL
1. Place the vehicle on a flat surface

WARNING
Securely support the vehicle so there is no risk
of falling.

NOTE:
Securely support the vehicle so there is no risk
of falling.

2. Measure:

WARNING

Do not attempt to straighten the pivot axis.
•
Swingarm side play.


a.
Measuring the torque of the pivot shaft nut.

Pivot axle nut
60 Nm (6.0 m · kg, 43 ft · lb)

b. Measure the swingarm side play "to"
moving the swingarm from side to side.
c. If you look at the swingarm side play, check
the spacers, bearings, and overall.
3. Wash:
•
Pivot shaft
•
Overalls
•
Spacers
•
Bearings

Recommended cleaning
solvent
Kerosene

4. Check:
• Overalls
• Spacers
•Oil Seals
Damage / wear
Replace יו.
•
Bearings
Damage / pitting
Replace יו

SWINGARM ASSY
1. Lubricate:
• Bearings
•
Spacers
•
Overalls
•
Pivot shaft


CHECKING THE ROCKER
1. Check:
•
Rocker
Curves / damage / wear
Replace יו.
2. Check:
•
Pivot shaft
Rotating the pivot axis on a flat surface.
Curves
Replace יו .
Recommended lubricant
Soap-based grease Lithium

2.
Assemble:
•
Bearings "1"

Mounting depth "a"
0.5-1.5 mm

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
