Yamaha FZ-16 2015 User Manual

2-14
P
A
RES DE
A
PRIETE



TORQUE

GENERAL OF TORQUE


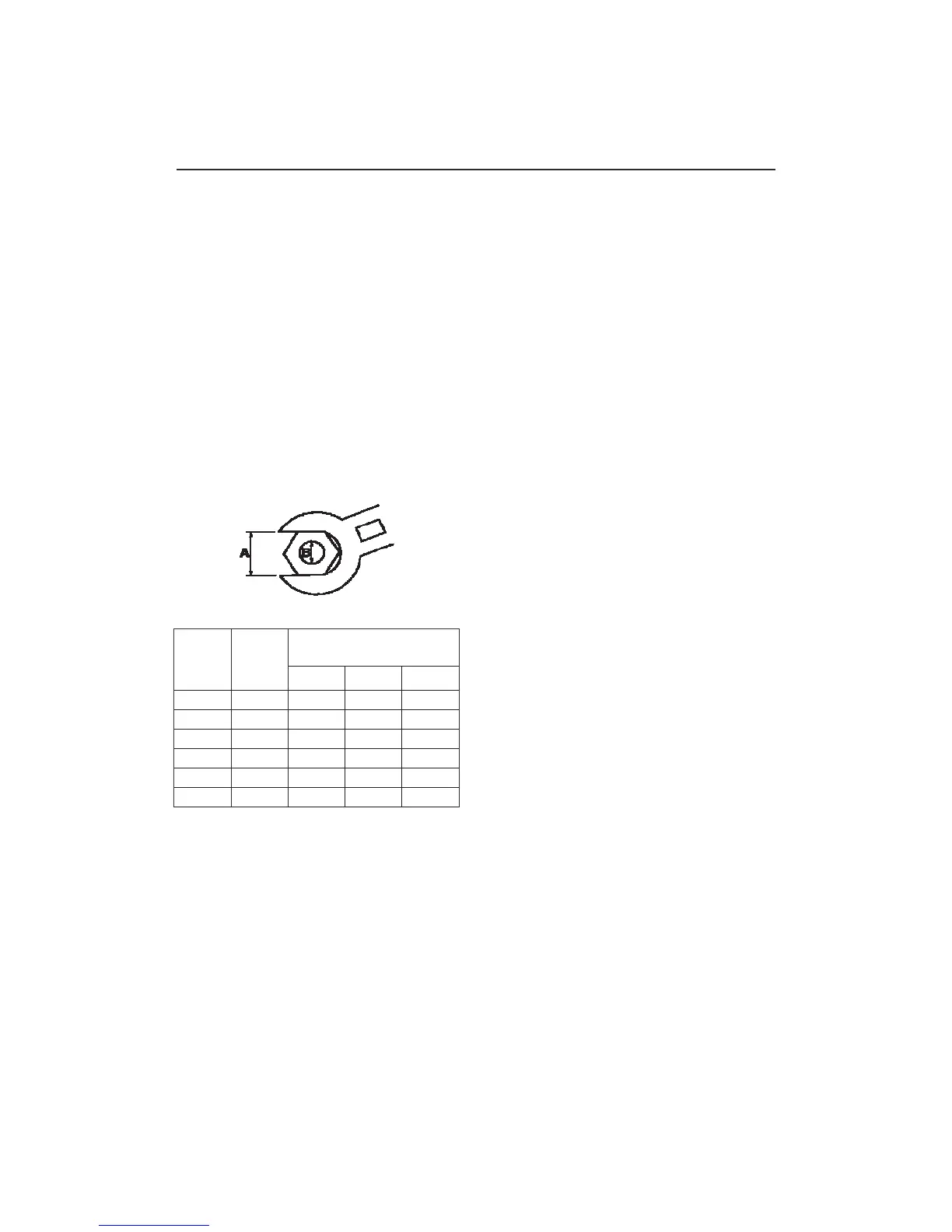

This chart specifies tightening torques for
standard fasteners with thread ISO normalized.
The torque specifications for special
components or assemblies mentioned in each
chapter of this manual. To prevent distortion,
cross-clamping sets with multiple attachment
points, in progressive stages, until the specified
torque. If not otherwise specified for torque.
Threads must be clean and dry. The
components, in turn, should be at room
temperature.










A: Face to face
B: Outer diameter of the thread




A (nut)


B (pin)
General tightening
torques
Nm m · kg ft · lb
10 mm 6 mm 6 0.6 4.3
12 mm 8 mm 15 1.5 11
14 mm 10 mm 30 3.0 22
17 mm 12 mm 55 5.5 40
19 mm 14 mm 85 8.5 61
22 mm 16 mm 130 13.0 94

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
