Yamaha FZ-16 2015 User Manual

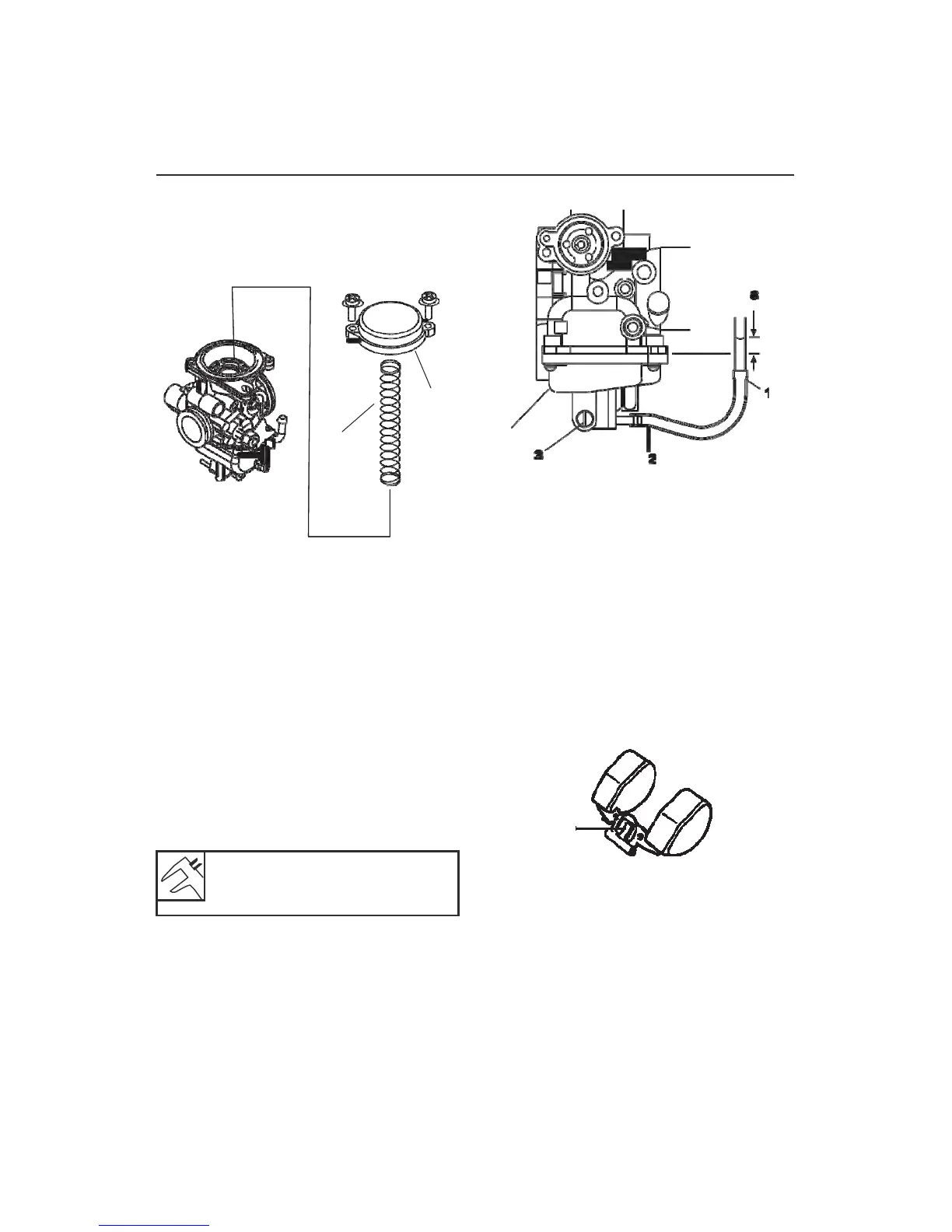

6-8
CARBURADOR




6. Install:
• Diaphragm Spring "1"
• Cover the Iris "2", tighten the screws









2

4
1







CARBURETOR ASSEMBLY
1.Connect all wires and cables.
Refer to "ENGINE REMOVAL" on page 5-
2.

2.Ajustar
•
Freeplay throttle cable See "FREE PLAY
ADJUSTMENT THROTTLE CABLE" on
page 3-6

3.Ajustar:
•
Engine idling
1300 to 1500 r / min.
See "ENGINE IDLE ADJUSTMENT" on page
3-4
2.Ajustar:
•
Fuel Level

a. Remove the carburetor.
b. Check valve seat of the valve needle and
the needle.
c. If either is worn, replace them as a set.
d. If both are ok, adjust the level of the pin
bending float float "1".
e. Install the carburetor.
f. Measuring the fuel level again. g. Repeat
steps a through f until the
fuel level is within specifications.

MEASURING AND ADJUSTING THE
FUEL

1.Medir:
• Fuel level "a"
1
Out of specification - adjust

Fuel level (below the contact surface of
the float chamber)
6.0 ~ 7.0 mm
a. Place the vehicle on a flat surface.
b. Place the vehicle on a suitable stand to
ensure that the vehicle remains upright.
c. Install the fuel level gauge
"1" in the fuel drain hose "2" d. Loosen the fuel
drain "3"
e. Keep the fuel level gauge vertically next to
the float chamber "4"
f. Measuring the fuel level "a".


INSPECTION FUEL WRENCH
1.Check:
• Key Fuel
Cracks / damage / wear - replace.

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
