Yamaha FZ-16 2015 User Manual

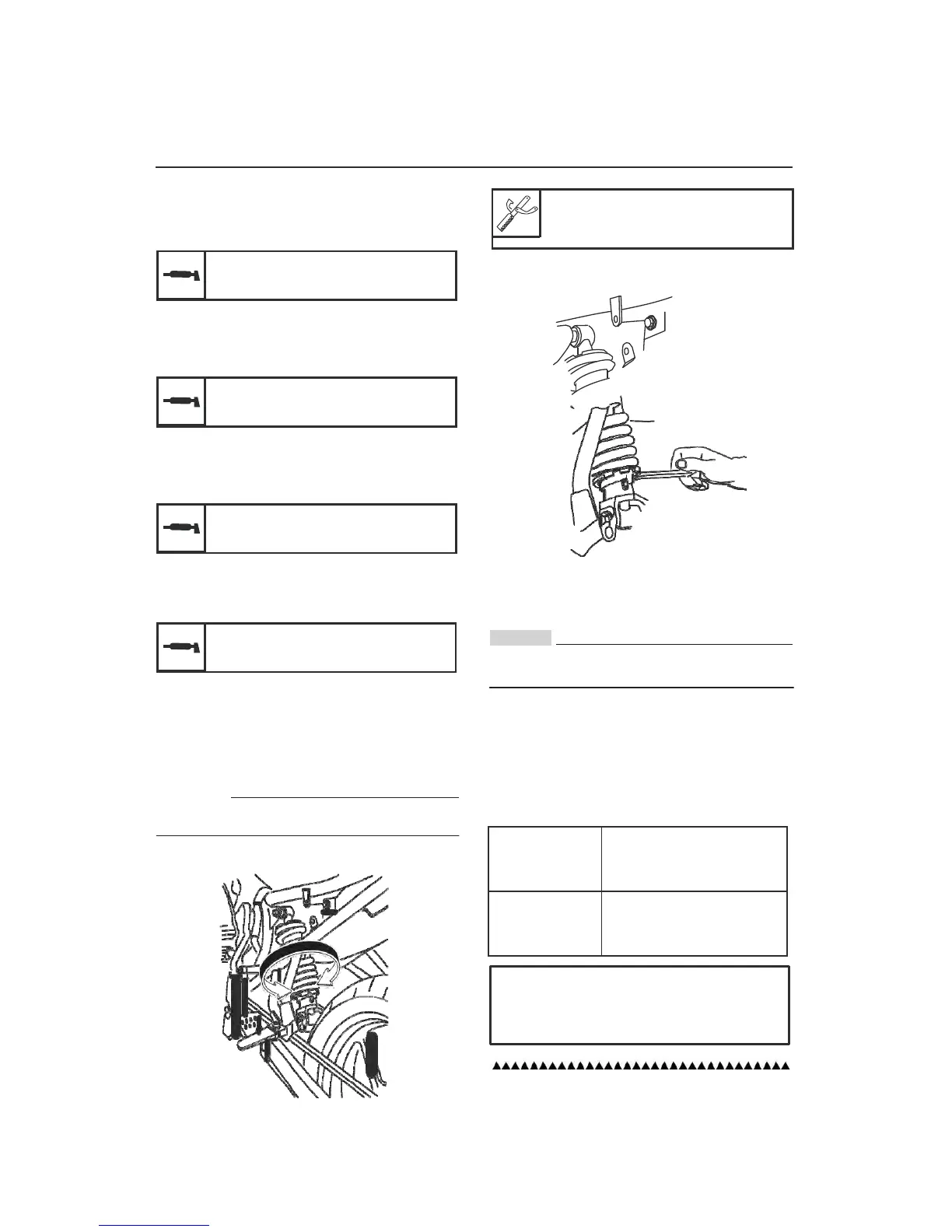

3-21
CHASIS


Steering
The spring preload is
increased (suspension is
harder)
Address b
The spring preload is
decreased (suspension
softer)

LUBRICATING THE BRAKE LEVER

Lubricate the pivot point and the metal-metal
moving parts of the lever.

Adjuster rear shock
YSST-821

Recommended lubricant
Silicone Grease


LUBRICATION PEDALS
Lubricate the pivot point and the metal-metal
moving parts of the lever.

Recommended lubricant
Soap-based grease Lithium


LUBRICATION SIDESTAND Lubricate the pivot
point and the metal-metal moving parts of the
lever.

Recommended lubricant
Soap-based grease Lithium

LUBRICATING THE REAR SUSPENSION
Lubricate the pivot point and the metal-metal
moving parts of the lever.

Recommended lubricant
Soap-based grease Lithium


ADJUSTING THE REAR SHOCK

The following procedure applies to the
adjustment of the rear cushion.


WARNING
•Securely support the vehicle so there is no risk
of falling.
CAUTION
Never go beyond the maximum or minimum
adjustment positions

1. Fit:
• spring preload

a. Turn the adjustment ring "1" in direction "a" or
"b"
b. Align the desired position on the adjustment
ring with the abutment "2".










b Adjustment positions
to
Minimum (soft): 1
Standard: 4
Maximum (hard): 7


Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
