Yamaha FZ-16 2015 User Manual

4-8
RUEDA DELANTERA



REMOVING THE FRONT WHEEL
1. Place the vehicle on a flat surface.

WARNING
Securely support the vehicle so there is no risk of
falling.

2. Survey:
•Front Wheel
NOTE:
Place the vehicle on a suitable stand so that the
front wheel is lifted.

3. Remove:
•Front Wheel
•Speed Sensor Unit
• Spacer
NOTE:
Do not depress the brake lever when removing
the front wheel.



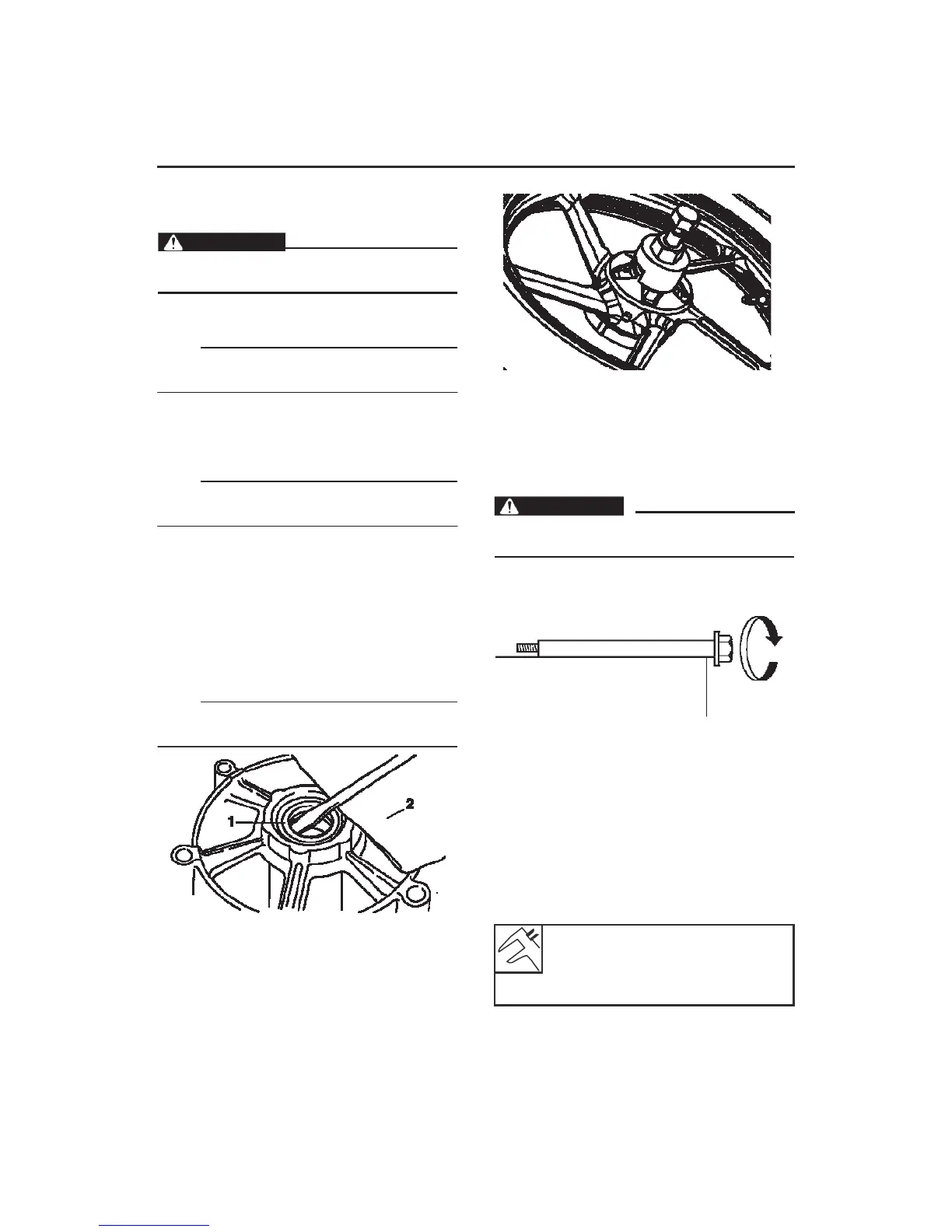

FRONT WHEEL DISASSEMBLY
1. Remove:
•Oil Seal
•Wheel Bearings
a. Clean the outside of the front wheel
hub.
b. Remove the oil seal "1" with a
flathead screwdriver.
NOTE:
To avoid damaging the wheel, placing a cloth "2"
between the screwdriver and the wheel surface.

c. Remove the wheel bearings with a bearing
puller.





VERIFICATION FRONT WHEEL
1. Check:
• Wheel axle
Roll the wheel axle on a flat surface.
Warping
Replace יו.
WARNING

Do not attempt to straighten a wheel axle.











2. Check:
• Rim
• Front Wheel
Damage / wear
Replace יו.
Refer to "CHECKING THE TIRES" on
page 3-19
Refer to "CHECKING THE WHEELS" on
page 3-20

3. Measure:
• wheel radial deviation "1"
• Wheel windage "2"
Off limits specified Replace יו.

Radial deviation limit wheel
1.0 mm
Limit lateral deviation of the wheel
0.5 mm

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
