Yamaha FZ-16 2015 User Manual

3-5
MOTOR




3. Check:
Engine idling
If out of specification? Adjust. See "ENGINE
IDLE ADJUSTMENT" on page 3-4.

4. Insert:
1
Probe "2" meter CO
b
to
(Calibrated) by the exhaust pipe "3", using
the appropriate adapter "4"









Direction "a"
Engine idling increases
Direction "b"
Engine idling speed is decreased



8. Remove:
Digital Tachometer

9. Fit:
Freeplay throttle cable See "free play adjusting
THROTTLE CABLE" on page 3-6



Freeplay 3.0-5.0 mm
throttle cable



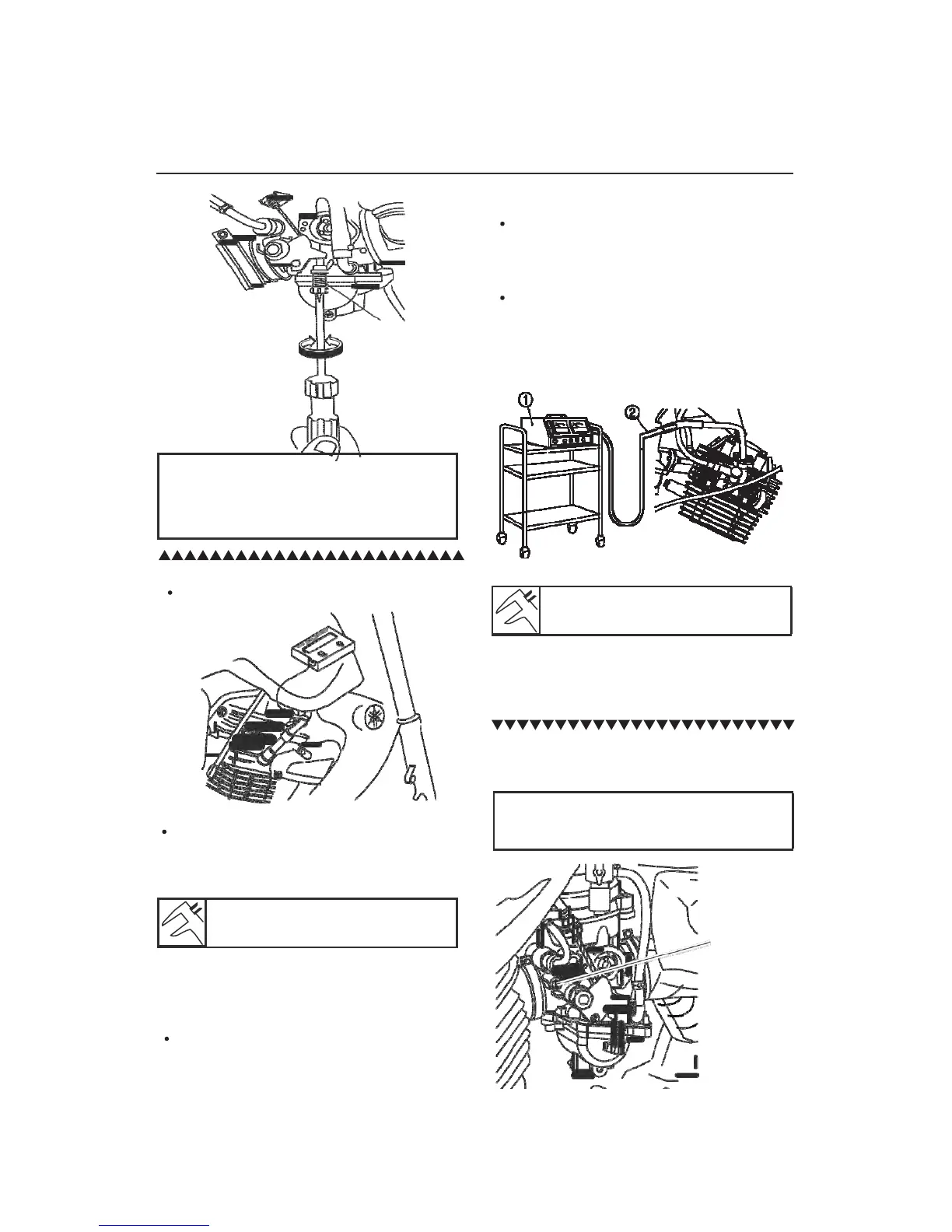

CO measurement and adjustment

1. Start the engine and leave calendar for the
equivalent of walking 4 kms.
2. Install:
Tachometer in the spark plug wire






Density 'CO':
2.0 - 6.0%


Out of specification? Adjust.
5. Fit:
Adjust the density of CO through the mixture
screw


Turn the mixture tronillo "5" inward or outward
until the value specified in the density of "CO"

Turn out
The density of the "CO" increases
Turn inward
The density of the "CO" is decreased

Reset idle as specified





5

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
