Yamaha FZ-16 2015 User Manual

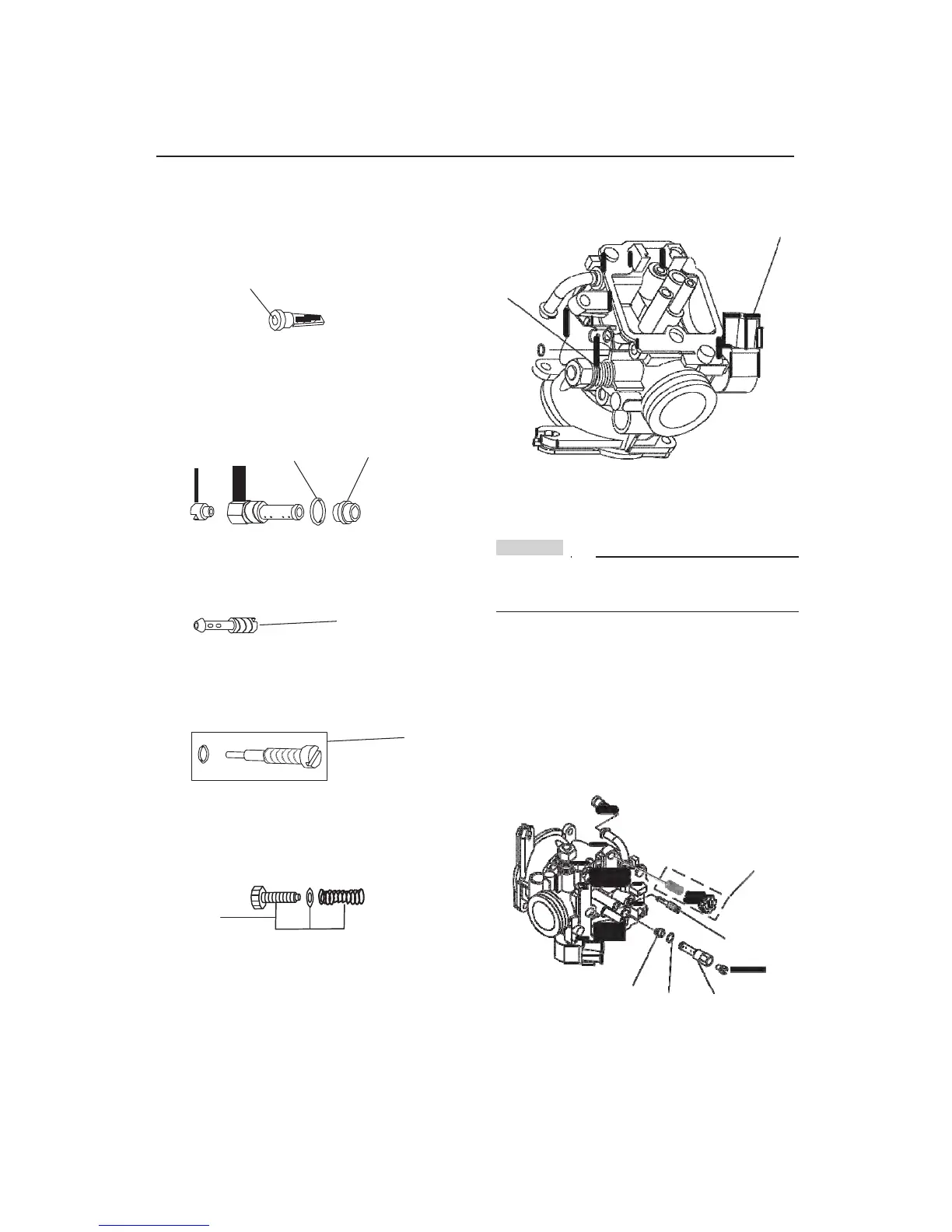

CARBURADOR




8. Check:
• Filter mesh "1"
Damaged / Replace clogged ----
1


1
2





9. Check:
•
Main jet "1" / accommodation supplier
"2" / O-ring "3" / main nozzle "4"
Damage / obstruction - Replace
1
2
3
4






10. Check:
• jet pilot "1"
Damage / obstruction - Replace

1


11. Check:
• mixture screw "1"
Damage / wear - Replace.


1
CARBURETOR ASSY

CAUTION :

•Before assembling the carburetor, clean all parts
with a petroleum solvent.
• Always use new gaskets.

1. Install:
•Throttle screw "1"
•Jet pilot "2"
•Main nozzle "3"
•
O-ring "4"
•
Main nozzle "5"
•
Main jet "6"




12. Check:
• throttle screw "1"
Damage / wear - Replace.
1


1



13.Verificar:
•YTPS "1"
Damage / defective - Replace.
•
Butterfly / Butterfly axis "2" movement
Obstruction / damage / wear - Replace the
carburetor


2

6

3
4
5




6-6

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
