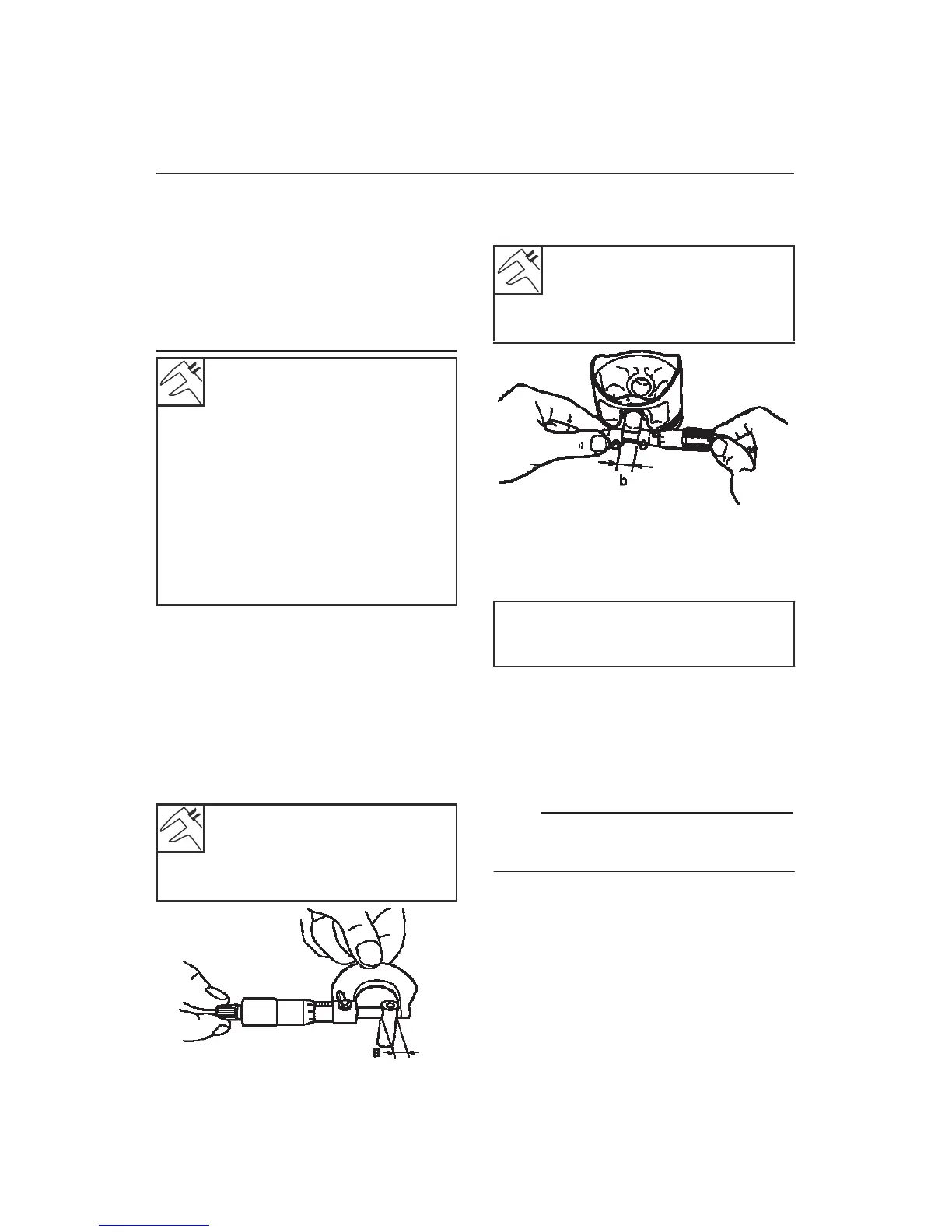

Yamaha FZ-16 2015 User Manual

5-24
CILINDRO Y PIST
Ó
N



3.
Measure:
•
Distance between centers of rings
OOS
Replace יו the
piston rings.
NOTE:
The opening of the oil ring spacer can not be
measured. In case the oil ring opening is
excessive, replace the three segments as a
whole.

Piston Rings
Top Ring
Distance between tips of ring
(Installed)
0.10 to 0.25 mm
Limit
0.40 mm
Second ring
Distance between tips of ring
(Installed)
0.10 to 0.25 mm
Limit
0.40 mm
Ring oil
Distance between tips of ring
(Installed)
0.20 to 0.70 mm


INSPECTION PISTON PIN
1. Check:
•Piston pin
Blue discoloration / grooves Replace יו
piston pin and then check the lubrication
system
2.
Measure:
•
Outer diameter of piston pin "a" Out of
specification Replace יו
piston pin

Outer diameter of piston pin
14995-15000 mm
Limit
14,975 mm
3. Measure:
•Inner diameter of the piston pin hole "a"
Out of specification Replace piston יו

Bore piston pin hole
15002-15013
Limit
15,043 mm


4.
Calculate:
•
Piston pin clearance - inner diameter of piston
pin
OOS
יו
Replace
piston pin and the piston as a whole.

•Piston pin clearance - inner diameter of piston
pin bore = piston pin hole "b" - Outer diameter
of piston pin "a"


Install piston and cylinder
1. Install:
•Top ring "1"
•
Second ring "2"
•
Oil ring expansion "3"
•
Oil lower guide ring "4"
•
Oil Ring top guide "5"
NOTE:
Be sure to install the piston rings so that the
manufacturer's marks or numbers
are up.

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
