4-9
RUEDA DELANTERA




4. Check:
• Wheel Bearings

The front wheel rotates this irregular or loose
Replace יו
the bearings
wheel.
• Oil Seal
Damage / wear
Replace יו.














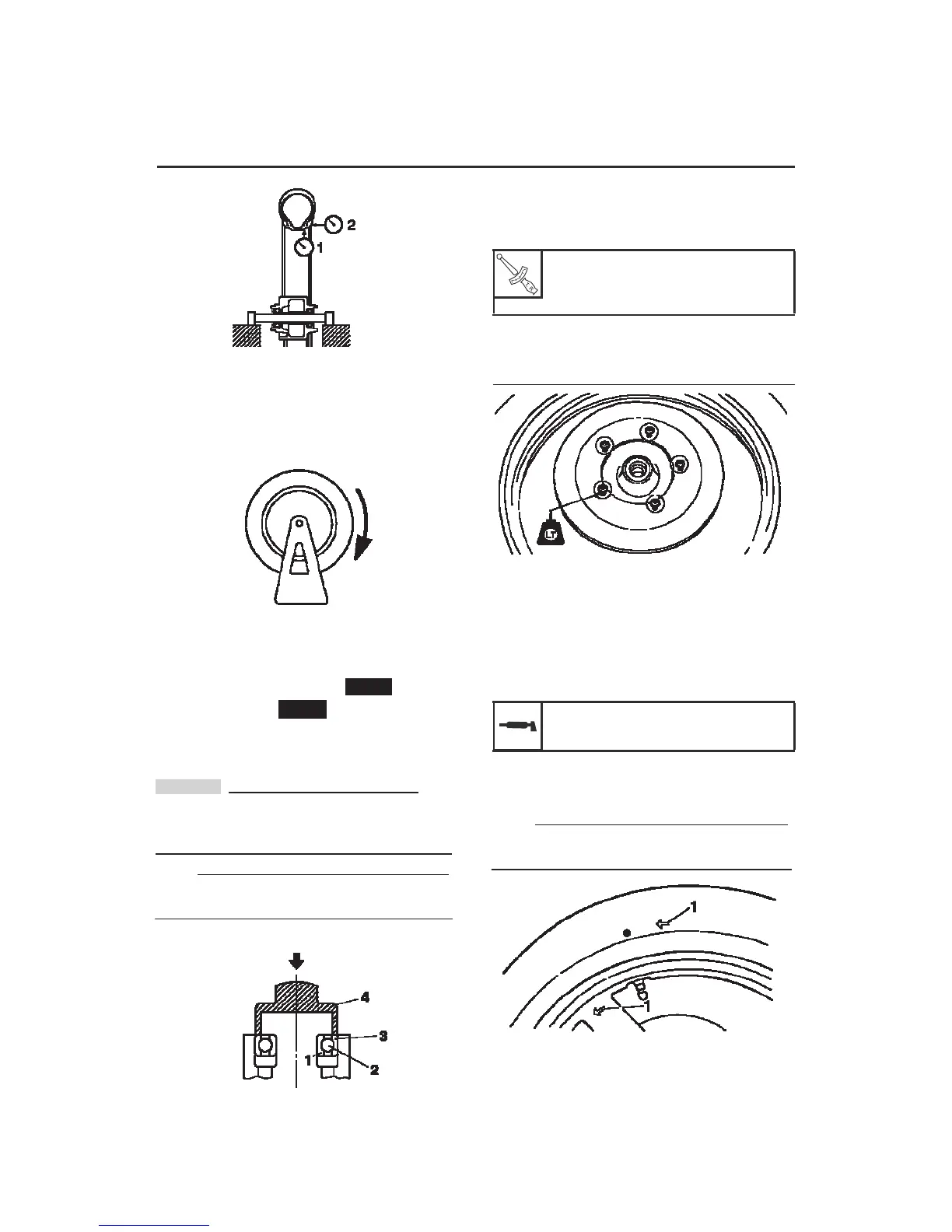

FRONT WHEEL ASSEMBLY
1.
Assembly:
• Wheel Bearings New
• Oil Seal New

a. Assemble the bearings and new oil seal in the
reverse order of disassembly.
CAUTION
Do not touch the inside track "1" or areas "2" of
wheel bearings. Contact must be made just
outside the track "3".

NOTE:
Use a wrench "4" to match the outside diameter
of the bearing and oil seal.

FRONT WHEEL ASSEMBLY (DISC)

1. Assemble: l
• Disco front brake.

Screws front brake disc
30 Nm (3.0 m · kg, 22 ft ·
lb) LOCTITE ®

NOTE:
Tighten the brake disc bolts in stages and in a
crisscross pattern.

2.
Check:
• Disco Front brake
Refer to "CHECKING THE FRONT BRAKE DISC"
on page 4-19
3. Lubricate:
• Wheel Hub
• Edges oil seal
• Edges speed sensor

Recommended lubricant
Soap-based grease Lithium

4.
Assembly:
• Wheel lead


NOTE:
Assemble the wheel rim and marked "1", pointing
in the direction of wheel rotation.


Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
