Yamaha FZ-16 2015 User Manual

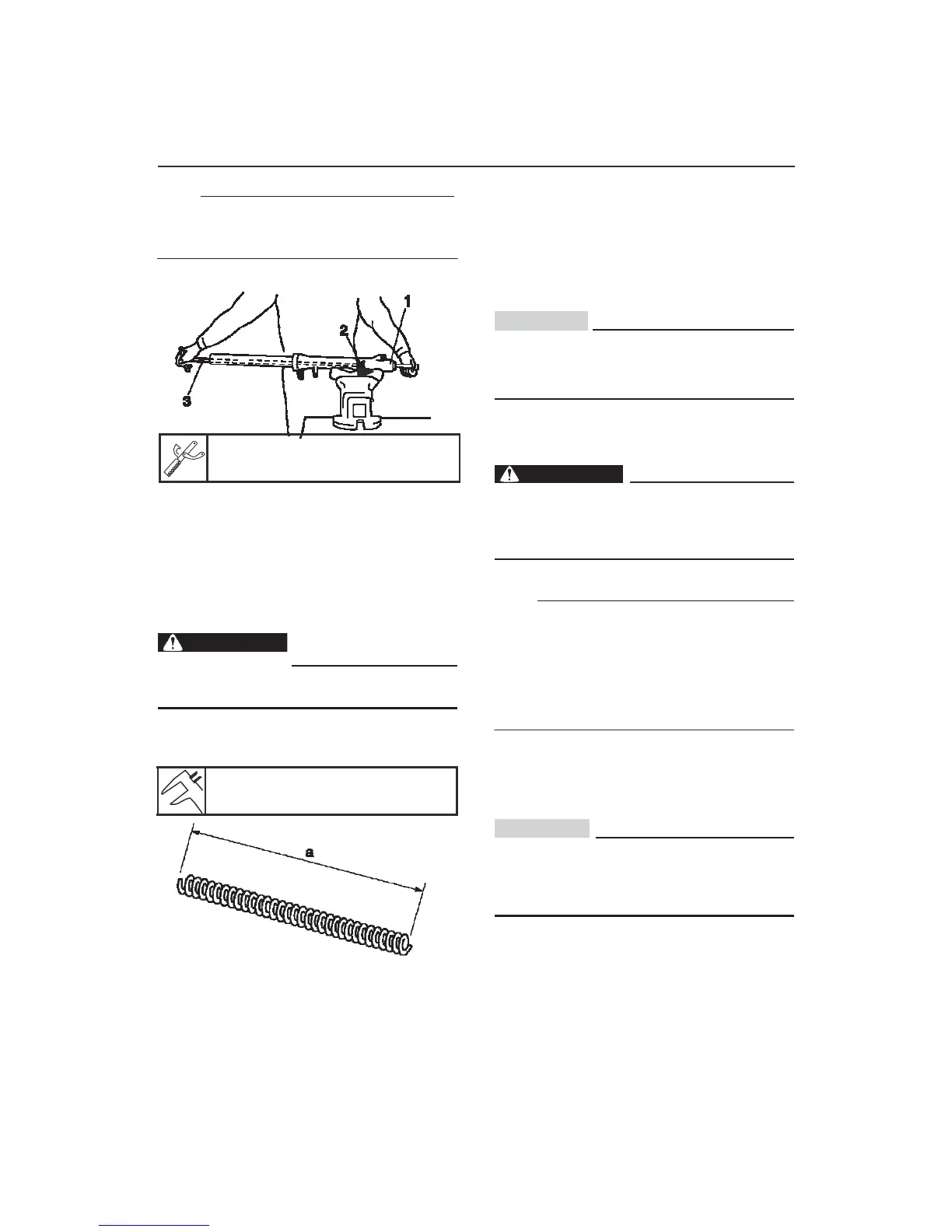

4-39
HORQUILLA DELANTERA



NOTE:
While holding the damper rod with the clip of the
damper rod "2" and the T-wrench "3", loosen
the damper rod.
3. Check:
•
Damper rod
Damage / wear
Replace יו.
Obstructed Blow compressed air יו all
oil passages
•Oil flow stopper
Impaired
Replace יו.

CAUTION
When disassembling and assembling the front
fork legs, perrmita no foreign materials enter the
front fork.




Key in T
YSST-813


CHECKING THE FRONT FORK BARS
The following procedure applies to both front fork
legs
1. Check:
•
Inner tube
•
Outer tube
Curves / damage / scratches
Replace
יו.

WARNING
Do not attempt to straighten a bent inner tube as
dangerously weakened
2. Measure:
•Spring free length "a"
OOS
Replace יו.

Spring Free Length
254.4 mm
BARS ASSY FRONT FORK
The following procedure applies to both front fork
legs

WARNING
Make sure the oil levels in both front fork legs
are equal
Different oil levels can result in little loss of
maneuverability and stability.



NOTE:
• During assembly of the front fork legs, be sure to
replace the following parts:
- Bushing outer tube
- Oil Seal
- Dust
- Clip
•Before assembling the front fork legs, make sure
all components are clean.

1. Assemble:
•
Damper rod

CAUTION
Allow the damper rod to slide slowly down
the inner tube until it protrudes from the
bottom of the inner tube. Be careful not to
damage the inner tube.
2. Lubricate:
•Outer surface of the inner tube

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
