Yamaha FZ-16 2015 User Manual

4-54
CADENA DE TRANSMISI
Ó
N



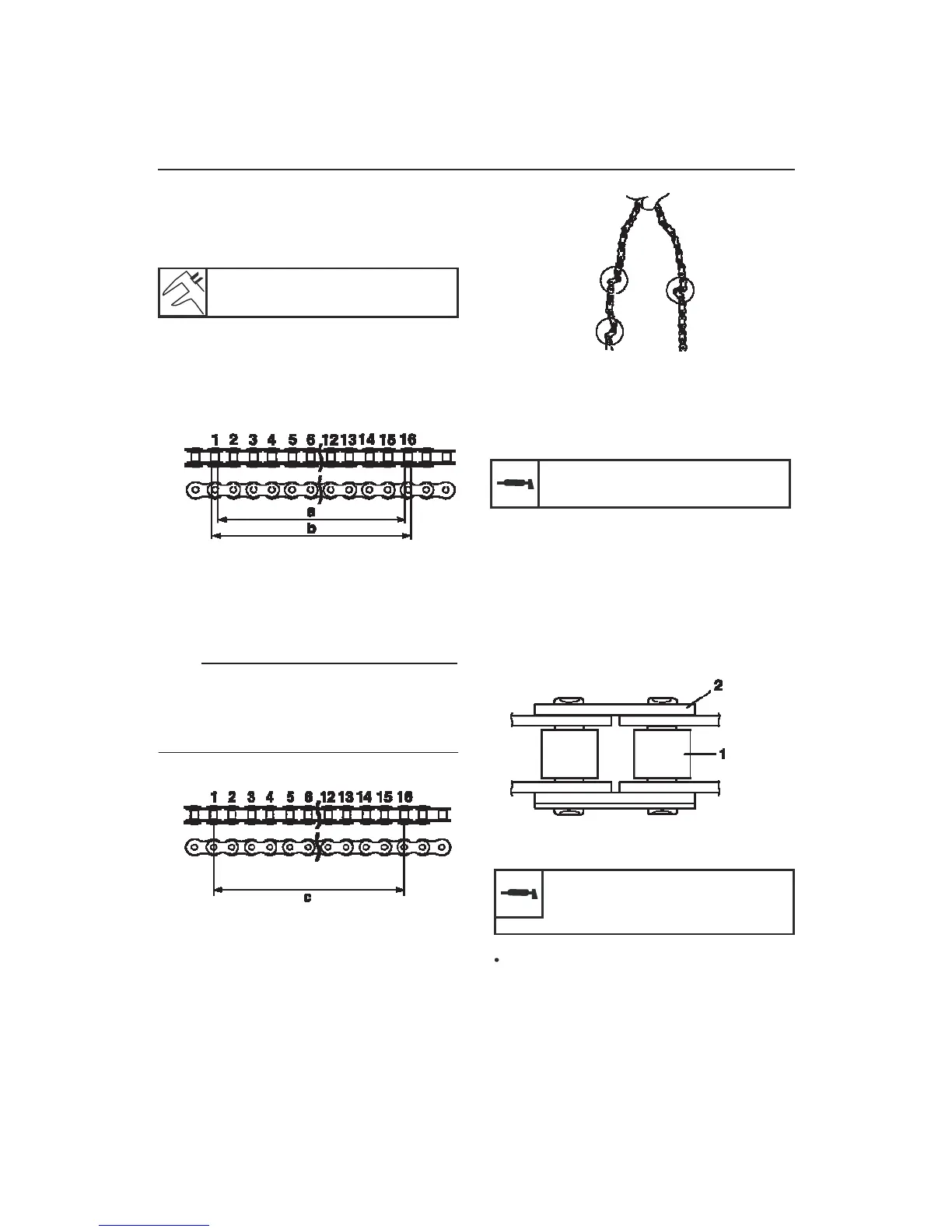

CHECKING THE DRIVE CHAIN
1.
Measure:
•
15 links of the drive chain
OOS
Replace יו
the
chain.

Link length limit of 15
191.5 mm


a. Measure the length "a" between the inner
faces of the roller and the length "b" between
the outer faces of the rollers 15 in a section of
the chain links of the transmission as shown
in the illustration.


3. Clean:
•
Drive chain
a. Clean the drive chain with a clean cloth.
b. Sprinkle with chemical cleaner chain drive
chain and thoroughly clean.

Chain cleaner recommended for
chains with O-ring


4. Check:

b. Calculate the length "c" of section 15 links in
the chain of transmission using the following
formula "c" = (length "a" between the inner
faces of the rollers + length "b" between the
outer faces of the rollers) / 2
NOTE:
•When measuring the segment of 15 links in the
chain of transmission, ensure that the drive
chain is taut.
•Perform the measurement in two or three
different points each time
• Roller transmission chain "1"
Damage /
wear
Replace יו
chain
transmission.
• Side plates of the chain of transmission "2"
Damage / wear
Replace יו
chain
transmission.
Cracks
Replace יו
transmission chain.


2. Check:
•
Drive chain
Stiffness
Clean יו
and lubricate or
replace.






5. Lubricate:
•
Drive chain

Recommended lubricant chain
lubricant suitable for O-ring
chains


Wipe excess lubricant.

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
