Yamaha FZ-16 2015 User Manual

1-6
HERRAMIEN
T
A
S ESPECIALES




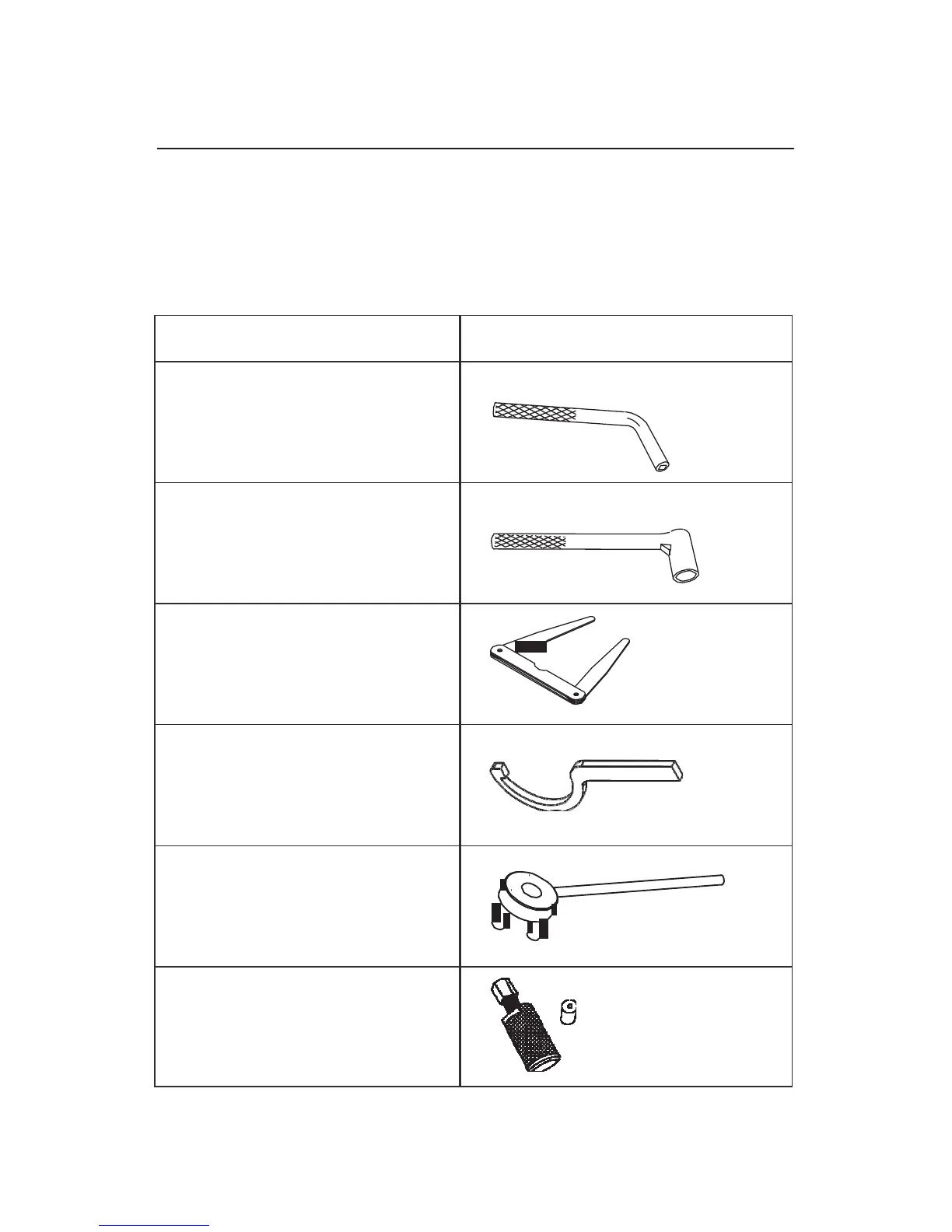

SPECIAL TOOLS

Special tools shown below, are necessary for mounting and precise adjustments. Use only the
appropriate special tools, that will help to prevent damage caused by the use of inappropriate tools or
improvised techniques.






Tool name / nr Tool
Illustration
Tappet screw holder
YSST-706



This tool is used to hold the tappet screw to adjust valve
clearance

Tappet adjustment wrench
YSST-806A




This tool is used to loosen and tighten the nut on the
tappet

Thickness gauges
YSST-815



This tool is used to adjust the valve clearance in an engine

Adjuster rear shock
YSST-821



This tool is used for adjusting the rear shock preload


Magneto Holder
YSST-601B


This tool is used to hold the magnet to remove or install
magneto securing nut and main gear nut
Magneto Puller
YSST-628



This tool is used to remove the magnet with the help of
the magnet holder


Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
