Yamaha FZ-16 2015 User Manual

3-4
MOTOR


Engine idling
1300-1500 r / min

8. Assembly:
2
Barrette
Gasket head cover
New
1
Head cover
See "HEAD" on page 5-5

9. Assembly:
Hose air induction system

Refer to "AIR INDUCTION SYSTEM" on page 6-9

10. Assemble

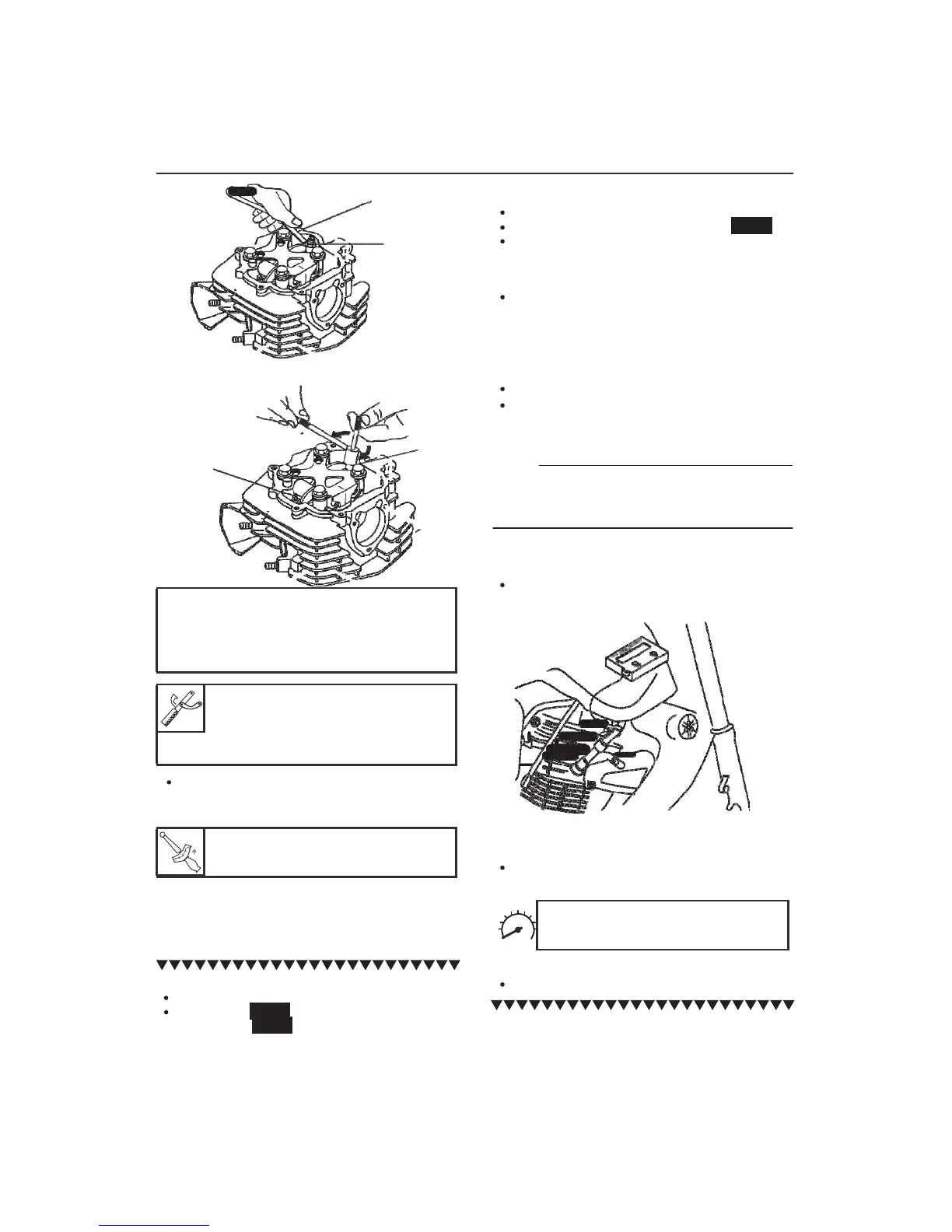

c. Turn the adjustment screw "3" in direction "a" or "b"
to obtain the specified valve clearance.


to
Fuel tank

Side cover
Seat
Refer to "GENERAL CHASSIS" on page 4-2
b
3
ENGINE IDLE ADJUSTMENT
3
NOTE:

Before adjusting the engine idling, must clean the air
filter element, and motor






Direction "a"
Increases valve clearance.
Direction "b"
Reduces valve clearance


Tappet screw holder
YSST-706
Wrench adjustment screw
YSST-806A

Hold the adjusting screw to prevent it from
moving and tighten the nut to specification.

Locknut
13 Nm (1.3 m · kg, 9 lb · ft)


d. Recheck the valve clearance.
e. If the valve clearance is out of specification,
repeat the adjustment until the specified
clearance.
1. Start the engine and warm it up for a few minutes.
2. Install: Digital
Tachometer
(In the spark plug wire)



3. Check:
Engine idling
OOS
Adjust.


7. Assembly:
Access to the screw end of the crankshaft (with the O-ring
New)
Screw access to the time stamp (together with the O-ring
New)
4. Fit:
Engine idling


a. Turn the throttle stop screw "1" in direction "a" or
"b" until the specified idling speed is obtained.

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
