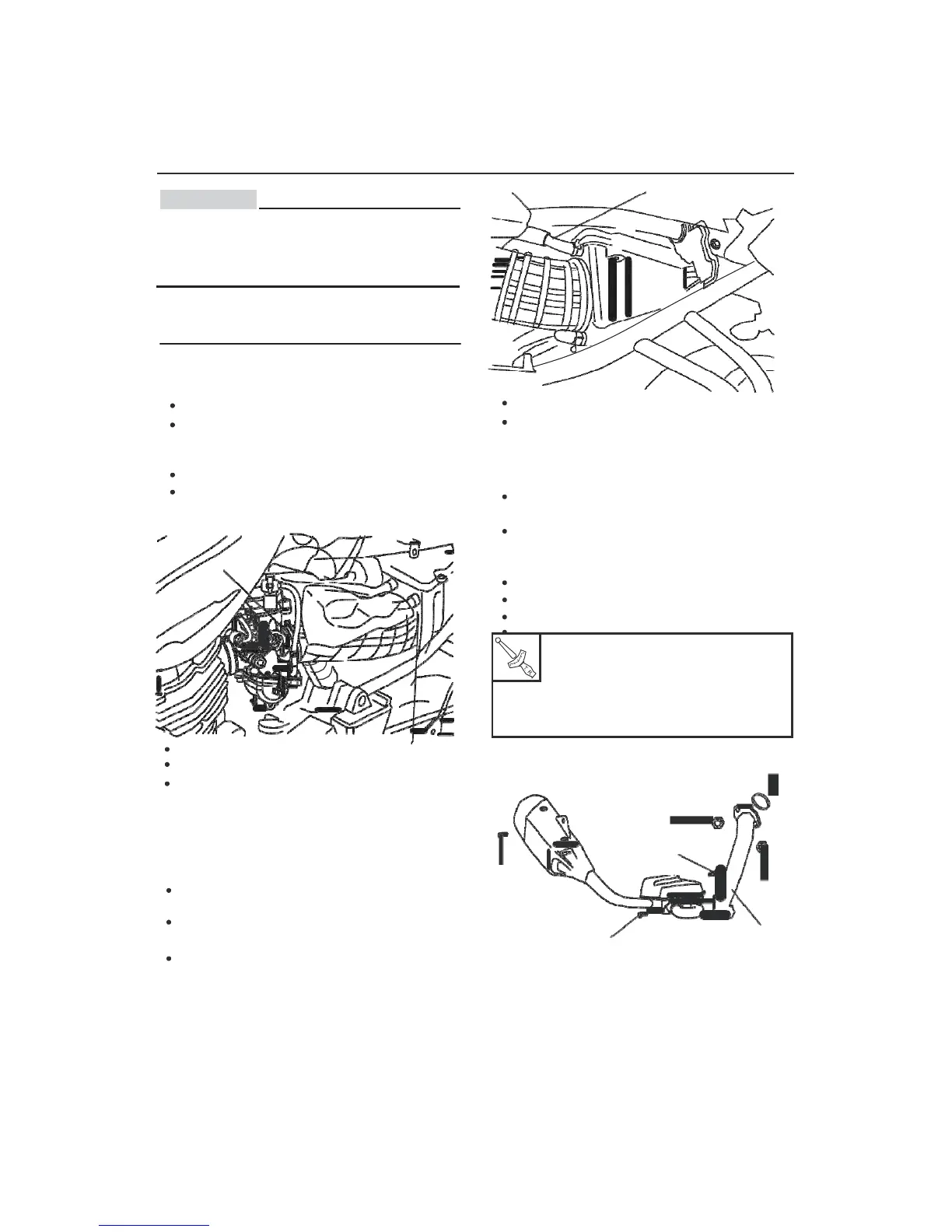

Yamaha FZ-16 2015 User Manual

MOTOR
3-12


יו

1
CAUTION:
Never run the engine without the air filter
element installed. The unfiltered air will cause
rapid wear of engine parts and may damage it.

NOTE:
Make sure the air filter element is properly
installed on the air filter box.
VERIFY UNON CARBURETOR AND
CONNECTING THE AIR FILTER BOX
1.
Remove:
Seat
Fuel tank
Refer to "GENERAL CHASSIS". On page 4-2
2. Check:
Carburetor Union "1"

Cover the air filter box "2" Cracks /
damage
Replace יו






3. Assembly:
Fuel tank
Seat
Refer to "GENERAL CHASSIS" on page 4-2
CHECK THE EXHAUST SYSTEM
1. Verify: Silencer
"1"
Cracks / damage
Replace יו
Exhaust seal "2"
Exhaust gas leaks

1 2.
Check:
Torque
Muffler Nuts "3" muffler screw
"4" Muffler Screw "5"
Replace







3.
Assembly:
2
Fuel tank
Side cover
Seat
Muffler Nut
15 Nm (lower left) Muffler
Screw
20 Nm (2.0m.kg, 15ft.lb)
Screw the muffler (bottom right)
12 Nm (1.2m.kg, 9ft.lb)


2
Refer to "GENERAL CHASSIS"
On page 4-2
3
VERIFY THE BREATHER TUBE
HEAD 4
1. Remove: 5
Seat
3
Refer to "GENERAL CHASSIS" on page 4-1
Side cover (left)
4
1
2. Check:

Breather tube of the butt "1" Cracks /
damage
Replace יו
Loose connections
Connect יו
correctly.

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
