Yamaha FZ-16 2015 User Manual

5-65
TRANSMISI
Ó
N




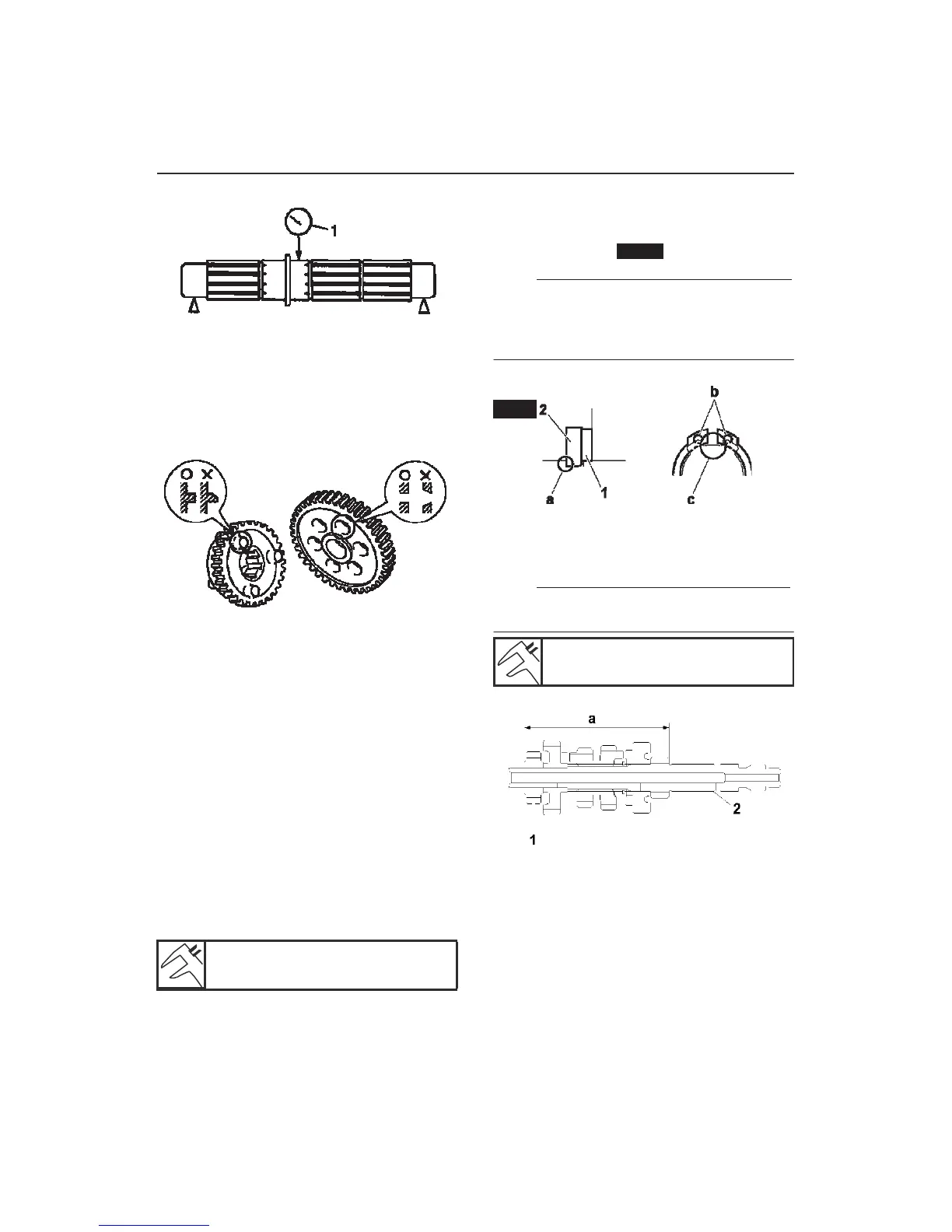

MAIN SHAFT ASSEMBLY AND DRIVE SHAFT
1. Install:
l
Toothed washer "1"
l
Pin lock "2" New
NOTE:
l
Be sure to install the lock pin so that its sharp
edge "to" be back to the ring gear and the gear.
3. Check:
l
Transmission gears
Blue discoloration / pitting / wear
יו
Replace damaged gears.
l
Lace transmission gears
Cracks / damage / rounded edges
יו
Replace defective parts.
l
Make sure the ends of the pin lock
"B" is placed in the groove in the shaft groove
"c".



New







2.
Install:
l
Sprocket second "1"



4.
Check:
l
Gear transmission sprockets. (Each pinion
engages in its respective gear wheel)
Wrong
Reassemble יו the axes of
the
transmission
NOTE:
Press the second pinion on the main shaft "2", as
shown in the illustration.

Mounting depth "a"
106.85-107.05 mm
5. Check:
l
Movement of transmission gears
Rough movement
Replace יו
parts
defective.
CHECKING THE CLUTCH PUSH ROD
1. Check:
l
Long push rod clutch
Cracks / damage / wear
Replace יו
the
long push rod of the clutch.
2. Measure:
l
Deformation limit of the push rod
Other than those specified
Replace יו
long push rod of the clutch

Bending limit of the push rod
0.500 mm


ASSEMBLY SHIFT FORKS DRUM AND
CHANGES

1. Install:
l
Left-shift fork "1"
l
Shift fork-Center "2"
l
Right-shift fork "3"
l
Drum changes "4"
l
Springs
l
Guide bar changes claw "5"
l
Guide bar changes claw "6"

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
