Yamaha FZ-16 2015 User Manual

4-17
FRENO DELANTERO




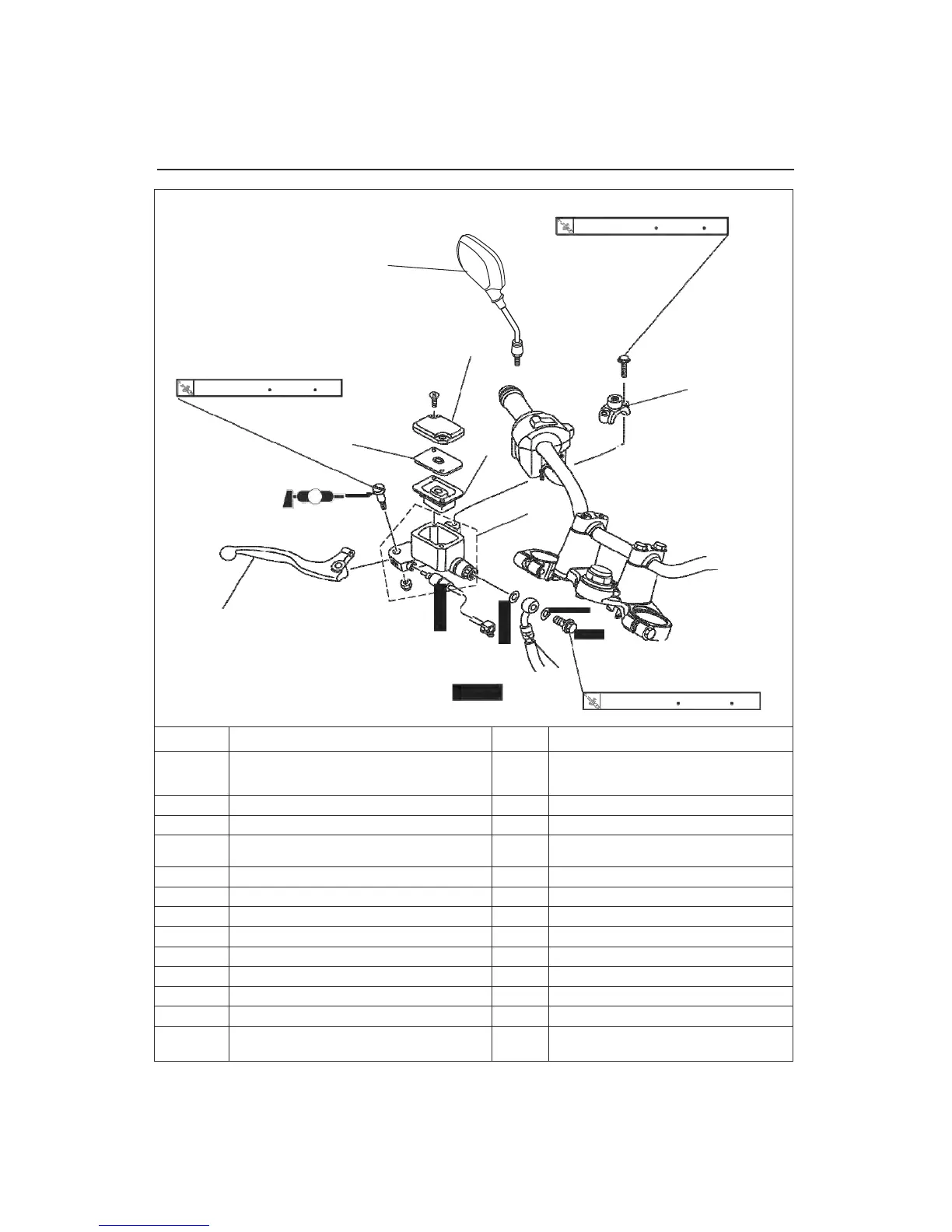

Removing the front brake master cylinder

10 Nm (1.0 m kg, 7ft Ib)

1





2


7 Nm (0.7 m kg, 5ft Ib)
10



3
4



S
11






9
7
5
6
7
8
New
26 Nm (2.6 m kg, 19 ft lb)
Order Procedure / Parts to remove Amount Observations


Brake fluid

Drain.
Refer to "BLEEDING THE HYDRAULIC
BRAKE SYSTEM" on page 3-15
1 Right rear view mirror 1
2 Tank cover brake master cylinder 1

3
Bra Tank diaphragm brake master cylinder
1

4 Reservoir diaphragm brake master cylinder 1
5 Brake Light Switch 1
6 Combination screw brake hose 1
7 Copper washer 2
8 Front brake hose 1
9
Brake Lever
1
10 Clamp the front brake master cylinder 1
11 Front brake master cylinder 1
 
For assembly, reverse the disassembly
procedure.
