Yamaha FZ-16 2015 User Manual

5-57
C
Á
RTER



Rough movement Replace יו.
•
Oil Seals
Damage / wear
Replace יו.


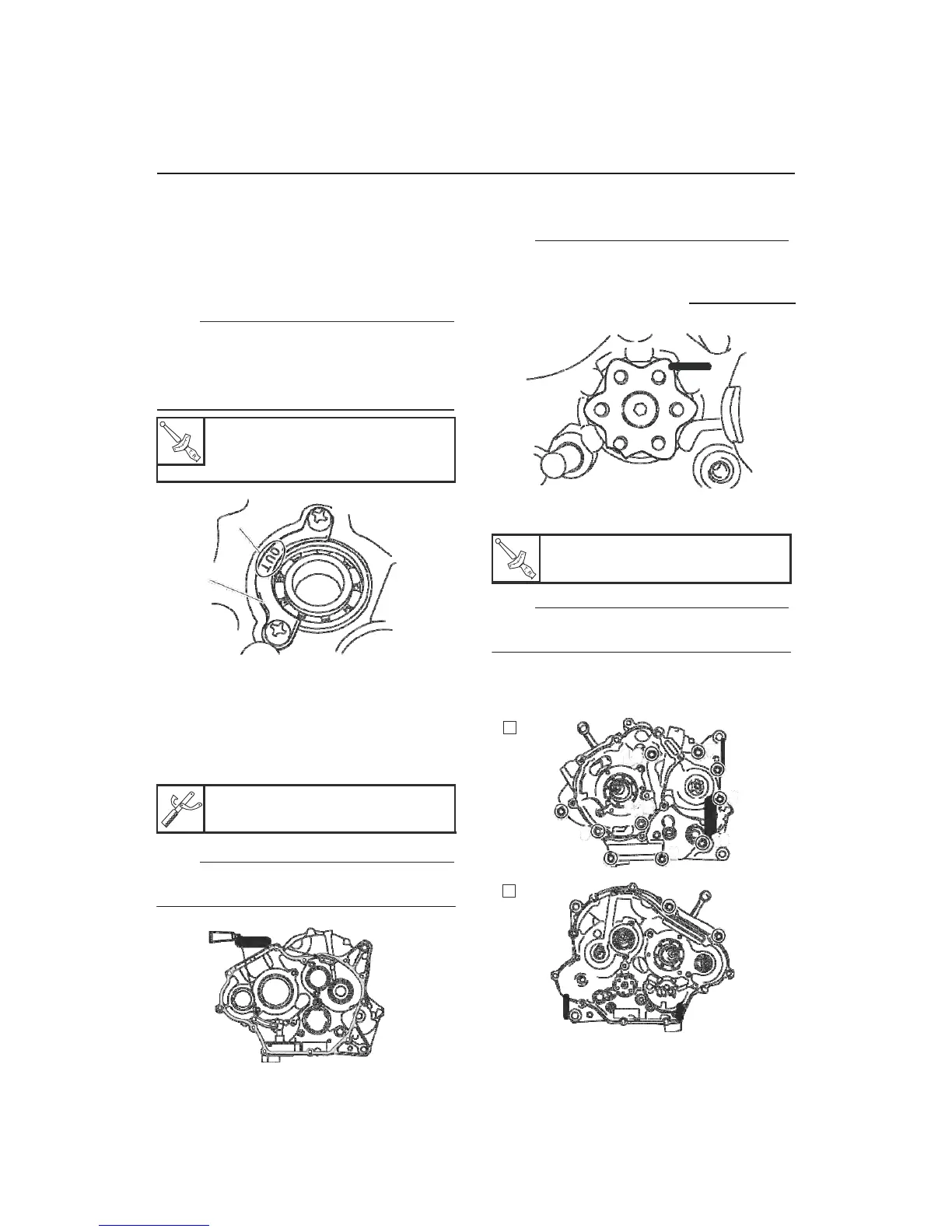

BEARING RETAINER ASSEMBLY
1.
Install:
•Bearing retainer "1"
NOTE:
•Install the bearing retainer "1" marked "OUT"
"to" out.
•Apply a locking agent (LOCTITE) to the screw
threads of the retainer
bearing.
3. Install:
•Housing right
NOTE:
Rotate the drum segment changes "1" to the
position shown in the illustration. In this position,
the teeth of the drum segment changes touch
with the casing during assembly of sump.


1

Bearing retainer screw
7 Nm (0.7 m · kg, 5.1 ft ·
lb) LOCTITE

4. Install:
to
•Crankcase Bolts

Crankcase Bolts
10 Nm (1.0 m · kg, 7.2 ft · lb)
1

NOTE:
Tighten each screw 1/4 turn at a time on stage and in
the correct sequence as shown.
• M6 × 70 mm: "7-9", "11"

CRANKCASE ASSEMBLY
1. Clean all contact surfaces of the seals and
crankcase.
2.
Apply:
•
Sealant
(On the crankcase mating surfaces)
• M6 × 55 mm, "14", "15"
• M6 × 45 mm: "1-5", "10"

A

1.6
7
8

Yamaha Adhesive No.
1215

5
2.12
9

4
10
NOTE:
Do not allow product to come in contact
with the oil passage.
B
3.13
11


14

15







A. Left housing
B. Housing right

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
