4-23
FRENO DELANTERO




Max.

Min

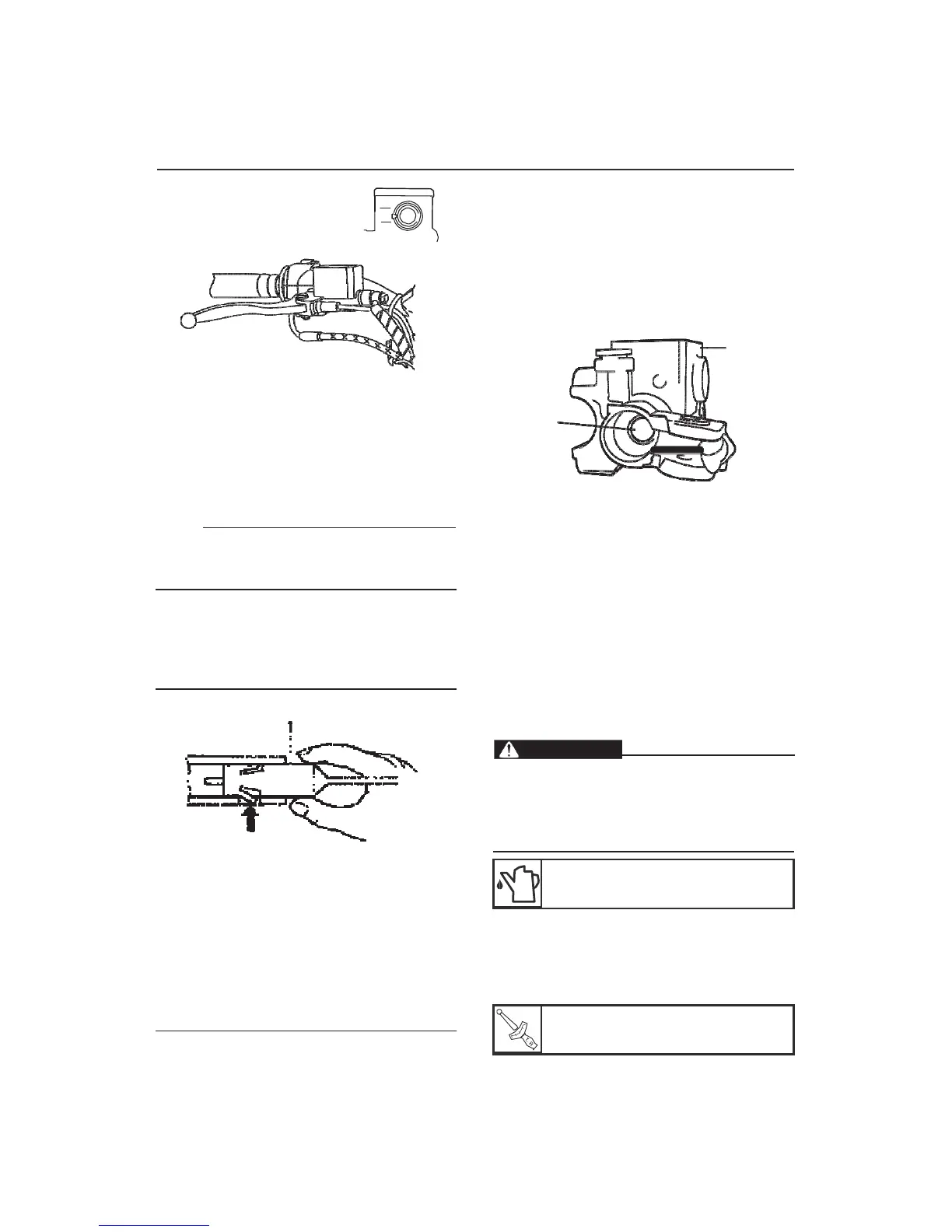

CHECKING THE FRONT BRAKE MASTER
CYLINDER
1. Check:
Brake Master Cylinder "1" Damage /
scratches / wear
Replace יו .
Flights distribution brake fluid "2" (Body brake
caliper)
Obstructed יו Blow with compressed air.

1
7.
7. Check:
Operation of the brake lever
Soft or spongy feeling
Purge יו
the
Brake system
See "PURGING SYSTEM
2
HYDRAULIC BRAKE "on page 3-15.


REMOVAL OF FRONT BRAKE MASTER
CYLINDER
NOTE:
Before disassembling the front brake master
cylinder, drain the brake fluid
entire brake system

1. Disconnect:
Brake light switch front "1"
NOTE:
Press the catch to remove the brake light switch
front brake master cylinder.

2.
Remove:
Combination screw brake hose
Copper Washers
Brake Hose

NOTE:
To collect the remaining brake fluid, place a
container under the master cylinder and the end
of the brake hose.


2.
Check:
Kit brake master cylinder
Damage / scratches / wear
Replace יו .
3. Check:
Deposit brake master cylinder
Damage / scratches / wear
Replace יו .
Diaphragm brake master cylinder
Damage / wear
Replace יו .
4. Check: Brake Hose
Cracks / damage / wear
Replace יו .


ASSEMBLY FRONT BRAKE MASTER
CYLINDER

WARNING
Prior to assembly, all internal brake
components must be cleaned and lubricated
with a cleanser or new brake fluid. Never use
solvents on internal brake components.


Recommended liquid
DOT 3 or DOT 4


INSTALLING THE FRONT BRAKE MASTER
CYLINDER
1. Assembly:
Brake Master Cylinder "1"
Clamp the brake master cylinder "2"

Screw clamp brake master
cylinder
10 Nm (1.0 m · kg, 7 ft · lb)

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
