Yamaha FZ-16 2015 User Manual

5-13
Á
RBOL DE LE V
A
S




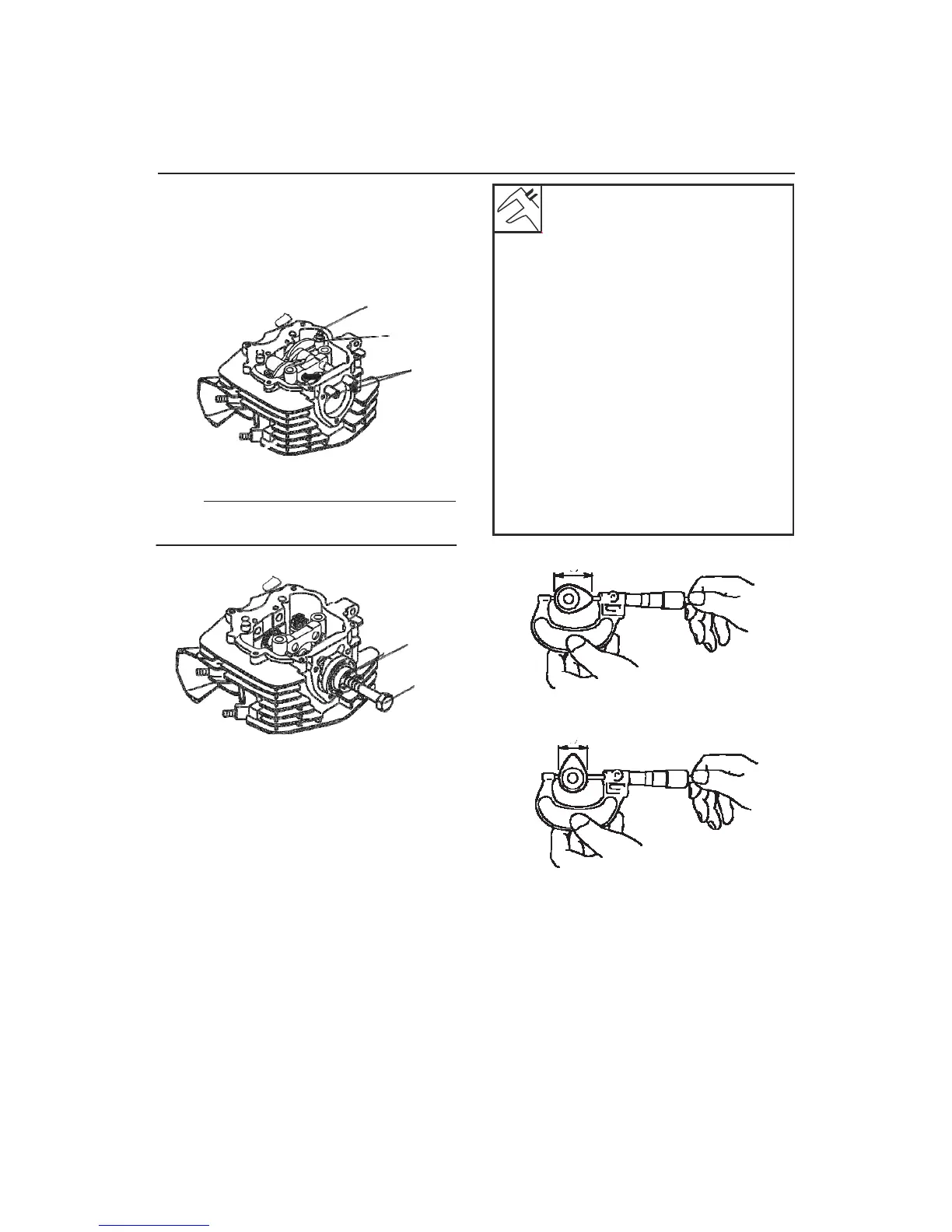

REMOVING THE ROCKER ARMS AND
CAMSHAFT
1. Loosen:
• Locknut "1"
•
Adjustment screw valve clearance "2"
•Rocker "3"
2

1

3





2.
Remove:
•
Camshaft "1"
NOTE:
8-mm screw "2" on the threaded end of the camshaft and then
remove the camshaft.

Dimensions of the camshaft
lobes

Admission
31342-31442 mm
Limit
31,342 mm

Admission B
25166-25266 mm
Limit
25,136 mm

Escape A
31110-31210 mm
Limit
31,080 mm

Escape B
25096-25196 mm
Limit
25,066 mm

b




1


2




CAMSHAFT INSPECTION
1. Check:
•
Camshaft Lobe
Blue discoloration / pitting /
scratches
Replace יו
the camshaft.
2. Measure:
•
Dimension of the lobes Camshaft
"A" and "b"
OOS
Replace יו
the
camshaft.
to










3.
Check:
•
Oil passage camshaft
Blocked
Blow יו
compressed air
㻚

CHECKING THE ROCKER ROCKER AND
AXLES
The following procedure applies to all the rockers
and rockers.
1. Check:
• Rocker
Damage / wear
Replace יו.

Yamaha FZ-16 2015 Specifications

General

Engine Type	Air-cooled, 4-stroke, SOHC, 2-valve
Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	9.5:1
Maximum Power	14 PS @ 7500 rpm
Fuel System	Carburetor
Transmission Type	5-speed constant mesh
Front Suspension	Telescopic fork
Rear Suspension	Monocross
Front Brake	Disc
Rear Brake	Drum
Front Tire	100/80-17
Rear Tire	140/60-R17
Fuel Tank Capacity	12 liters
Kerb Weight	137 kg
Overall Length	1, 975 mm
Overall Width	770 mm
Overall Height	1, 045 mm
Seat Height	790 mm
Wheelbase	1, 335 mm
Ground Clearance	160 mm
Starting System	Electric start
Lubrication System	Wet sump
Clutch Type	Wet, multiple-disc
Frame Type	Diamond
Maximum Torque	14 Nm @ 6000 rpm
Ignition System	CDI
