CHASSIS
3-21
EAS29360
CHASSIS
EAS21170

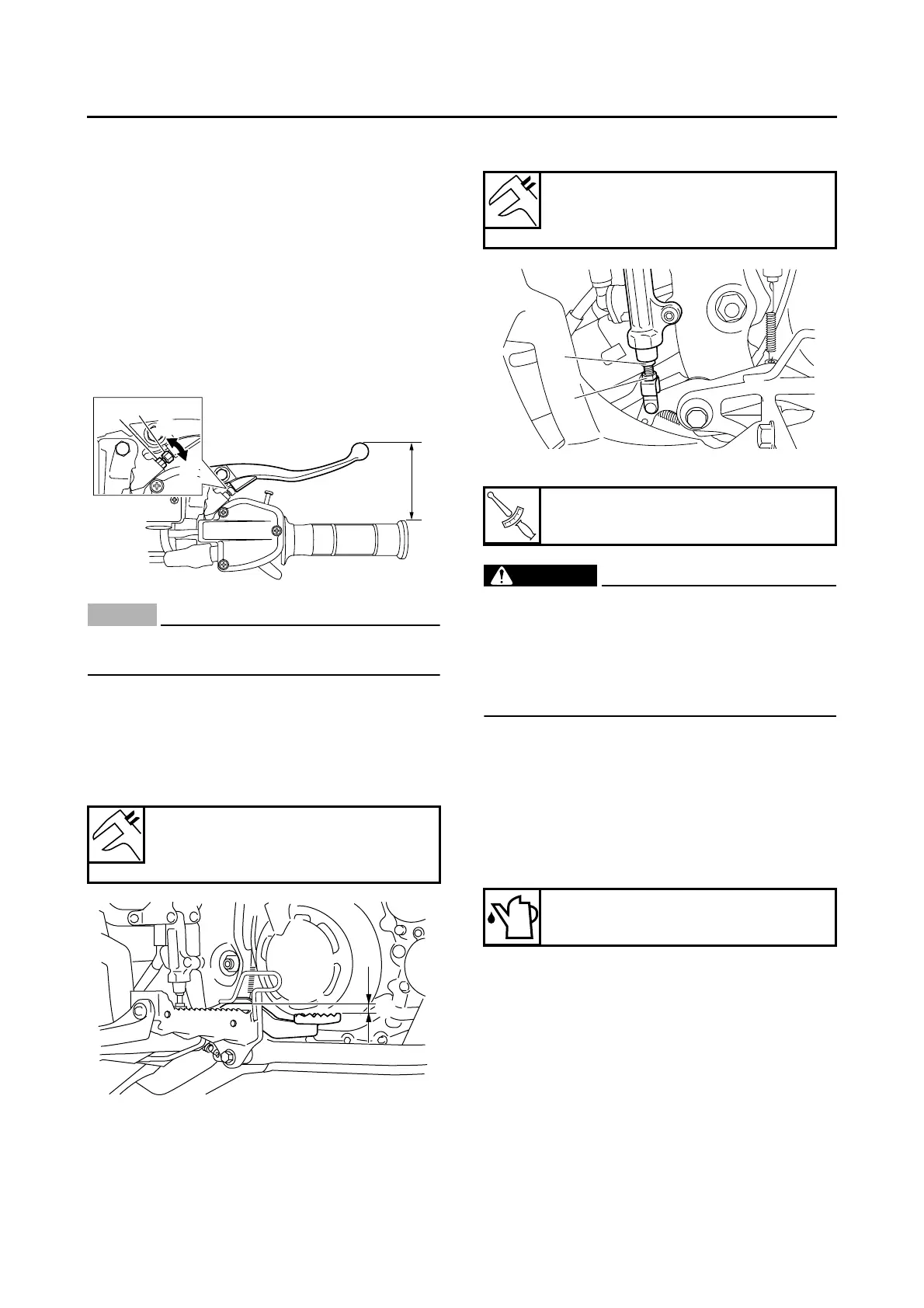

ADJUSTING THE FRONT DISC BRAKE
1. Adjust:
• Brake lever position “a”
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. While pushing the brake lever forward, loos-
en the locknut “1”.
b. While pushing the brake lever forward, turn
the adjusting bolt “2” in direction “b” or “c” until
the brake lever is in the desired position.
c. Tighten the locknut “1”.
NOTICE
ECA1S3L005
Be sure to tighten the locknut, as failing to
do so will cause poor brake performance.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS29180
ADJUSTING THE REAR DISC BRAKE
1. Measure:
• Brake pedal height “a”
Out of specification → Adjust.
2. Adjust:
• Brake pedal height
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Loosen the locknut “1”.
b. Turn the adjusting bolt “2” until the brake ped-
al height is within the specified limits.
c. Tighten the locknut.
WARNING
EWA14900
After this adjustment is performed, lift the
front and rear wheels off the ground by plac-
ing a block under the engine, and spin the
rear wheels to ensure there is no brake drag.
If any brake drag is noticed perform the
above steps again.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS21240
CHECKING THE BRAKE FLUID LEVEL
1. Place the vehicle on a level surface.
2. Check:
• Brake fluid level
Below the minimum level mark “a” → Add the
recommended brake fluid to the proper level.
Brake pedal position (from foot-
rest)
15.3 mm (0.60 in)
2
1
a
b
c
a
Brake pedal position (from foot-
rest)
15.3 mm (0.60 in)
T
R
.
.
Locknut
17 Nm (1.7 m·kg, 12 ft·lb)
Recommended fluid
DOT 4
2
1
