ELECTRICAL COMPONENTS
8-68
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Disconnect the spark plug cap from the spark
plug.

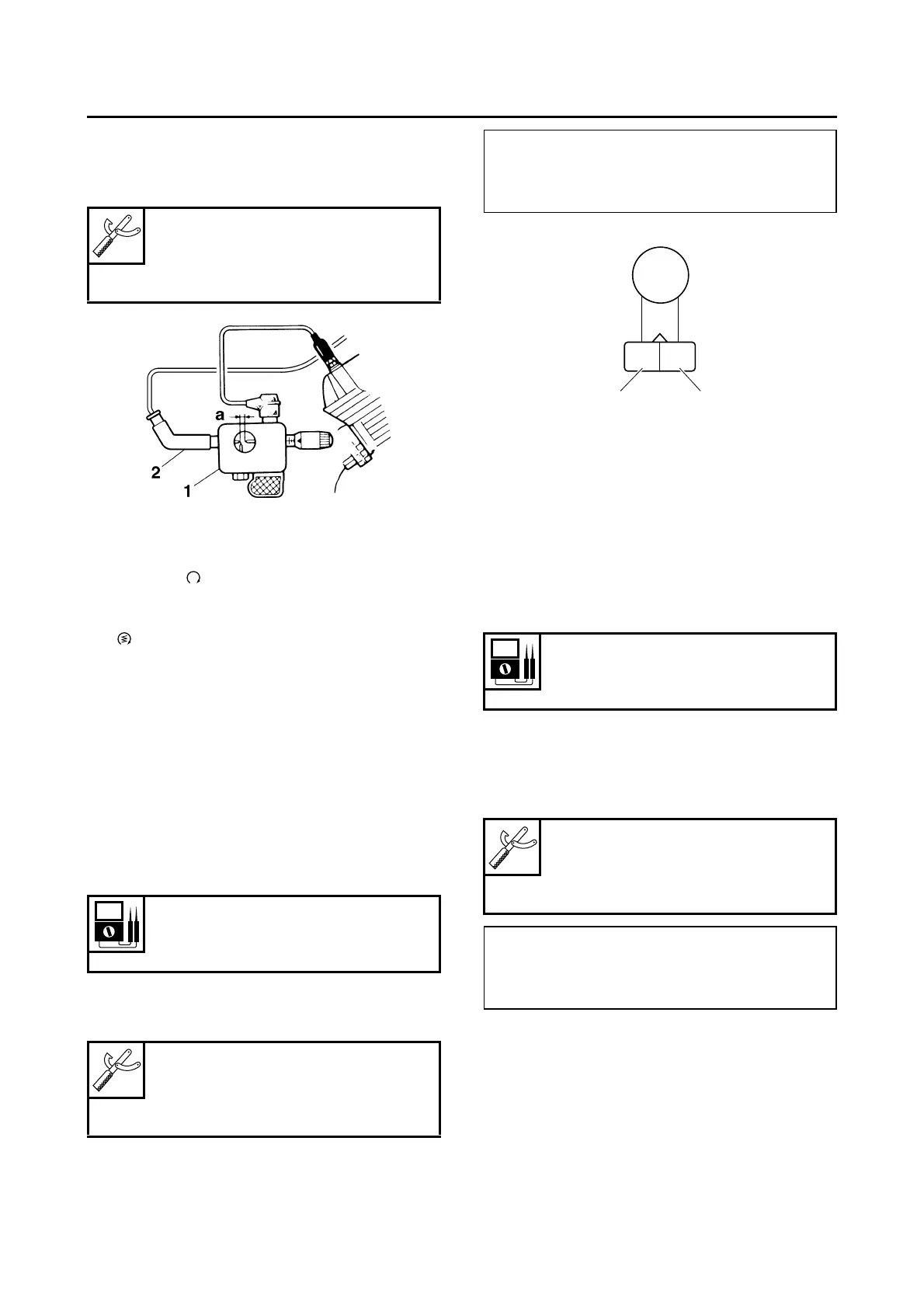

b. Connect the ignition checker “1” as shown.
c. Turn the main switch to “ON” and engine stop
switch to “”.
d. Measure the ignition spark gap “a”.
e. Crank the engine by pushing the start switch
“” and gradually increase the spark gap un-
til a misfire occurs.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS28120
CHECKING THE CRANKSHAFT POSITION
SENSOR
1. Disconnect:
• Crankshaft position sensor coupler
(from the wire harness)
2. Check:
• Crankshaft position sensor resistance
Out of specification → Replace the crank-
shaft position sensor/stator assembly.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Connect the pocket tester (Ω × 100) to the
crankshaft position sensor coupler as shown.
b. Measure the crankshaft position sensor re-
sistance.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS28130
CHECKING THE LEAN ANGLE SENSOR
1. Remove:
• Lean angle sensor
2. Check:
• Lean angle sensor output voltage
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Connect the lean angle sensor coupler to the
wire harness.
b. Connect the pocket tester (DC 20 V) to the
lean angle sensor coupler as shown.
Ignition checker
90890-06754
Opama pet-4000 spark checker
YM-34487
2. Spark plug cap
Crankshaft position sensor resis-
tance
192.0–288.0 Ω at 20 °C (68 °F)
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe
blue/yellow “1”
• Negative tester probe
green/white “2”
Lean angle sensor output voltage
Less than 65° “a”: 0.4–1.4 V
More than 65° “b”: 3.7–4.4 V
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe
blue “1”
• Negative tester probe
yellow/green “2”
G/WL/Y
12
