Yamaha Raptor 700R 2009 Service Manual

REAR WHEELS
4-9
EAS22020
REAR WHEELS

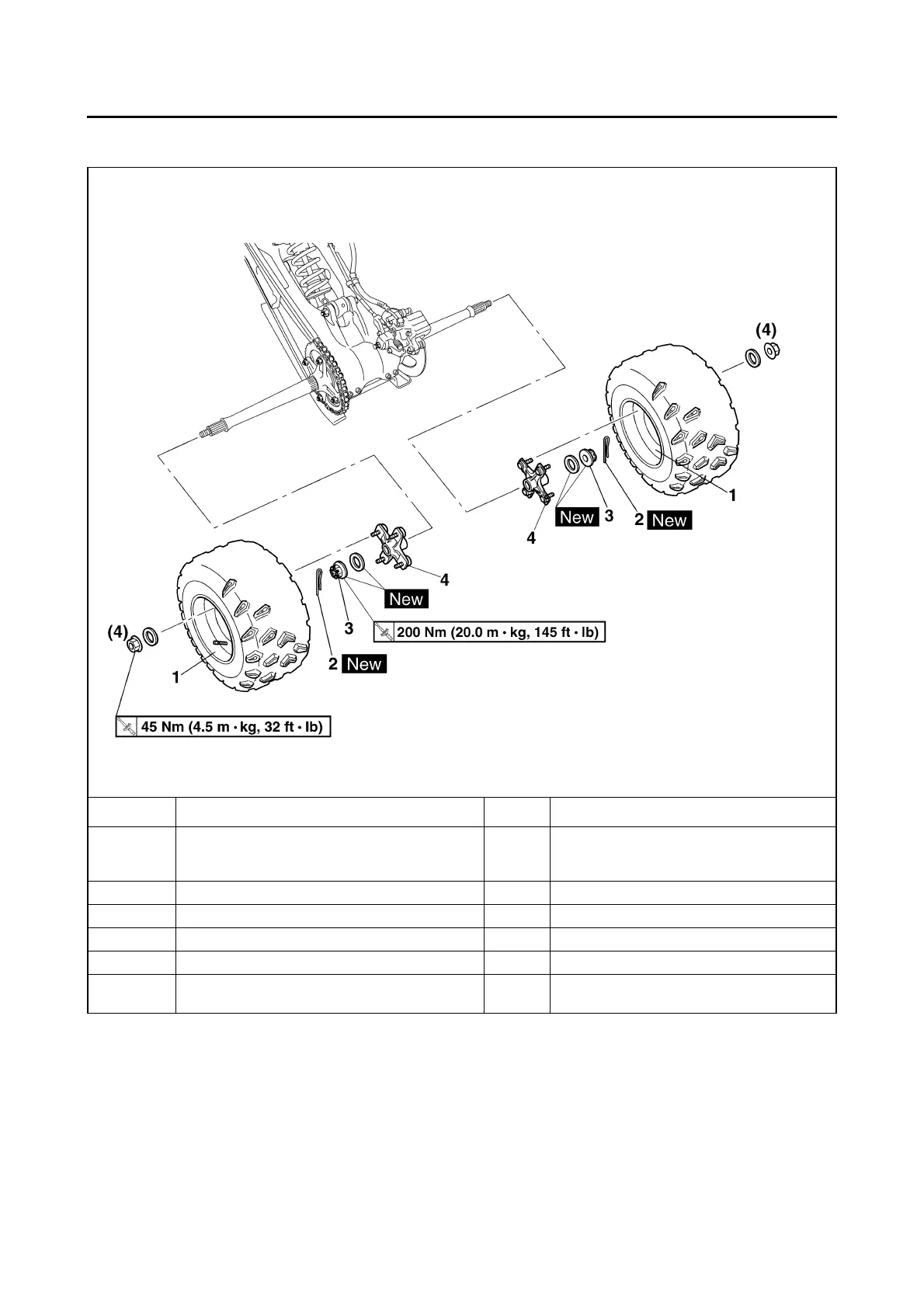

Removing the rear wheels
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the rear wheels.
Place the vehicle on a level surface.
1 Rear wheel 2
2Cotter pin 2
3 Rear wheel axle nut 2
4 Rear wheel hub 2
For installation, reverse the removal proce-
dure.
