FRONT WHEELS
4-8
2. Check:
• Brake disc
Refer to “CHECKING THE FRONT BRAKE
DISCS” on page 4-22.
EAS29420

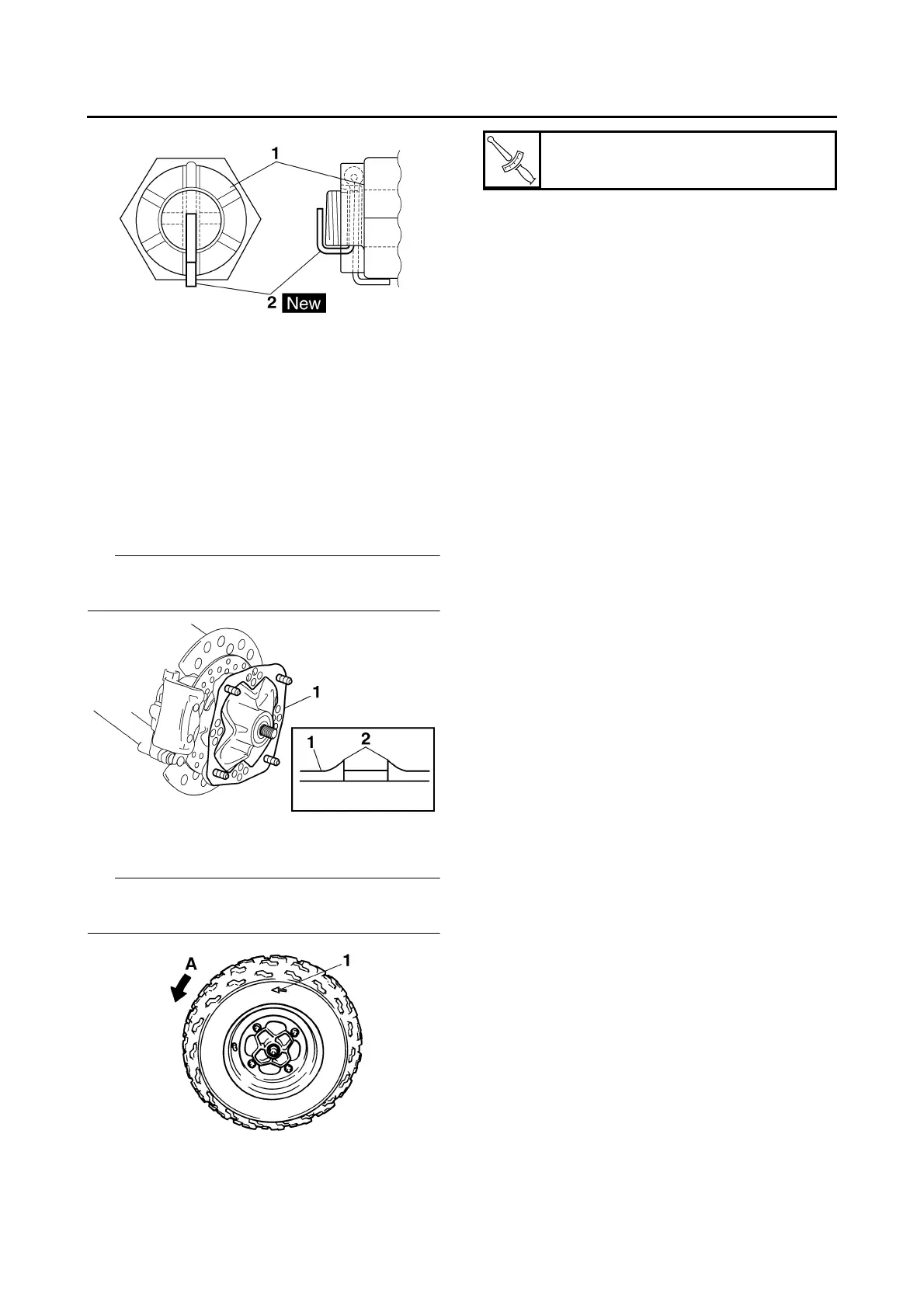

INSTALLING THE FRONT WHEELS
The following procedure applies to both of the
front wheels.
1. Install:
• Brake disc guard (outer) “1”
T
IP
Install the brake disc guard (outer) with the
punched burrs “2” on the wheel hub side.
2. Install:
• Wheel
T
IP
The arrow mark “1” on the tire must point in the
direction of rotation “A” of the wheel.
3. Tighten:
• Wheel nut
T
R
.
.
Wheel nut
45 Nm (4.5 m·kg, 32 ft·lb)
