SHIFT SHAFT
5-53
EAS25410
SHIFT SHAFT

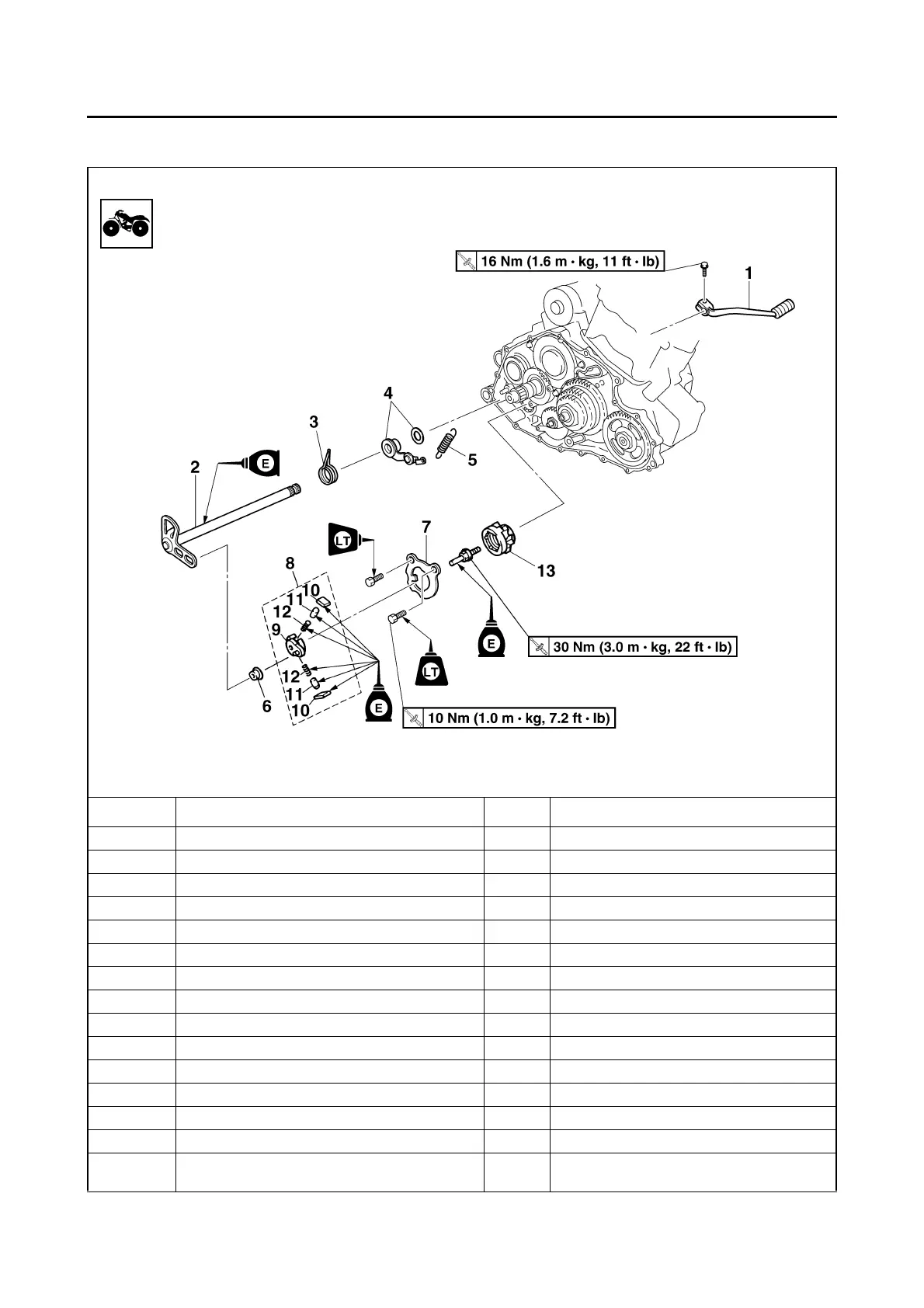

Removing the shift shaft and stopper lever
Order Job/Parts to remove Q’ty Remarks
Clutch housing Refer to “CLUTCH” on page 5-40.
1 Shift pedal 1
2 Shift shaft 1
3 Shift shaft spring 1
4 Stopper lever/washer 1/1
5 Stopper lever spring 1
6Roller 1
7 Shift guide 1
8 Shift lever assembly 1
9 Pawl holder 1
10 Pawl 2
11 Pawl pin 2
12 Spring 2
13 Shift drum segment 1
For installation, reverse the removal proce-
dure.
