FUEL TANK
7-3
EAS1S3L011

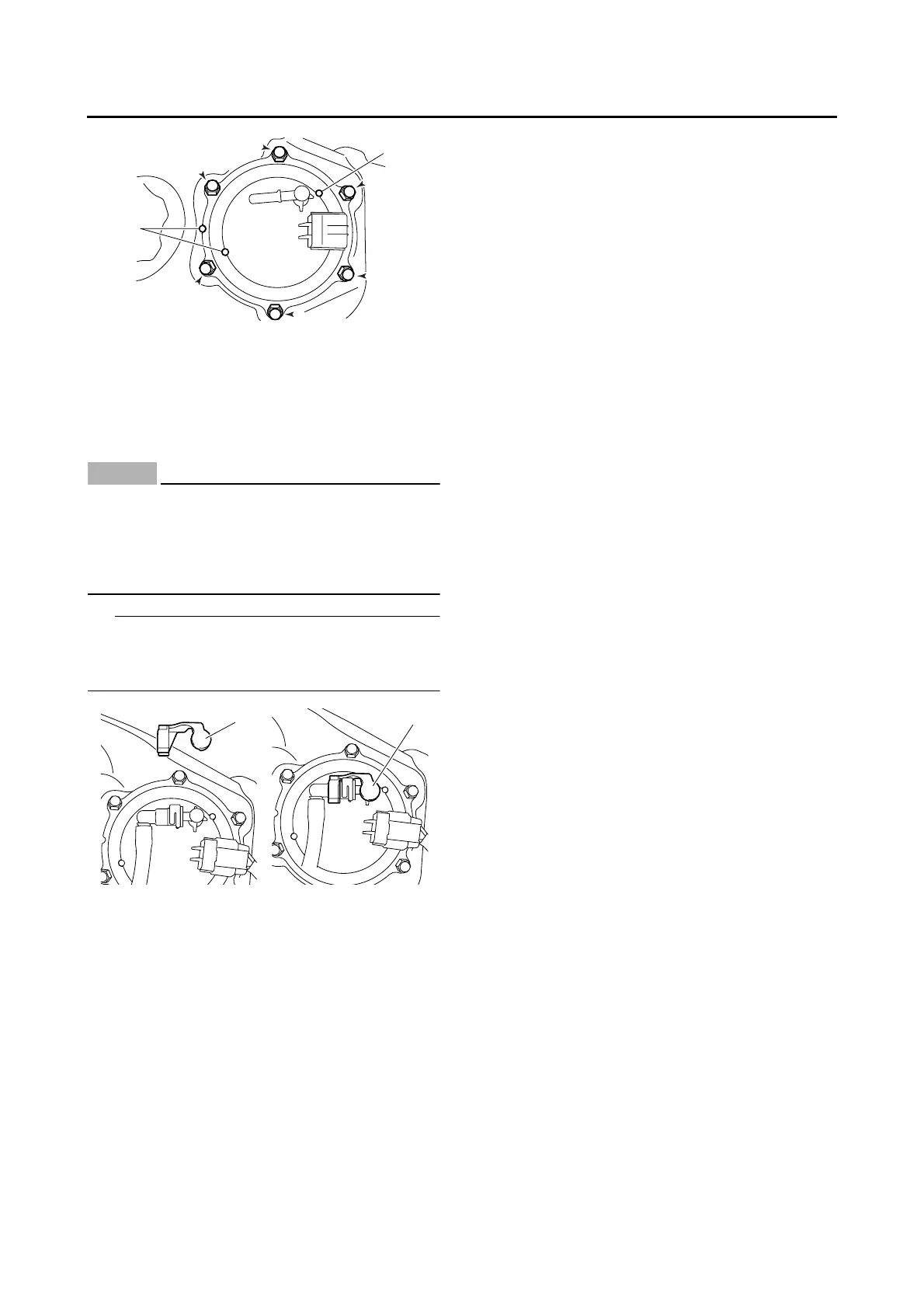

INSTALLING THE FUEL HOSE
1. Install:
• Fuel hose
• Fuel hose holder
• Fuel pump coupler
NOTICE
ECA1S3L007
When installing the fuel hose, make sure that
it is securely connected, and that the fuel
hose holder is in the correct position, other-
wise the fuel hose will not be properly in-
stalled.
T
IP
Install the fuel hose connector cover “1” securely
onto the fuel tank until a distinct “click” is heard,
and then make sure that it does not come loose.
1
3
5
2
4
6
a
a
11
