ENGINE
3-13
11.Fill:
• Oil tank
• Crankcase
(with the specified amount of the recom-
mended engine oil)
12.Install:
• Dipstick
• Engine oil filler bolt
13.Start the engine, warm it up for several min-
utes, and then turn it off.
14.Check:
• Engine
(for engine oil leaks)
15.Check:
• Engine oil level
Refer to “CHECKING THE ENGINE OIL
LEVEL” on page 3-11.

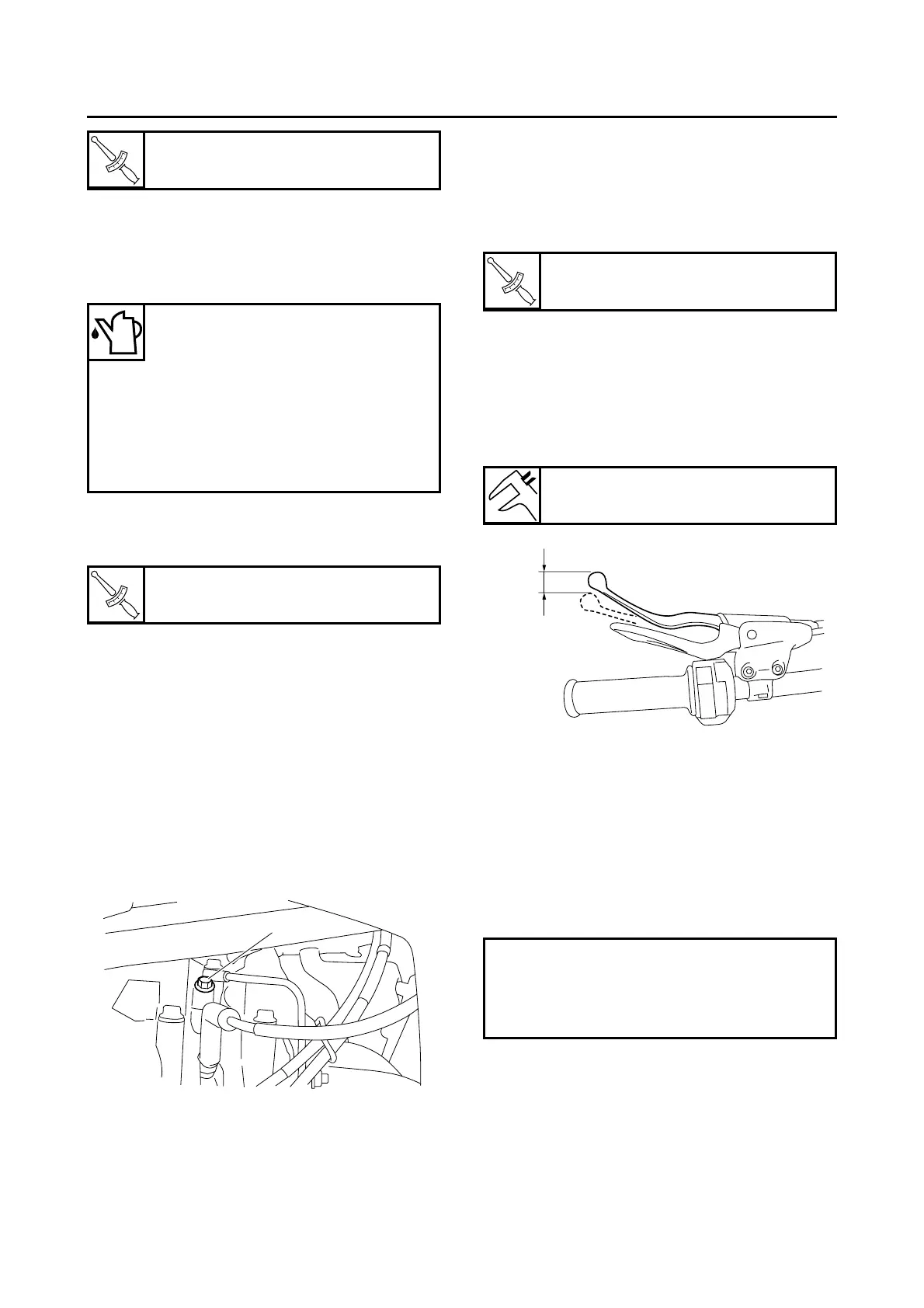

16.Check:
• Engine oil pressure
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Slightly loosen the oil gallery bolt “1”.
b. Start the engine and keep it idling until engine
oil starts to seep from the oil gallery bolt. If no
engine oil comes out after one minute, turn
the engine off so that it will not seize.
c. Check the engine oil passages, the oil filter
element and the oil pump for damage or leak-
age. Refer to “OIL PUMP” on page 5-50.
d. Start the engine after solving the problem(s)
and check the engine oil pressure again.
e. Tighten the oil gallery bolt to specification.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS1S3L043
ADJUSTING THE CLUTCH LEVER FREE
PLAY
1. Check:
• Clutch lever free play “a”
Out of specification → Adjust.
2. Adjust:
• Clutch lever free play
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
Handlebar side
a. Pull back the rubber cover “1”.
b. Loosen the locknut “2”.
c. Turn the adjusting bolt “3” clockwise or coun-
terclockwise until the specified clutch lever
free play is obtained.
d. Tighten the locknut.
T
R
.
.
Oil filter element drain bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
Engine oil quantity
Total amount
2.30 L (2.43 US qt, 2.02 Imp.qt)
Without oil filter element replace-
ment
1.75 L (1.85 US qt, 1.54 Imp.qt)
With oil filter element replace-
ment
1.85 L (1.96 US qt, 1.63 Imp.qt)
T
R
.
.
Oil filter bolt
12 Nm (1.2 m·kg, 8.7 ft·lb)
1
T
R
.
.
Oil gallery bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
Clutch lever free play (lever end)
5.0–10.0 mm (0.20–0.39 in)
Clockwise
Clutch lever free play is increased.
Counterclockwise
Clutch lever free play is decreased.
a
