Yamaha Raptor 700R 2009 Service Manual

CAMSHAFT
5-14
EAS23730
CAMSHAFT

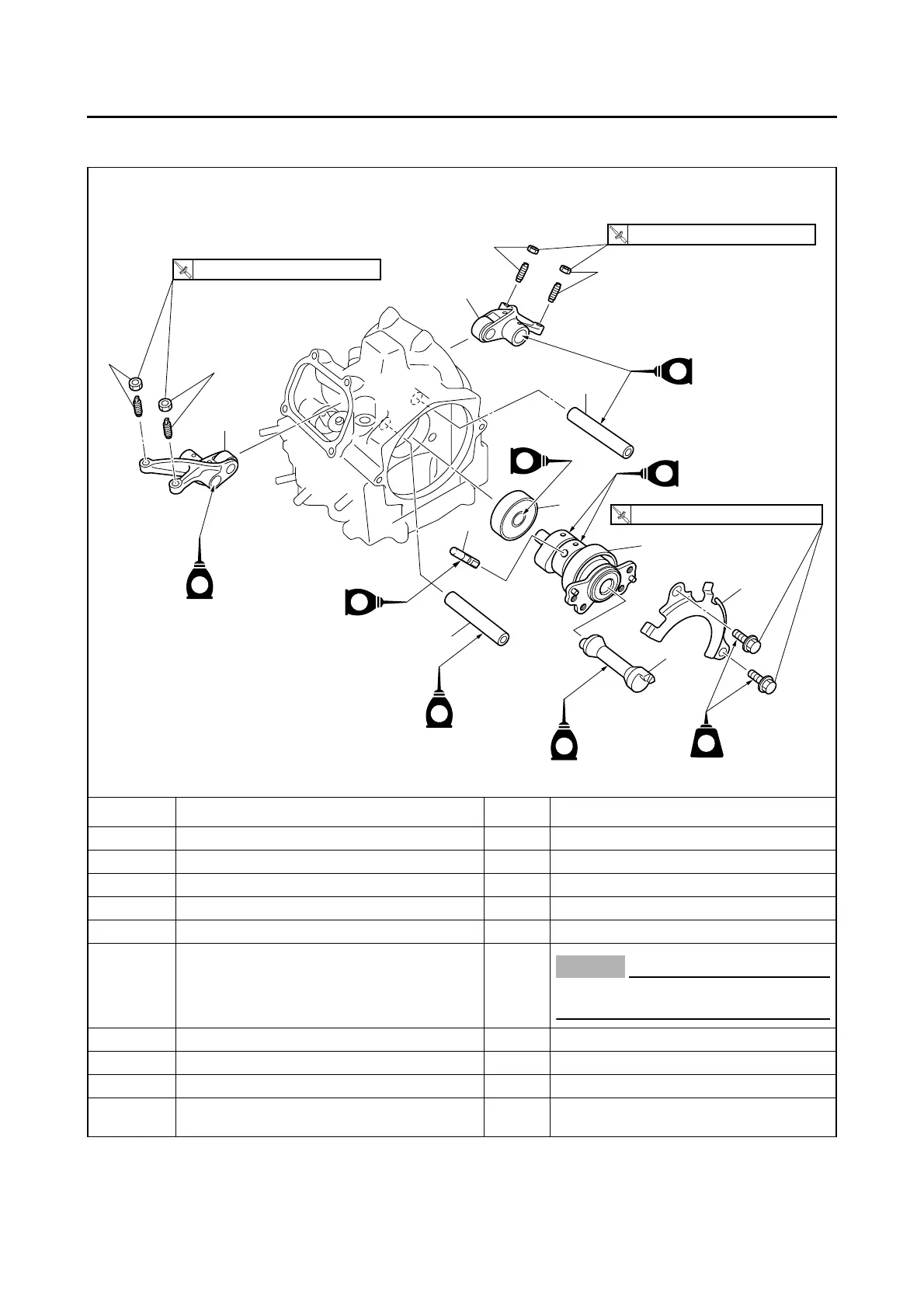

Removing the rocker arms and camshaft
Order Job/Parts to remove Q’ty Remarks
Cylinder head Refer to “CYLINDER HEAD” on page 5-8.
1 Camshaft retainer 1
2 Rocker arm shaft 2
3 Rocker arm 2
4 Locknut/valve adjuster 4/4
5 Camshaft 1
NOTICE
ECA1S3L017
Do not disassemble the camshaft assem-
bly.
6 Decompressor lever 1
7 Decompressor lever pin 1
8 Bearing 1
For installation, reverse the removal proce-
dure.
E
E
T
R
.
.
14 Nm (1.4 m
•
kg, 10 ft
•
Ib)
T
R
.
.
14 Nm (1.4 m
•
kg, 10 ft
•
Ib)
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
E
E
LT
1
5
7
6
2
E
8
3
2
3
4
4
4
4
E
M
