Yamaha Raptor 700R 2009 Service Manual

GENERAL CHASSIS
4-1
EAS21830
GENERAL CHASSIS

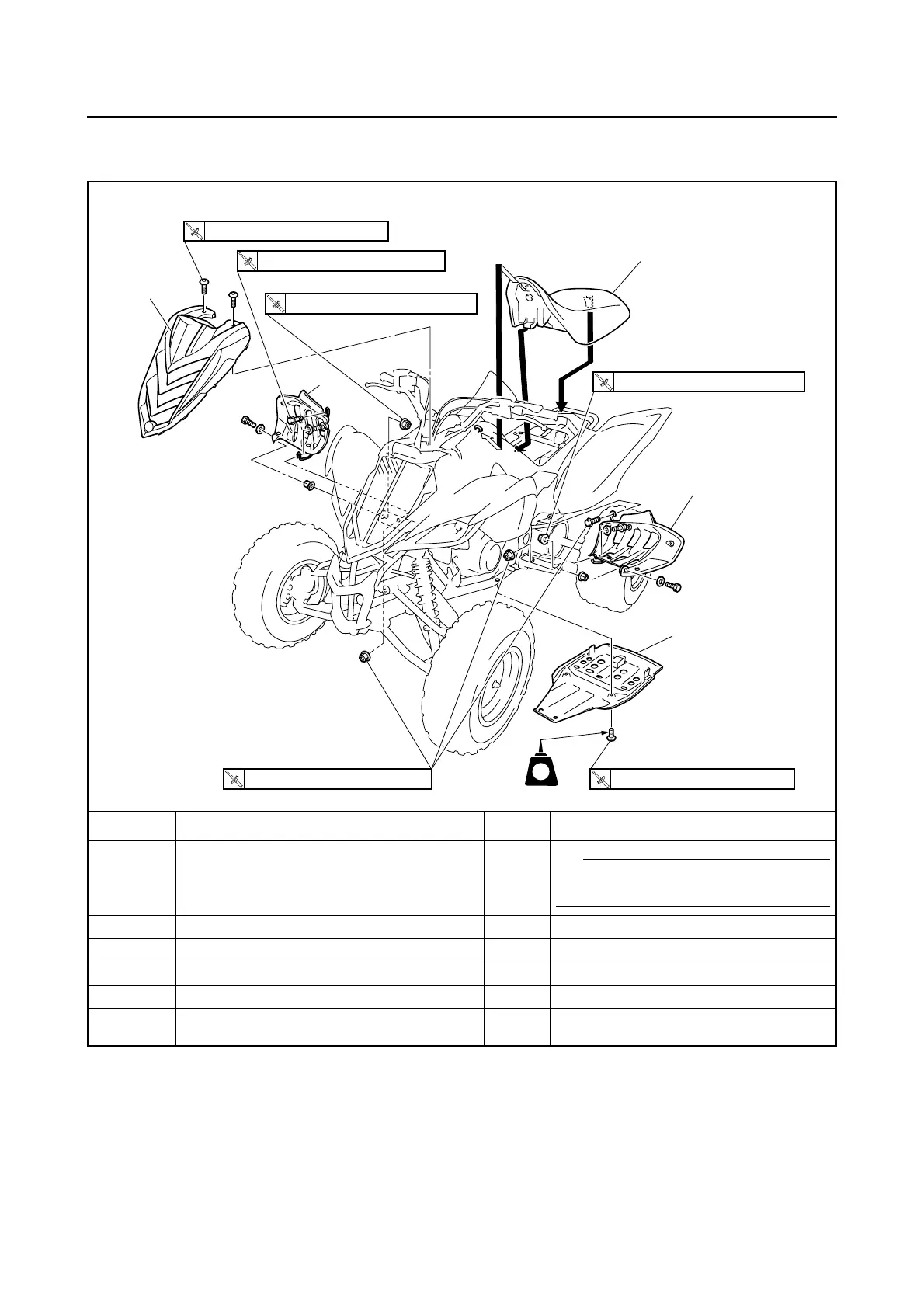

Removing the seat, front panel, foot protectors and engine skid plate
Order Job/Parts to remove Q’ty Remarks
1 Seat 1
T
IP
Pull back the seat lock lever, than pull up on
the rear of the seat.
2 Front panel 1
3 Left foot protector 1
4 Right foot protector 1
5 Engine skid plate 1
For installation, reverse the removal proce-
dure.
(4)
1
4
3
5
2
LT
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
.R.
16 Nm (1.6 m
•
kg, 11 ft
•
Ib)
T
.R.
16 Nm (1.6 m
•
kg, 11 ft
•
Ib)
T
.R.
13 Nm (1.3 m
•
kg, 9.4 ft
•
Ib)
T
.R.
13 Nm (1.3 m
•
kg, 9.4 ft
•
Ib)
T
.R.
4 Nm (0.4 m
•
kg, 2.9 ft
•
Ib)
T
.R.
