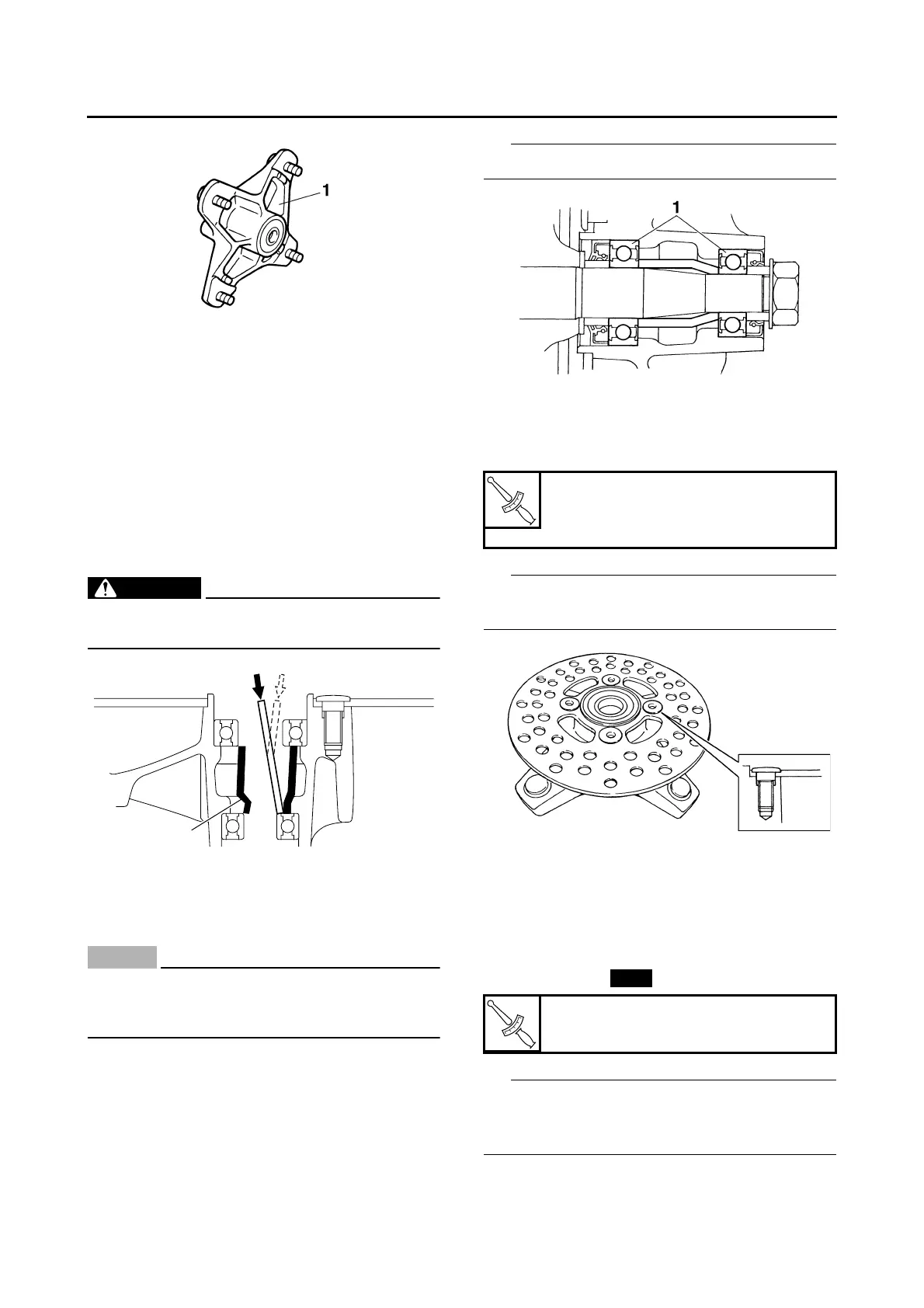

FRONT WHEELS
4-7
2. Check:
• Wheel bearings
Wheel hub play/wheel turns roughly → Re-
place.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Clean wheel hub exterior.
b. Drive bearing out by pushing spacer aside
and tapping around perimeter of bearing in-
ner race. Use a soft metal drift punch and a
hammer. The spacer “1” floats between the
bearings. Remove both bearings as de-
scribed.
WARNING
EWA1S3L004
Eye protection is recommended when using
striking tools.
c. To install the wheel bearings, reverse the
above sequence. Use a socket that matches
outside diameter of bearing outer race to
drive in bearing.
NOTICE
ECA1S3L010
Do not strike the center race or balls of the
bearing. Contact should be made only with
the outer race.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS29400
INSTALLING THE FRONT WHEEL HUB
BEARINGS
1. Install:
• Bearings “1”
IP
Face the oil seal side of the bearing inward.
EAS1S3L013
INSTALLING THE FRONT BRAKE DISCS
1. Install:
• Brake discs
IP
Install the brake disc so that the recessed por-
tion of the bolt hole faces away from the hub.
EAS29410
INSTALLING THE FRONT WHEEL HUBS
The following procedure applies to both of the
front wheel hubs.
1. Install:
• Axle nut “1”
• Cotter pin “2”
IP
If an axle nut slot is not aligned with the cotter pin
hole on either side of the axle, further tighten the
axle nut until a slot is aligned with the hole.
1
T
R
.
.
Brake disc bolt
28 Nm (2.8 m·kg, 20 ft·lb)
LOCTITE®
T
R
.
.
Axle nut
70 Nm (7.0 m·kg, 50 ft·lb)
New
To Next Page
