Yamaha Raptor 700R 2009 Service Manual

ENGINE REMOVAL
5-2
EAS1S3L022

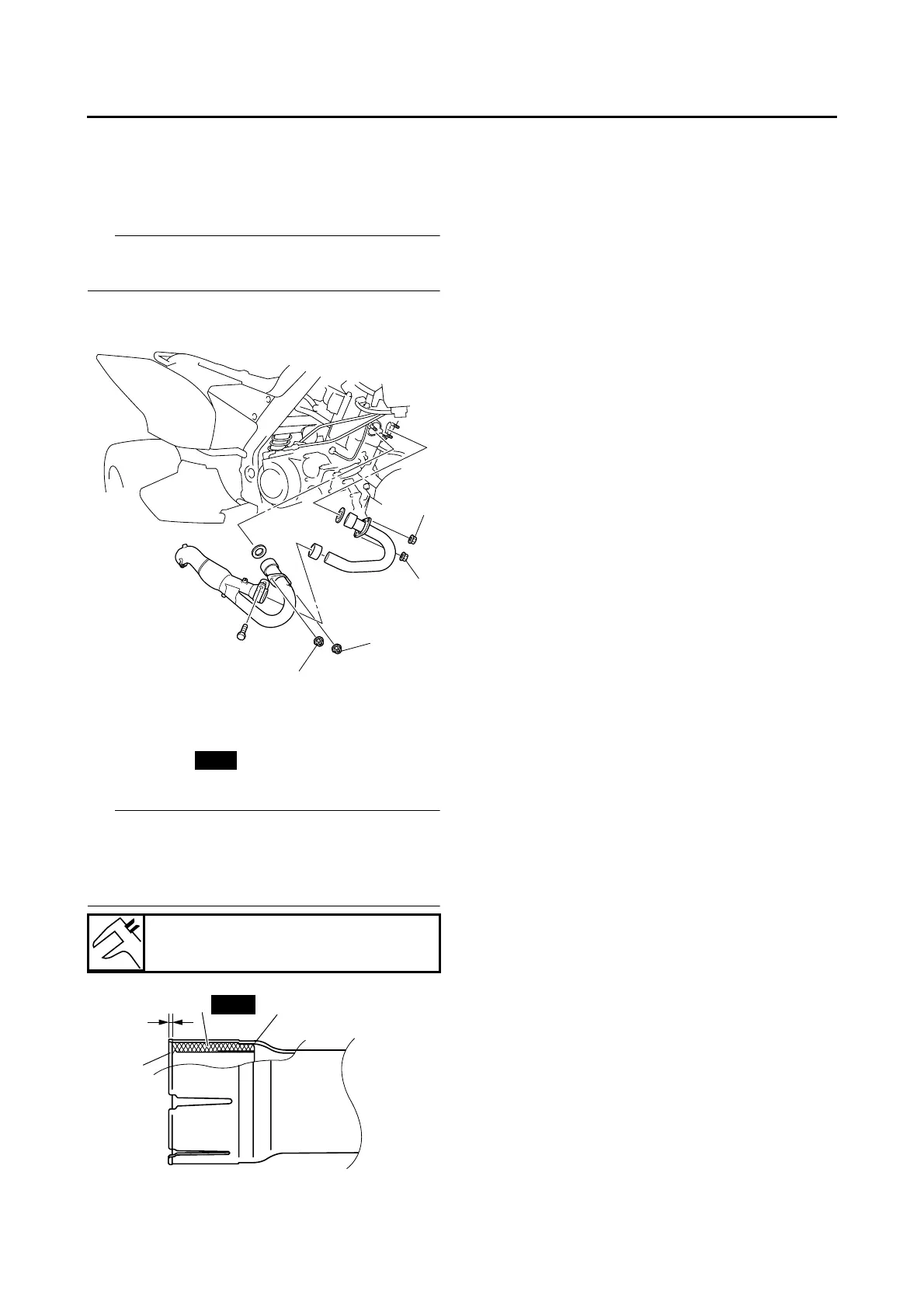

INSTALLING THE EXHAUST PIPES AND
MUFFLER
1. Tighten:
• Exhaust pipe nuts “1”, “2”, and “3”
T
IP
Tighten the exhaust pipe nuts in the order “1”,
“2”, “3”.
2. Install:
• Gasket “1”
(to muffler)
T
IP
Install the gasket with the chamfer “a”, located
on an inner rim of the gasket, and the chamfer
“b”, located on an outer rim of the gasket, as
shown.
Installed depth of gasket “c”
1.0–1.5 mm (0.04–0.06 in)
3
3
1
2
New
a
c
1
b
New
