STEERING STEM
4-45
EAS29540
STEERING STEM

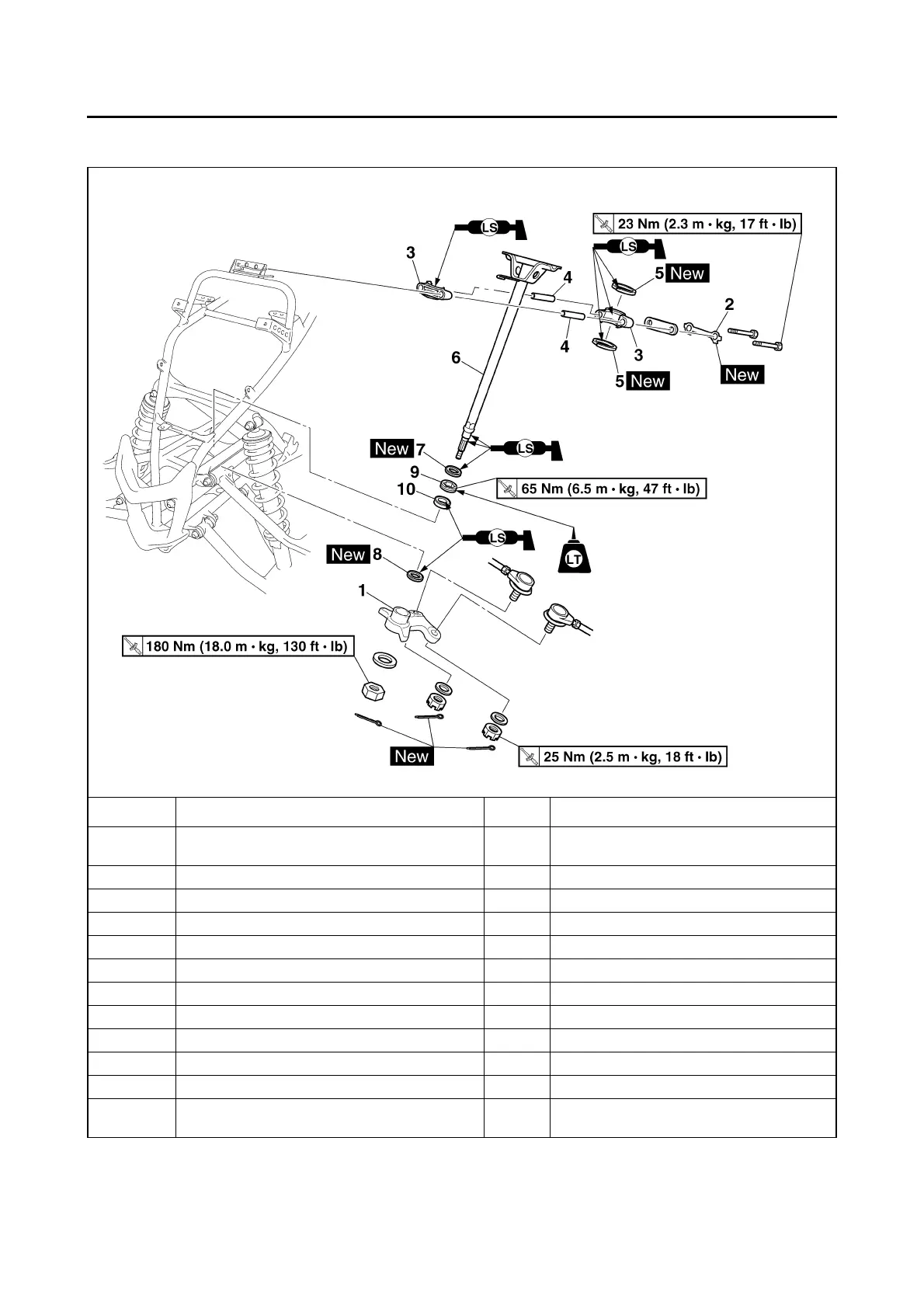

Removing the steering stem
Order Job/Parts to remove Q’ty Remarks
Front fender/fuel tank
Refer to “GENERAL CHASSIS” on page
4-1.
1 Pitman arm 1
2 Lock washer 1
3 Steering stem bushing 2
4 Spacer 2
5 Oil seal 2
6 Steering stem 1
7 Oil seal 1
8 Oil seal 1
9 Bearing retainer 1
10 Bearing 1
For installation, reverse the removal proce-
dure.
