SWINGARM
4-59
EAS23330
SWINGARM

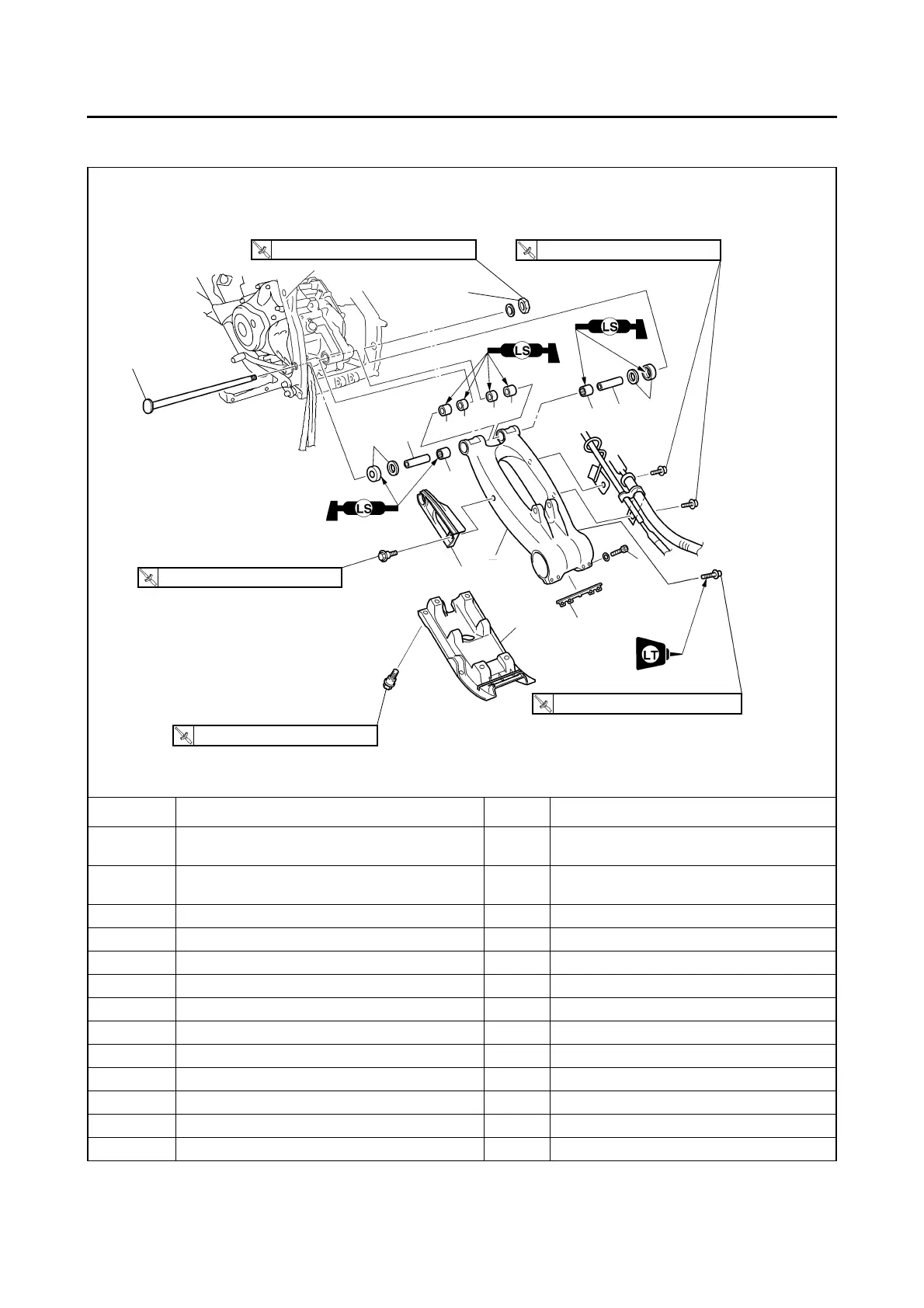

Removing the swingarm
Order Job/Parts to remove Q’ty Remarks
Rear axle hub
Refer to “REAR AXLE AND REAR AXLE
HUB” on page 4-12.
Rear shock absorber assembly
Refer to “REAR SHOCK ABSORBER AS-
SEMBLY” on page 4-55.
1 Rear axle pinch bolt 4
2 Dust seal 1
3 Swingarm skid plate 1
4 Drive chain guide 1 1
5 Pivot shaft nut 1
6 Pivot shaft 1
7 Swingarm 1
8 Dust cover/washer 2/2
9 Spacer 2
10 Oil seal 2
11 Bushing 2
7
3
2
(4)
1
6
4
8
9
12
11
11
10
10 12
9
8
5
100 Nm (10.0 m
•
kg, 72 ft
•
lb)
T
.R.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
.R.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
.R.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
.R.
55 Nm (5.5 m
•
kg, 40 ft
•
Ib)
T
.R.
