Yamaha Raptor 700R 2009 Service Manual

FRONT BRAKES
4-17
EAS22210
FRONT BRAKES

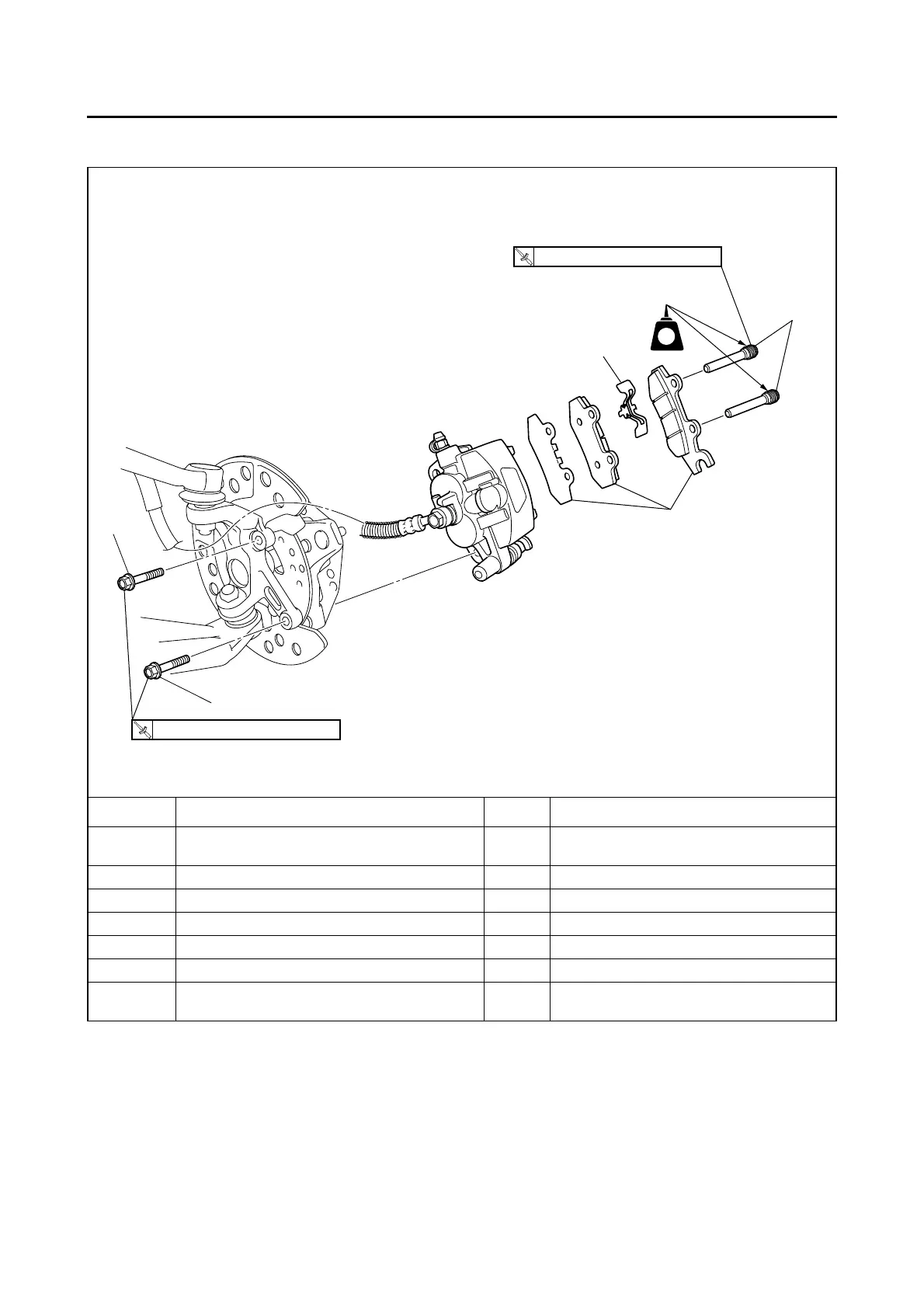

Removing the front brake pads
Order Job/Parts to remove Q’ty Remarks
The following procedure applies to both of
the front brake calipers.
Front wheel Refer to “FRONT WHEELS” on page 4-5.
1 Brake caliper bolt 2
2 Brake pad retaining bolt 2
3 Brake pad/pad shim 2/1
4 Brake pad spring 1
For installation, reverse the removal proce-
dure.
T
R
.
.
28 Nm (2.8 m kg, 20 ft Ib)
•
2
3
T
R
.
.
17 Nm (1.7 m
•
kg, 12 ft
•
Ib)
4
1
1
LT
