Yamaha Raptor 700R 2009 Service Manual

CLUTCH
5-46
EAS25170

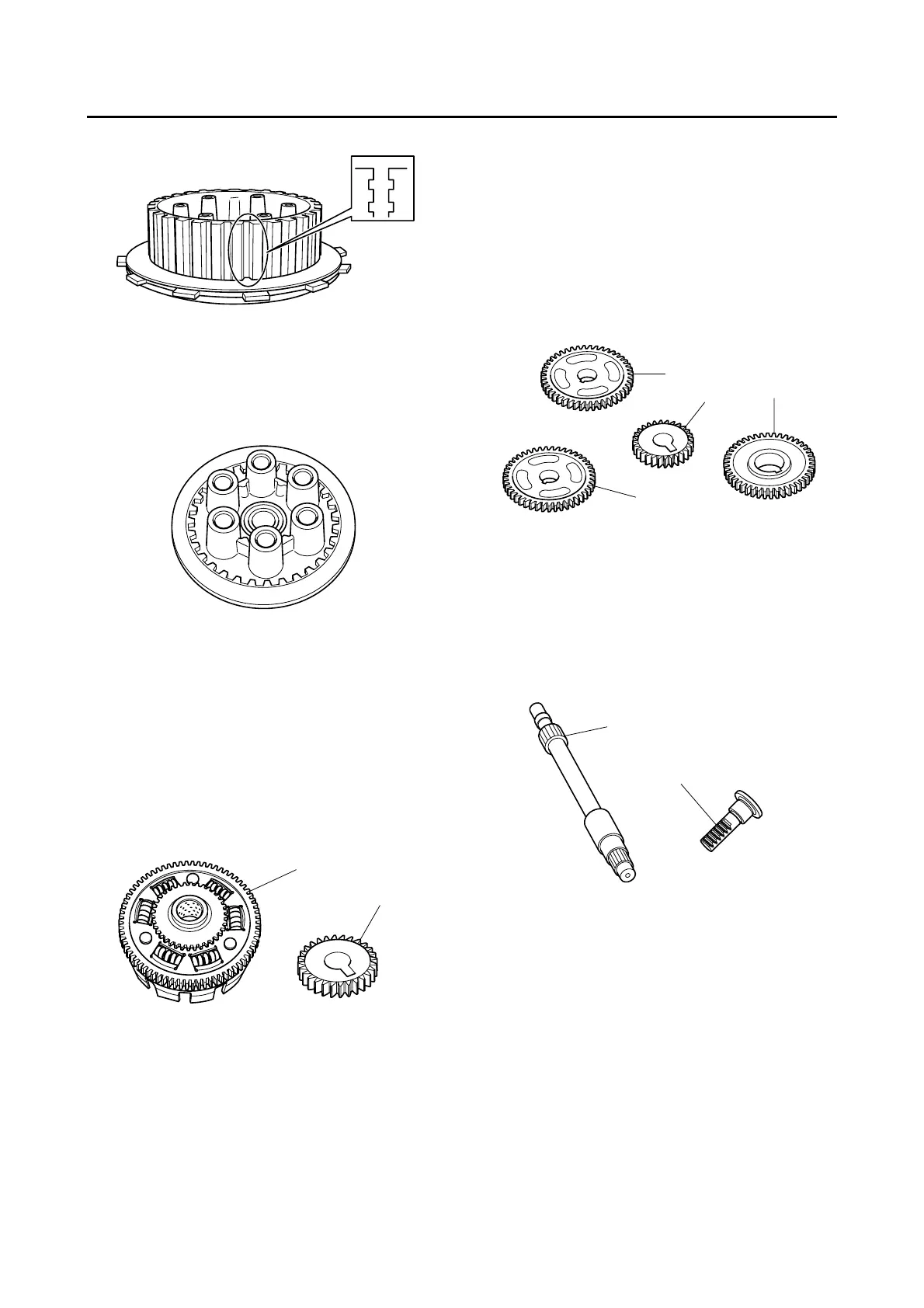

CHECKING THE PRESSURE PLATE
1. Check:
• Pressure plate
Cracks/damage → Replace.
EAS25200
CHECKING THE PRIMARY DRIVE GEARS
1. Check:
• Primary drive gear “1”
• Primary driven gear “2”
Damage/wear → Replace the primary drive
gear and clutch housing as a set.
Excessive noise during operation → Replace
the primary drive gear and clutch housing as
a set.
EAS1S3L031
CHECKING THE BALANCER DRIVE GEARS
1. Check:
• Balancer drive gear “1”
• Balancer driven gear 1 “2”
• Balancer driven gear 2 “3”
• Water pump drive gear “4”
Damage/wear → Replace the balancer drive
gear and balancer driven gear as a set.
Replace the water pump drive gear and water
pump driven gear as a set.
Excessive noise during operation → Replace
the balancer drive gear and balancer driven
gear as a set.
Replace the water pump drive gear and water
pump driven gear as a set.
EAS25220
CHECKING THE PULL LEVER SHAFT AND
PULL ROD
1. Check:
• Pull lever shaft pinion gear teeth “a”
• Pull rod teeth “b”
Damage/wear → Replace the pull rod and
pull lever shaft pinion gear as a set.
2. Check:
• Pull rod bearing
Damage/wear → Replace.
EAS1S3L032
INSTALLING THE PRIMARY DRIVE GEAR
AND BALANCER DRIVEN GEARS
1. Install:
• Balancer drive gear
• Primary drive gear
• Water pump drive gear
• Balancer driven gear 1
• Balancer driven gear 2
1
2
4
1
2
3
b
a
