Yamaha Raptor 700R 2009 Service Manual

RADIATOR
6-2
EAS26390

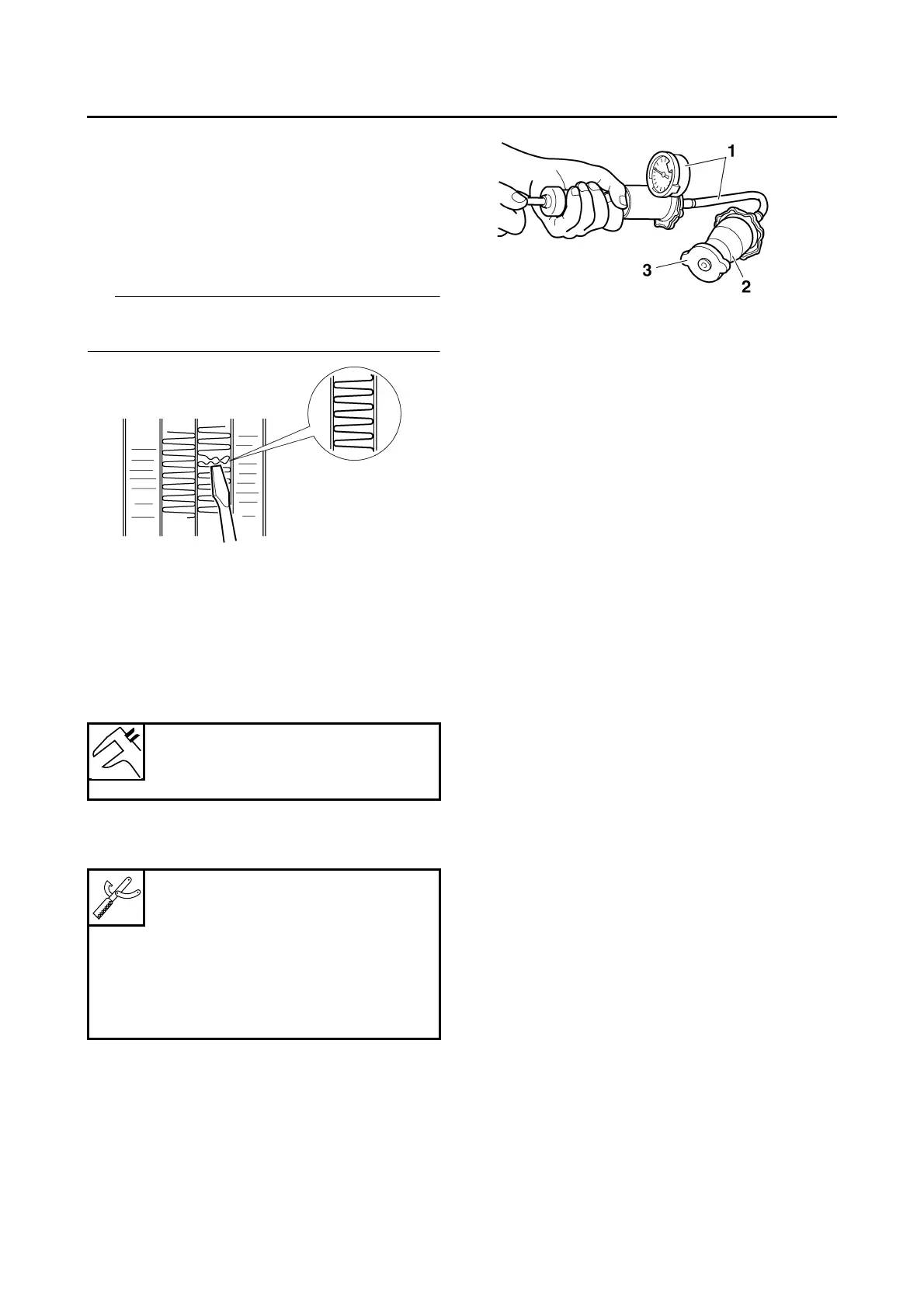

CHECKING THE RADIATOR
1. Check:
• Radiator fins
Obstruction → Clean.
Apply compressed air to the rear of the radia-
tor.
Damage → Repair or replace.
T
IP
Straighten any flattened fins with a thin, flat-head
screwdriver.
2. Check:
• Radiator hoses
• Radiator pipes
Cracks/damage → Replace.
3. Measure:
• Radiator cap opening pressure
Below the specified pressure → Replace the
radiator cap.
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Install the radiator cap tester “1” and radiator
cap tester adapter “2” to the radiator cap “3”.
b. Apply the specified pressure for ten seconds
and make sure there is no drop in pressure.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
4. Check:
• Radiator fan
Damage → Replace.
Malfunction → Check and repair.
Refer to “COOLING SYSTEM” on page 8-25.
EAS26400
INSTALLING THE RADIATOR
1. Fill:
• Cooling system
(with the specified amount of the recom-
mended coolant)
Refer to “CHANGING THE COOLANT” on
page 3-18.
2. Check:
• Cooling system
Leaks → Repair or replace any faulty part.
3. Measure:
• Radiator cap opening pressure
Below the specified pressure → Replace the
radiator cap.
Refer to “CHECKING THE RADIATOR” on
page 6-2.
Radiator cap opening pressure
93.3–122.7 kPa (0.9–1.2 kgf/cm²,
13.3–17.4 psi)
Radiator cap tester
90890-01325
Radiator pressure tester
YU-24460-01
Radiator cap tester adapter
90890-01352
Radiator pressure tester adapter
YU-33984
