Yamaha Raptor 700R 2009 Service Manual

CHASSIS
3-25
i. Repeat steps (e) to (h) until all of the air bub-
bles have disappeared from the brake fluid in
the plastic hose.
j. Tighten the bleed screw to specification.
k. Fill the brake fluid reservoir to the proper level
with the recommended brake fluid.
Refer to “CHECKING THE BRAKE FLUID
LEVEL” on page 3-21.
WARNING
EWA13110
After bleeding the hydraulic brake system,
check the brake operation.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS21370

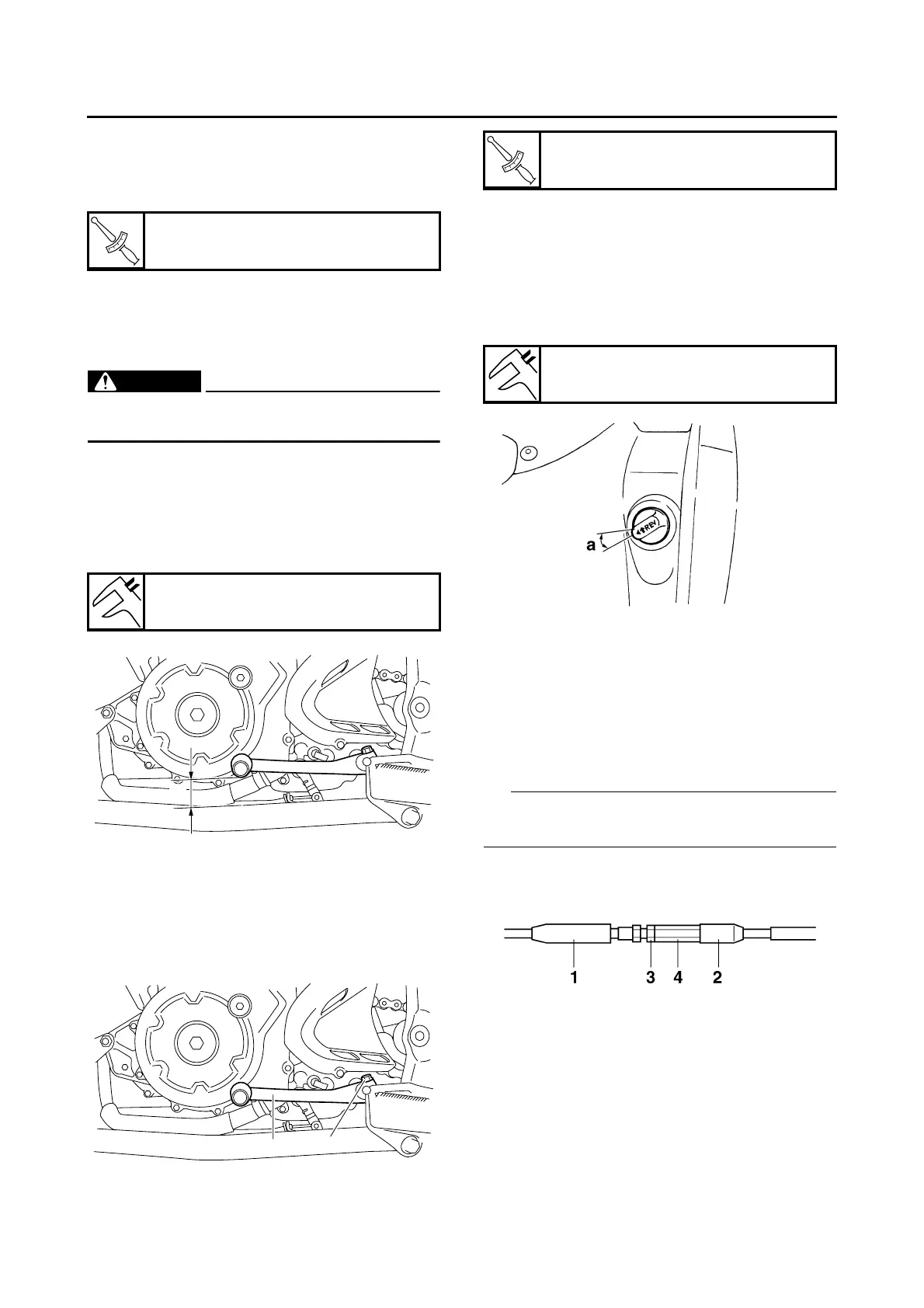

ADJUSTING THE SHIFT PEDAL
1. Measure:
• Shift pedal height “a”
Out of specification → Adjust.
2. Adjust:
• Shift pedal height
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Loosen the bolt “1”.
b. Remove the shift pedal “2”.
c. Install the shift pedal at the correct height.
d. Tighten the bolt to specification.
▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲▲▲
EAS29240
ADJUSTING THE REVERSE CONTROL
CABLE
1. Check:
• Reverse knob free play “a”
Out of specification → Adjust.
2. Adjust:
• Reverse knob free play
▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼▼▼
a. Slide back the boots “1” and “2”.
b. Loosen the locknut “3”.
c. Turn the adjusting nut “4” until the reverse
control cable “5” is taut or the length “a” is 33
mm (1.30 in).
T
IP
Be sure to hold the reverse shift lever “6” when
making this adjustment so that it does not move.
T
R
.
.
Bleed screw
6 Nm (0.6 m·kg, 4.3 ft·lb)
Shift pedal height
48 mm (1.89 in)
a
1
2
T
R
.
.
Shift pedal bolt
16 Nm (1.6 m·kg, 11 ft·lb)
Reverse knob free play
0 mm (0 in)
